Asetek Racing on your SimWerk.

Asetek Racing, formerly Asetek SimSports, makes direct-drive wheelbases, steering wheels and hydraulic pedals. SimWerk supplies the range by quote, ready to fit your SimWerk Core or SimWerk Grand.

  • Formerly Asetek SimSports
  • Direct-drive wheelbases in three tiers: Initium 5.5 N·m, Forte 18 N·m, Invicta 27 N·m
  • Every base uses the Asetek Racing Quick Release and is set up in the RaceHub software
  • Hydraulic T.H.O.R.P. brake that recreates the two-stage feel of a real race car brake
  • Fits the Core and the Grand
  • Ordering is by quote through SimWerk

23 products

The lineup.

Wheel Bases

Asetek direct-drive wheelbases in three tiers. Every base uses the Asetek Racing Quick Release and is set up through the RaceHub software.

How to choose
  1. Platform first. PlayStation: the T598 is the only base here that runs on it. Xbox: a MOZA R12 V2, R16 Ultra or R25 Ultra with the ESX wheel. PC: any of them.
  2. The wheel you want picks the brand. MOZA wheels need a MOZA base; Asetek wheels an Asetek base (the RaceView display wheels a Forte or Invicta); Thrustmaster wheels, including the Ferrari licensed SF-25 and 488 GT3, a Thrustmaster base. Cube Controls wheels and the Heusinkveld One go on a MOZA or Asetek Racing base with an adapter we add; Cube Controls wheels bolt straight to a VNM x Cube Controls base.
  3. Compare torque like with like. MOZA R9 and R12 are rated at peak, the Ultras sustained, Thrustmaster constant, Asetek Forte and Invicta at a level held for up to 40 s, and the Initium and the VNM x Cube Controls bases at max. 12 N·m peak is not 10 N·m constant, and more torque is headroom, not a setting you must run.
  4. Budget the path, not just the base. The five MOZA bases, from $299 to $899, share one wheel family. The Initium steps up to 8 N·m with the $89 Boost Kit.
  5. For shared rigs, check the stop. Asetek’s Torque OFF box, the T818’s force-feedback button, or MOZA’s E-stop port; hands-off protection on the R12 V2, R16 Ultra and R21 Ultra. Thrustmaster rates the T818 for home use, 21 and up.

Where Asetek Racing fits: Asetek publishes slew rate, holding time and slip-ring life, and puts a torque cut in the box on Forte and Invicta. PC only; you pay more per N·m than with MOZA.

How torque is rated. 12 N·m peak is not the same as 10 N·m constant. More torque is headroom, not a setting you must run.

Torque of every wheelbase we carry, by makerMOZAR9 V39R12 V212R16 Ultra16R21 Ultra21R25 Ultra25Asetek RacingInitium5.5 → 8 Boost KitForte18Invicta27ThrustmasterT5985 · peaks to 10T81810VNM x Cube ControlsElite18Supreme25Xtreme32sustained, constant or heldpeak or maxboost or short peaksmeasures its own output torque
Asetek Racing Forte and Invicta: held for up to 40 s.
How these features work (2)

Stopping the force. How each product cuts the force, for shared rigs and first-time drivers.

  • Torque OFF box in the box: Asetek Forte and Invicta.
  • Force-feedback off button on the base: Thrustmaster T818.
  • Start/Stop torque button on the wheel: Asetek Initium wheel.
  • E-stop port on every MOZA base, for the MOZA E-Stop switch.
  • MOZA E-Stop: cuts the force while pressed (USB or DASH port), or all power (E-STOP port).
  • Hands-Off Protection on the R12 V2, R16 Ultra and R21 Ultra: centers the wheel and damps oscillation when you let go.
  • MOZA HMA150: built-in E-stop; it lowers slowly on power loss.
  • EMC stop button in the box: VNM x Cube Controls bases.

Quick release and power. A wheel goes on the base family it was made for. Wheels on a standard hub use an adapter we add.

Which wheels go on which baseMOZAbase13wheelsAsetek Racingbase7wheelsThrustmasterbase5wheelsStandard hub + adapter we add
  • Through the quick release
  • USB cable
  • Wireless, battery

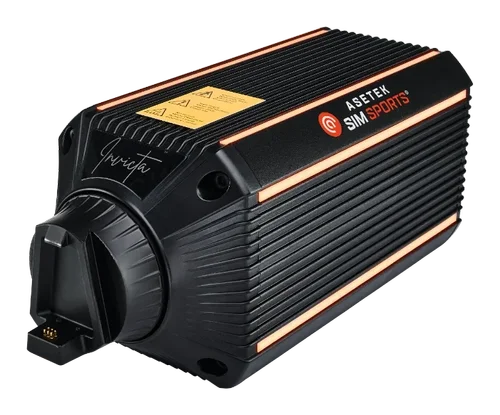

Asetek Invicta Wheelbase

Asetek Invicta Wheelbase

27 N·m Direct-Drive Wheelbase

$1,449

Asetek's flagship base with 27 N·m of peak torque and a 22-bit absolute encoder. Built for drivers who want maximum detail and headroom at the top of the range.

Specs
Torque
27 N·m peak/holding
Slew rate
9.4 N·m/ms peak
Encoder
22-bit absolute
Quick release
Asetek Racing Quick Release included
USB hub
5-port USB-C
Power supply
400 W
Weight
11.3 kg
Platform
PC (Windows 11)
What sets it apart
  • 27 N·m, held for up to 40 s, with a 9.4 N·m/ms slew rate.
  • Headroom: Asetek’s point is that running below the maximum keeps curb and texture detail clear instead of compressed at the top of the range.
  • Same torque-off box, 22-bit encoder, 200-million-rotation slip ring and USB-C hub as the Forte.

Good to know: 11.3 kg. Asetek says desk clamps and wheel stands are not suitable; it needs a rigid rig such as Core or Grand.

How torque is ratedStopping the forceQuick release and power

Add to a build →

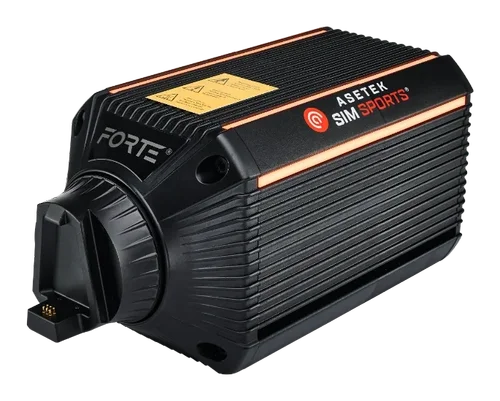

Asetek Forte Wheelbase

Asetek Forte Wheelbase

18 N·m Direct-Drive Wheelbase

$949

An 18 N·m direct-drive base with the same 22-bit encoder as the Invicta in a smaller, lighter housing. The sweet spot of the Asetek range for serious home and venue rigs.

Specs
Torque
18 N·m peak/holding
Slew rate
6.7 N·m/ms peak
Encoder
22-bit absolute (4,000,000 steps/rev)
Quick release
Asetek Racing Quick Release included
Power supply
400 W
Dimensions
133 × 132 × 293 mm (incl. QR)
Weight
8.5 kg
Platform
PC (Windows 10/11)
What sets it apart
  • Asetek publishes how fast torque rises: a 6.7 N·m/ms slew rate, and 18 N·m it can hold for up to 40 s.
  • A Torque OFF button box is included: one press cuts the force.
  • 22-bit encoder, a slip ring tested to 200 million rotations, and a 5-port USB-C hub.
  • The wheel releases with a paddle on the wheel; no cable, battery or wireless link to the wheel.

How torque is ratedStopping the forceQuick release and power

Add to a build →

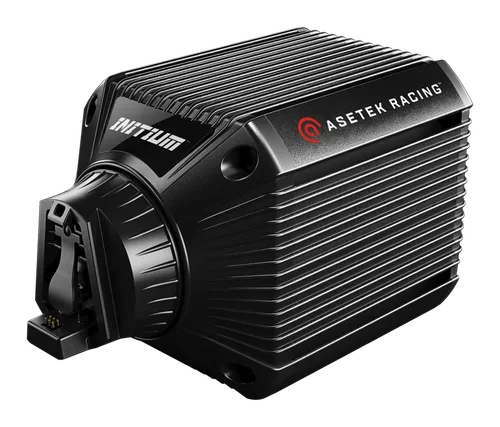

Asetek Initium Wheelbase (US)

Asetek Initium Wheelbase (US)

5.5 N·m Entry Direct-Drive Wheelbase

$349

An entry-level direct-drive base with 5.5 N·m of torque, upgradeable to 8 N·m with the Boost Kit. An affordable first step into direct drive.

Specs
Torque
5.5 N·m (8 N·m with Boost Kit)
Encoder
14-bit absolute
Power supply
96 W
Connection
USB-C
Mounting
4 × M6 T-nut bottom mount
Dimensions
133 × 132 × 235 mm
Weight
5.7 kg
Platform
PC
What sets it apart
  • Boost Kit: plug-in and tool-free, it takes the base from 5.5 to 8 N·m.
  • Desk clamp included (desks up to 45 mm thick); on a rig it bolts down with 4 × M6 T-nuts.
  • 5 peripheral ports, so Asetek pedals and controls plug into the base.
  • The lowest-priced way into Asetek’s quick release, which the Forte and Invicta bases share.

Good to know: 14-bit encoder, and it does not run the RaceView display wheels.

How torque is ratedQuick release and power

Add to a build →

Steering Wheels & Button Boxes

Wheels and button boxes that clip onto any Asetek base through the Asetek Racing Quick Release. Button boxes need a rim or handles, which are sold separately.

How to choose
  1. Your base decides the brand. MOZA on MOZA, Asetek on Asetek, Thrustmaster on Thrustmaster. Cube Controls and the Heusinkveld One use a standard hub: we add the adapter on MOZA or Asetek Racing bases; Cube Controls wheels bolt straight to a VNM x Cube Controls base. They are not offered on Thrustmaster.
  2. Console? Xbox: the MOZA ESX on a supported MOZA base. PlayStation: a Thrustmaster wheel on the T598; the GT Wheel adds PlayStation buttons and is mapped for you in Gran Turismo. Everything else is PC.
  3. The cars you drive set the rim shape. Formula, about 270–300 mm: open-wheel. Butterfly or D, 300–325 mm: GT. Round, 320–340 mm: road, rally and drift. The oval Hypercar: Le Mans prototypes. 400 mm: trucks.
  4. Screen or lights? Screens run from 2.85 in to 5.4 in. LED-only wheels often cost less and pair with a dash such as the MOZA CM2 or an on-screen overlay.
  5. Clutch and power. For standing starts, pick dual clutch paddles with a bite point. Wheels powered through the quick release never need charging; the wireless ones (Heusinkveld One, Cube F-PRO, F-CORE EVO, GT PRO V2, Mercedes-AMG edition) do.

Where Asetek Racing fits: Modular: one button box takes swappable GT rims or formula handles, with power and data through the quick release. PC only.

Rim shapes to scale. Outlines at true relative size.

Steering wheel rim shapes at true relative sizeFormulaButterflyClosed DRoundDishedOvalTruck100 mm
How these features work (2)

Screens and lights to scale. Each screen at its true diagonal. LED-only wheels often cost less and pair with a dash or an on-screen overlay.

Wheel screen sizes at true scale2.85 inround touch2.99 in4 intouch4.3 in5 intouch5.4 inOLED1 in

Dual clutch paddles. Hold one paddle at the bite point, release the other at the start.

How a dual clutch launch works, in three steps1LRoutBoth pulled2LRoutHold at bite3LRoutEase out, go
Illustrative.

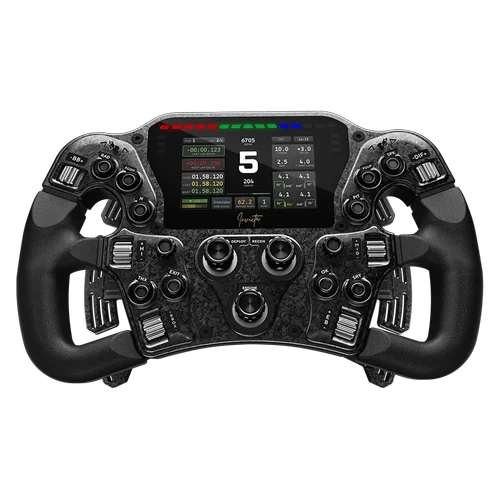

Asetek Invicta Formula Button Box

Asetek Invicta Formula Button Box

Formula Wheel Button Box with 4.3" Display

$1,299

A top-tier formula button box with a 4.3-inch display, 47 RGB LEDs and 144 programmable inputs on an aluminum and carbon body. Handles are sold separately.

Specs
Display
4.3" LCD, 800 × 480, 60 Hz
Inputs
144 programmable
Controls
12 buttons, 6 thumb wheels, 3 rotary encoders, 6 paddles
LEDs
47 addressable RGB
Materials
4 mm carbon front plate, anodized aluminum
Handles
Regular, XL, LMP or Suede (sold separately)
Compatibility
Asetek bases; 3rd-party bases via adapter
What sets it apart
  • Machined from a solid block of aluminum with a 4 mm carbon front plate; handbuilt in Denmark.
  • 144 inputs and 6 paddles: 2 shift, 2 clutch, 2 input.
  • 4.3 in 800 × 480, 60 Hz display, set up in RaceHub or SimHub.

Good to know: Touch is not enabled yet; Asetek plans it. Handles sold separately.

Screens and lights to scaleDual clutch paddlesQuick release and power

Add to a build →

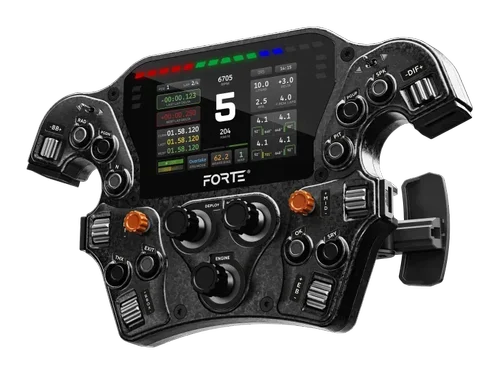

Asetek Forte Formula Pro

Asetek Forte Formula Pro

Formula Steering Wheel with 4.3" Display

$649

A formula wheel with a 4.3-inch touch display and 47 customizable RGB LEDs in a glass-fiber body with forged carbon finish. Supports telemetry through RaceHub and SimHub.

Specs
Display
4.3" LCD touch, 800 × 480, 60 Hz
Controls
10 buttons, 6 thumb encoders, 3 rotary encoders, 2 kinky switches, 2 rocker switches
Paddles
2 shift paddles
LEDs
47 addressable RGB
Diameter
300 mm (304 mm with XL/Suede handles)
Weight
1.16 kg
Quick release
Asetek Racing Quick Release; USB-C for third-party bases
What sets it apart
  • 4.3 in RaceView touch panel (800 × 480, 60 Hz): mix RaceHub presets with SimHub dashboards.
  • 78 aluminum inputs and 47 RGB lights; glass-fiber body with a forged-carbon finish, 1.16 kg.
  • USB-C for third-party quick releases.

Good to know: Handles sold separately. Needs a Forte or Invicta base, not the Initium.

Screens and lights to scaleQuick release and power

Add to a build →

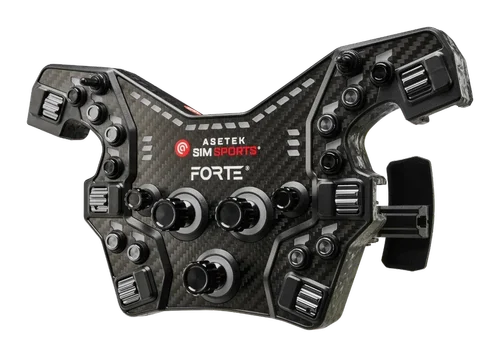

Asetek Forte Formula Steering Wheel

Asetek Forte Formula Steering Wheel

Formula Steering Wheel

$529

A carbon-composite formula wheel with RGB LEDs, magnetic shift paddles and a full set of buttons and encoders. Fully mappable in RaceHub.

Specs
LEDs
49 programmable aRGB
Controls
12 buttons, 6 encoders, 2 paddles
Material
Carbon fiber composite with woven carbon face
Diameter
290–294 mm (by handle type)
Platform
PC (Windows 10/11)
What sets it apart
  • Handles included; a metal spider lets you swap them later (XL available).
  • 128 inputs and 49 RGB lights.
  • Contactless magnetic paddles, upgradeable to dual clutch plus 2 mappable paddles.

Dual clutch paddlesRim shapes to scaleQuick release and power

Add to a build →

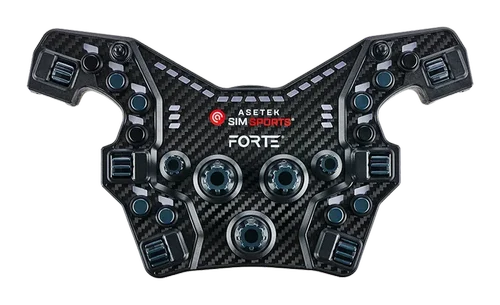

Asetek Forte Formula Button Box (B/G/O)

Asetek Forte Formula Button Box (B/G/O)

Formula Button Box, Color Edition

$479

The Forte formula button box in a color edition. Pair it with Asetek handles or a rim to complete the wheel.

Add to a build →

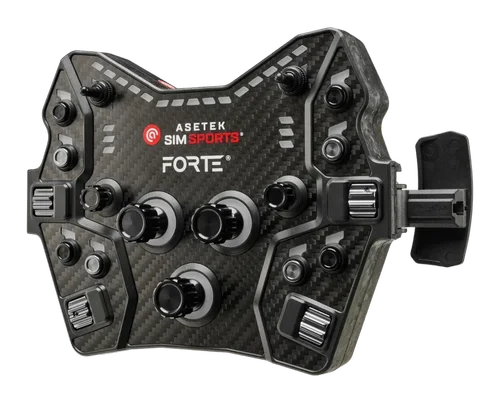

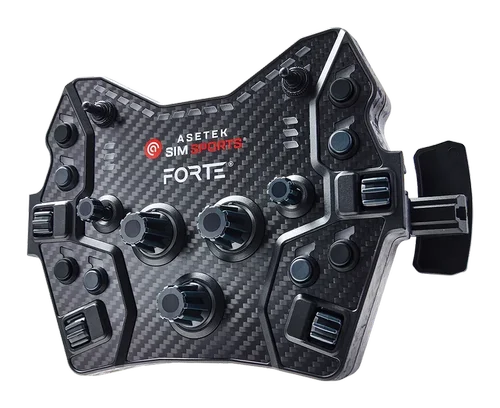

Asetek Forte GT Button Box

Asetek Forte GT Button Box

GT Button Box

$329

A GT-layout button box for the Forte ecosystem. Pair it with an Asetek round or D-shaped rim.

What sets it apart
  • Takes all 7 Asetek GT rims: round, closed D, open D or dished.
  • Contactless magnetic paddles; dual clutch optional.
  • 8 buttons, 3 twelve-position rotaries, 4 thumb encoders, 32 RGB lights.

Rim shapes to scaleQuick release and power

Add to a build →
Asetek Forte GT Button Box (B/G/O)

Asetek Forte GT Button Box (B/G/O)

GT Button Box, Color Edition

$379

The Forte GT button box in a color edition. Pair it with an Asetek round or D-shaped rim.

Add to a build →

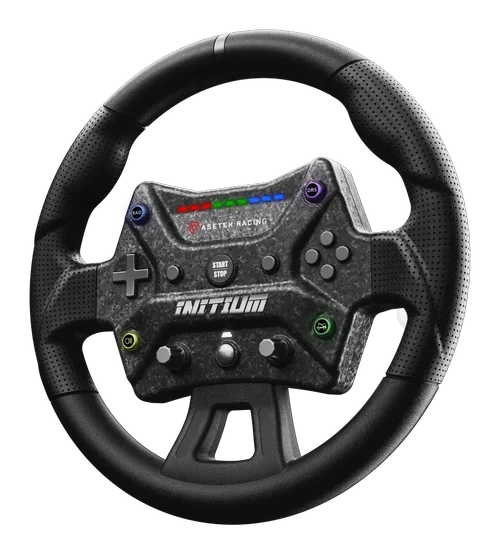

Asetek Initium Steering Wheel (PC)

Asetek Initium Steering Wheel (PC)

Entry Steering Wheel for PC

$149

A 300 mm wheel with 21 inputs and reactive RGB rev LEDs that connects cable-free through the Asetek Racing Quick Release. The natural partner for the Initium base.

Specs
Diameter
300 mm
Inputs
21 (11 buttons, D-pad, 2 encoders, 2 paddles)
LEDs
9 reactive aRGB rev LEDs + 4 backlit buttons
Connection
Asetek Racing Quick Release (cable-free)
Platform
PC
What sets it apart
  • A center Start/Stop button cuts the base’s torque at once.
  • Connects through the quick release: no cable, battery or wireless link.
  • 300 mm round textured rim, 21 inputs, magnetic paddles, 9 RGB rev lights.

Quick release and powerStopping the forceRim shapes to scale

Add to a build →
Asetek Initium Steering Wheel (Xbox)

Asetek Initium Steering Wheel (Xbox)

Entry Steering Wheel for Xbox & PC

$169

The Initium wheel in its Xbox-compatible version.

Specs
Platform
Xbox & PC
Add to a build →

Pedals

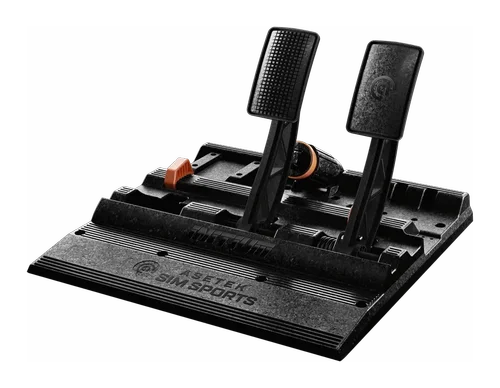

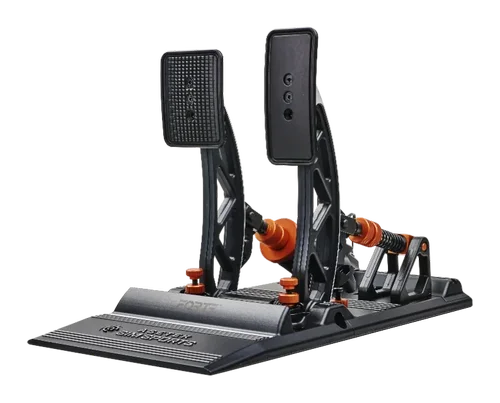

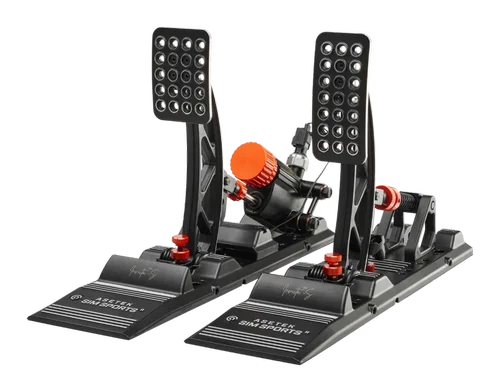

Asetek pedals range from Hall-sensor entry sets to the hydraulic T.H.O.R.P. brake, which recreates the two-stage feel of a real race car brake. S-Series sets split brake and throttle into separate adjustable units.

How to choose
  1. What do you play on? PlayStation: the Raceline Pedals III LC through the T598. Xbox: MOZA CRP2 through a MOZA base, depending on the game. PC: all of them; Asetek, Heusinkveld, the mBooster and the Cube Controls SP01 Core are PC only.
  2. Compare brake force at the pedal, not the load-cell size. Heusinkveld Sprint: up to 65 kg (120 kg cell). Heusinkveld Ultimate+: up to 140 kg (200 kg cell). Thrustmaster: 25–100 kg. Asetek Forte and Invicta: up to about 180 kg. MOZA states the cell range (SRP2 0–100 kg, CRP2 0–200 kg), not the force at the pedal.
  3. Pick the brake feel. Load cell with springs or elastomers: MOZA, Thrustmaster. Two-stage with a hard wall: Asetek Forte. A spring, then rubbers that firm up: Heusinkveld Sprint. Real hydraulic pressure: Asetek Invicta. Hydraulic damping: Heusinkveld Ultimate+. Feel set in software: MOZA mBooster.
  4. Want to feel ABS in your foot? The PHF kit ($39) vibrates SRP2 or CRP2 pedals; the mBooster moves the pedal itself. Nothing else here does this.
  5. Clutch and layout. Three pedals in the box: Thrustmaster, Sprint 3, Ultimate+ 3. Add a clutch later: MOZA, Asetek S-Series and T.H.O.R.P. II, Heusinkveld. Separate pedal units: Asetek S-Series. Hanging pedals: the CRP2 inversion kit. Upgrade later: the Initium kits.

Where Asetek Racing fits: From the $119 Initium with upgrade kits to the two-stage Forte and the hydraulic Invicta. PC only.

Hydraulic brake. A real hydraulic line: an automotive pressure sensor reads 0–100 bar.

Force against travel: hydraulicForcePedal travel →up to 180 kgsoft stagehydraulicreadspressurepedal → master → slave → elastomer
Illustrative shape.
How these features work (3)

Clutch feel. Force rises, then eases off toward the end of travel, like a real clutch’s spring.

Force against travel: clutchForceClutch travel →peak force
Illustrative shape.

Two-stage brake. A soft start (the pad-to-disc gap), then a hard wall. The sensor keeps reading through the wall, so you can trail-brake on it.

Force against travel: two-stage load cellForcePedal travel →up to 180 kgsoft stagehard stagereadsforce
Illustrative shape.

Force and travel. A position sensor reads how far the pedal moves; a load cell reads how hard you press. Your leg repeats a pressure far better than a position.

Force against travel: position sensorForcePedal travel →readsposition
Illustrative shape.

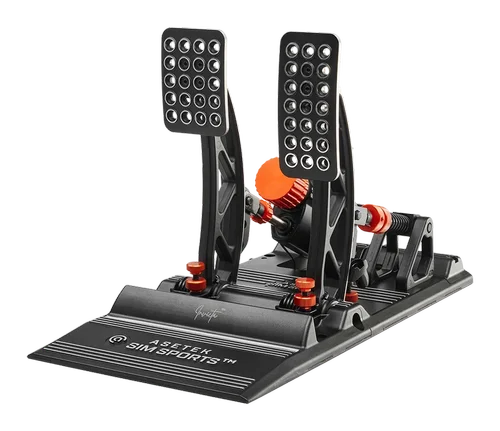

Asetek Invicta Pedals T.H.O.R.P. II

Asetek Invicta Pedals T.H.O.R.P. II

Hydraulic Brake + Throttle

$829

A hydraulic two-stage brake with interchangeable elastomers and adjustable travel, paired with a Hall-sensor throttle. The II version adds up to 40% more travel and front-access adjustment.

Specs
Pedals
Brake + throttle (clutch sold separately)
Brake
T.H.O.R.P. II hydraulic, 5 elastomers
Max brake force
100 bar / ~180 kg at pedal
Sensors
Automotive pressure sensor; 16-bit Hall throttle
Materials
Anodized aluminum, forged brake cylinder
Weight
6 kg
Connection
USB-C to PC
What sets it apart
  • T.H.O.R.P. II: up to 40% longer travel, and the second stage is reached with less force.
  • Adjust from the front; 5 elastomers, a physical stop and an expansion chamber.
  • Automotive-grade pressure sensor, 0–100 bar; takes the Invicta clutch.

Hydraulic brake

Add to a build →
Asetek Invicta S-Series T.H.O.R.P. II

Asetek Invicta S-Series T.H.O.R.P. II

Hydraulic Brake + Throttle, Separate Units

$879

The Invicta T.H.O.R.P. II brake and throttle as separate units, so pedal spacing can be set freely on the rig.

What sets it apart
  • T.H.O.R.P. II: up to 40% longer travel, and the second stage is reached with less force.
  • Separate units: set the distance between throttle and brake up to 400 mm, with one cable.
  • Takes the Invicta clutch.

Hydraulic brake

Add to a build →
Asetek Invicta Pedals T.H.O.R.P. I

Asetek Invicta Pedals T.H.O.R.P. I

Hydraulic Brake + Throttle

$649

The original Invicta hydraulic T.H.O.R.P. brake with throttle.

What sets it apart
  • Hydraulic T.H.O.R.P.: a slave cylinder compresses an elastomer that stands in for the disc, caliper and pads.
  • An automotive-grade pressure sensor reads 0–100 bar; 100 bar is about 180 kg at the pedal plate.
  • 16-bit Hall-effect throttle; the pedal arm is designed for 200 kg and tested to 1,000,000 activations.

Hydraulic brake

Add to a build →
Asetek Invicta S-Series T.H.O.R.P. I

Asetek Invicta S-Series T.H.O.R.P. I

Hydraulic Brake + Throttle, Separate Units

$699

The original Invicta T.H.O.R.P. brake and throttle as separate units.

What sets it apart
  • The same T.H.O.R.P. hydraulic brake and 0–100 bar pressure sensor as the Invicta pedals.
  • Separate brake and throttle units: you set the distance between them, and they can mount inverted.
  • Takes the Invicta clutch.

Hydraulic brake

Add to a build →

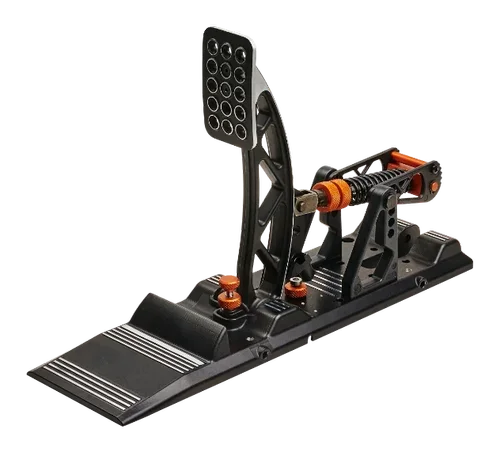

Asetek Invicta Clutch

Asetek Invicta Clutch

Add-on Clutch Pedal

$259

An add-on clutch pedal for Invicta pedal sets.

What sets it apart
  • Spring-loaded rebound modeled on a real slave cylinder and release bearing; 4 mechanical curve settings.
  • 16-bit contactless Hall sensor; bite point and deadzones set in RaceHub.
  • Die-cast aluminum, 1.6 kg; Invicta and Forte face plates included.

Clutch feel

Get a quote →
Asetek Forte Pedal Set

Asetek Forte Pedal Set

Load Cell Brake + Throttle

$479

A mid-range pedal set with a load-cell brake and Hall-sensor throttle.

What sets it apart
  • M.L.C.P.C. two-stage cylinder: a soft stage, then a hard stage like a real race car brake, without going hydraulic.
  • Up to 180 kg at the pedal plate; about 4,000 measuring points in the 12 mm before the second stage.
  • Anodized aluminum; 2 elastomers in the box; 16-bit Hall-effect throttle.

Two-stage brake

Add to a build →

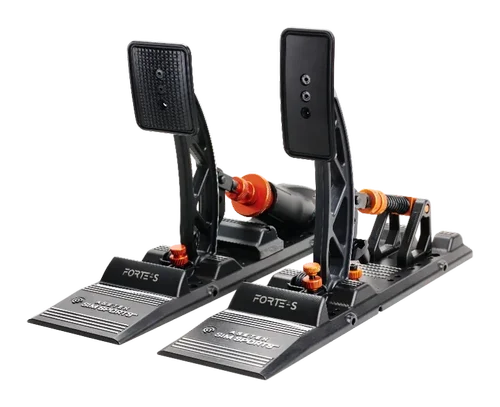

Asetek Forte S-Series

Asetek Forte S-Series

Load Cell Brake + Throttle, Separate Units

$529

Separate load-cell brake and Hall throttle units with a two-stage brake feel and adjustable spacing. Machined, anodized aluminum throughout.

Specs
Max brake force
Up to 180 kg at pedal
Brake
Two-stage M.L.C.P.C. load cell
Throttle
16-bit magnetic Hall sensor
Spacing
250–350 mm, adjustable
Material
Anodized, CNC-machined aluminum
Weight
3 kg
Connection
USB to PC
What sets it apart
  • Same two-stage load-cell brake as the Forte set, as separate units spaced 250–350 mm.
  • Adjust hardness, travel, stops and throttle curve; up to 180 kg at the pedal plate.
  • Takes the Invicta clutch.

Two-stage brake

Add to a build →
Asetek Initium Pedals

Asetek Initium Pedals

Hall-Sensor Brake + Throttle

$119

An entry pedal set with Hall sensors on brake and throttle and a glass-fiber reinforced body. Upgradeable later to load-cell or hydraulic brake kits.

Specs
Sensors
Hall effect (brake & throttle)
Material
Glass-fiber reinforced composite
Max force
140 kg
Modes
Floor or cockpit
Dimensions
370 × 263 × 253 mm
Weight
2.9 kg
Connection
USB-C or CAN bus
What sets it apart
  • Upgrade in place: Asetek sells a load-cell brake kit and a hydraulic brake kit for it, plus throttle and clutch add-ons.
  • Floor or cockpit mode; glass-fiber reinforced composite body that takes up to 140 kg of force.
  • Deadzones, pedal maps and calibration in RaceHub.

Good to know: The stock brake reads pedal position (a Hall sensor), not pressure, until you fit the load-cell kit.

Force and travel

Add to a build →

Bundles

Complete wheel, base and pedal packages.

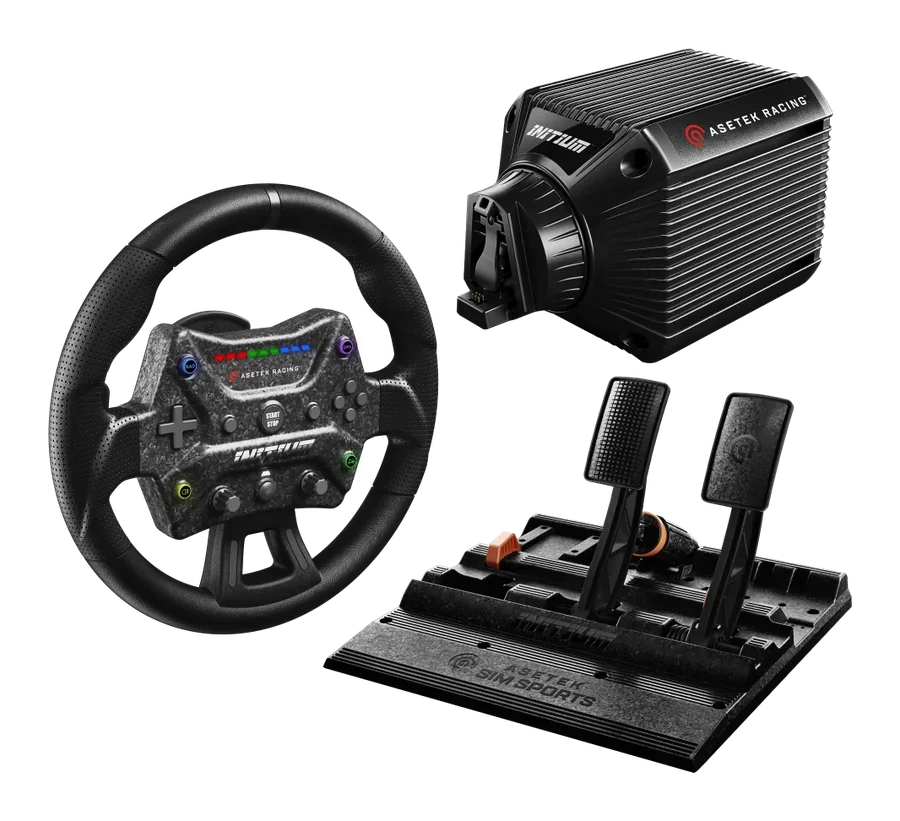

Asetek Initium Racing Bundle (PC, US)

Asetek Initium Racing Bundle (PC, US)

Base + Wheel + Pedals

$599

Everything needed to start: the Initium 5.5 N·m direct-drive base, Initium PC wheel, Initium pedals and a table clamp.

Specs
Includes
Initium base (US), Initium Steering Wheel (PC), Initium Pedals, table clamp, cables, shifter paddles
Get a quote →
Asetek Initium Racing Bundle (Xbox)

Asetek Initium Racing Bundle (Xbox)

Base + Wheel + Pedals for Xbox

$619

The Initium bundle with the Xbox-compatible wheel.

Get a quote →

Shifters & Handbrakes

Add-on controls from Asetek Racing.

How to choose

How to choose a shifter

  1. Your cars. H-pattern for road, classic and trucks: the HGP. Sequential for GT and rally: the SGP, MagShift and MagShift Mini. Both: the Asetek Dual Mode and the TH8A.
  2. Feel. A spring or damper you tune: the SGP damper, TH8A resistance, Asetek throw length. A magnetic click with a set force up to 11 kg: Heusinkveld.
  3. Console. The TH8A, through the T598 on PlayStation. The rest are PC.
  4. Space. The MagShift Mini is the compact one, the SGP mounts forward or reversed, and the Asetek fits left- or right-hand drive.

Where Asetek Racing fits: One unit for H-pattern and sequential, with an adjustable throw.

How to choose a handbrake

  1. Force or position. A load cell reads how hard you pull: Asetek, Heusinkveld. The MOZA HBP and the Thrustmaster TSS read how far the lever moves.
  2. Double duty. The TSS is also a sequential shifter; the Asetek has a digital (button) mode.
  3. Console. The TSS only, through the T598 on PlayStation.
  4. Mounting. All four mount vertically or horizontally. Heusinkveld adds 26° of fine tuning; Asetek fits left- or right-hand drive.

Where Asetek Racing fits: 200 kg load cell; analog or digital (button) mode.

Handbrake: load cell. Reads how hard you pull, not how far the lever moves.

Force against travel: handbrake, load cellForceLever travel →readsforce
200 kg load cell. Illustrative shape.

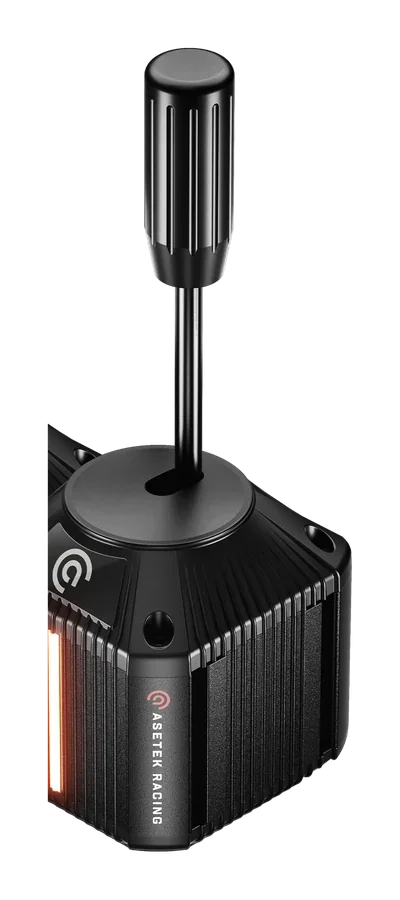

Asetek Load Cell Handbrake

Asetek Load Cell Handbrake

Load Cell Handbrake

$179

A load-cell handbrake for rally and drift.

Specs
Load cell
200 kg, 16-bit
Resistance
Two-stage: tunable elastomer and spring stack
Modes
Analog or digital (button)
Mounting
4 × M6 T-nuts; left- or right-hand drive
Size
133 × 132 × 360 mm, 2.5 kg
Connection
USB-C to PC
What sets it apart
  • A 200 kg, 16-bit load cell measures pull force, not lever position.
  • Two-stage resistance from tunable elastomers and springs; analog or digital (button) mode.
  • Left- or right-hand drive; tested to 1,000,000 cycles.

Handbrake: load cell

Add to a build →

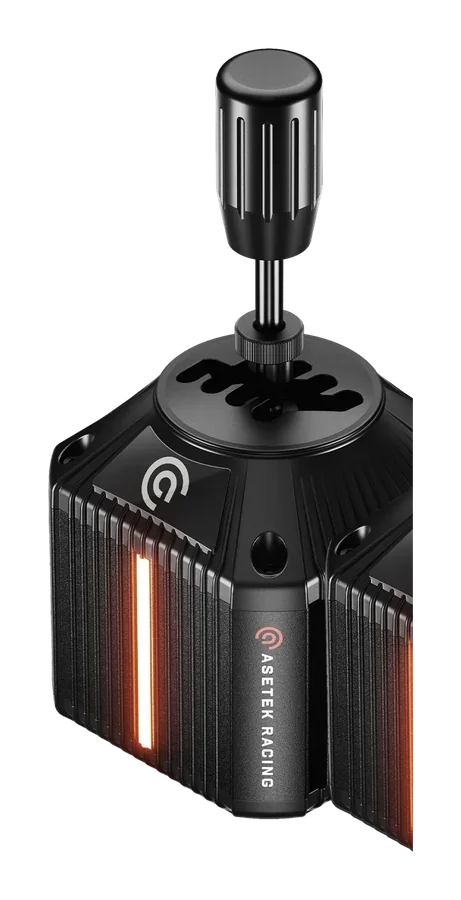

Asetek Dual Mode Shifter

Asetek Dual Mode Shifter

H-Pattern / Sequential Shifter

$219

A shifter that switches between H-pattern and sequential modes.

Specs
Modes
H-pattern (7 + reverse) or sequential
Sensors
Hall effect
Pattern length
Adjustable, 30–69 mm
Mounting
4 × M6 T-nuts; left- or right-hand drive
Size
133 × 132 × 290 mm, 1.9 kg
Connection
USB-C to PC
What sets it apart
  • 7+R H-pattern or sequential from one unit.
  • Pattern length adjustable from 30 to 69 mm; mounts for left- or right-hand drive.
  • Hall-effect sensors; tested for 300,000 shift cycles.
Add to a build →

Prices in USD, MSRP. Subject to change. Taxes and shipping not included. Ordering is by quote: order any item, or list the item names or SKUs in the contact form.

By quote

Accessories and upgrades.

Order any of these with your rig: list the item names or SKUs in the contact form.

Initium upgrades

6 items
ItemSKUPrice
Initium 8 N·m Boost Kit40-023-0023002$89
Initium Clutch Pedal Upgrade – Stage 140-014-0014001$39
Initium Clutch Upgrade Kit – Stage 240-014-0014002$119
Initium Throttle Upgrade Kit40-014-0014003$119
Initium Load Cell Brake Upgrade Kit40-014-0014004$119
Initium T.H.O.R.P. II Upgrade Kit40-014-0014005$329

Rims & handles

11 items
ItemSKUPrice
Closed D Black Leather Rim40-035-0035012$109
Closed D Orange Leather Rim40-035-0035013$109
Open D Black Leather Rim40-035-0035014$109
Open D Black Suede Rim40-035-0035015$109
Round Comfort+ Rim40-035-0035016$149
Round Black Leather Rim40-035-0035017$109
Dished Suede Rim40-035-0035029$149
Formula Regular Handles40-035-0035021$89
Formula Regular Handles with Suede40-035-0035022$89
LMP Handles40-035-0035020$89
XL Handles40-035-0035005$109

Wheel accessories

7 items
ItemSKUPrice
Clutch Paddles40-035-0035002$39
Magnetic Input Paddles40-035-0035003$39
Steering Wheel Button Color Kit40-035-0035018$39
Aluminum Button Color Kit40-035-0035031$89
Carbon Paddles Kit40-035-0035019$149
Steering Wheel Wall Mount40-035-0035001$19
Button Label Sticker Sheet – Transparent40-035-0035008$19

Quick release & adapters

8 items
ItemSKUPrice
Universal QR Adapter – USB-A40-035-0035033$79
Invicta QR Adapter – USB-A40-035-0035024$129
Invicta QR Adapter – USB-C40-035-0035030$129
Third-Party Wheelbase Adapter40-035-0035028$129
Third-Party QR Adapter Plate40-035-0035032$39
QR Wheelbase Extension40-035-0035025$219
QR Adapter Tube, 96 mm40-035-0035026$39
QR Adapter Tube, 146 mm40-035-0035027$39

Pedal accessories

7 items
ItemSKUPrice
Hydraulic Brake Upgrade Kit40-013-0013004$349
Elastomer Kit40-012-0012001$49
Firm Throttle Kit40-012-0012002$19
Invicta Long Travel Kit40-012-0000001$15.99
Invicta Pedal Face Plates40-011-0000002$39
Forte Pedal Face Plates40-011-0000001$39
Universal Footrest40-011-0000005$39

Base mounts

5 items
ItemSKUPrice
Front Mount40-022-0022004$149
Bottom Mount40-022-0022001$59
Wheelbase Mount with Tilt40-022-0022007$59
Front Mount for 70 mm Side Mounting40-022-0022011$39
La Prima Wheelbase Boost Kit40-023-0023001$149

Returns and warranty

Bought it from SimWerk? Contact us first.

No refunds, exchanges or store credit for a change of mind. If an Asetek product you bought from us has a quality problem, contact us first. We'll repair, replace or refund it as the law or the applicable warranty requires.

Ask us before you order how Asetek's warranty applies to items bought through SimWerk. Quality problems are handled under this policy either way.

Returns & WarrantyTerms of Sale

Questions

Do Asetek Racing, Heusinkveld, Thrustmaster and Cube Controls parts fit SimWerk rigs?

Yes. MOZA, Asetek Racing, Heusinkveld and Thrustmaster hardware and the Cube Controls wheels fit both the SimWerk Core and the SimWerk Grand. For the VNM x Cube Controls wheelbases and the Cube Controls SP01 Core pedals, we confirm the mounting for your chassis in your quote.

How do I order?

Ordering is by quote. Build your rig in the configurator and send it to us, or send the contact form or email info@simwerkus.com with the items you want. We'll confirm lead time and a final quote. Our Returns & Warranty policy applies to every order.

What is your return policy?

We don't give refunds, exchanges or store credit for a change of mind: once your order is delivered, all sales are final except for quality problems. If anything you buy from us arrives damaged, is defective or doesn't work as it should, or isn't what your quote lists, contact us. We'll repair, replace or refund it as the law or the applicable warranty requires. This covers everything we sell, including hardware from other brands. The full policy is under Returns & Warranty on our Support page.

Spec it on your rig.

Add Asetek Racing gear to a SimWerk build and see the total as you go. Ordering is by quote.

Build yoursAll hardware
