Heusinkveld Ultimate+ 3-Pedal Set (Black)
Load Cell Throttle, Brake & Clutch
$1,584Add to a build →
Partner brand · Hardware
Heusinkveld
Load-cell pedals, magnetic shifters, a load-cell handbrake and the wireless Heusinkveld One wheel. Available through SimWerk, ready to fit your SimWerk Core or SimWerk Grand.
Partner brand
Featured
Where to start.
Heusinkveld Sprint 2-Pedal Set
Load Cell Throttle & Brake
$600Add to a build →
Heusinkveld MagShift
GT Sequential Shifter
$436Add to a build →
Heusinkveld One
Wireless Steering Wheel
$655Add to a build →
Partner brand
Heusinkveld on your SimWerk.
Heusinkveld builds load-cell pedals, magnetic shifters, a load-cell handbrake and the wireless Heusinkveld One wheel. SimWerk supplies the range by quote, ready to fit your SimWerk Core or SimWerk Grand.
- Load-cell pedals from the Netherlands; brake feel, travel and output curves adjust in SmartControl
- Magnetic shifters with adjustable shift force and wear-free sensors
- Load-cell handbrake for rally and drift
- Heusinkveld One: a wireless wheel of about 1 kg
- Fits the Core and the Grand
- Ordering is by quote through SimWerk
10 products
The lineup.
Pedals
Load-cell pedals from the Netherlands. Brake feel, travel and output curves are all adjustable, with SmartControl software for profiles.
How to choose
- What do you play on? PlayStation: the Raceline Pedals III LC through the T598. Xbox: MOZA CRP2 through a MOZA base, depending on the game. PC: all of them; Asetek, Heusinkveld, the mBooster and the Cube Controls SP01 Core are PC only.
- Compare brake force at the pedal, not the load-cell size. Heusinkveld Sprint: up to 65 kg (120 kg cell). Heusinkveld Ultimate+: up to 140 kg (200 kg cell). Thrustmaster: 25–100 kg. Asetek Forte and Invicta: up to about 180 kg. MOZA states the cell range (SRP2 0–100 kg, CRP2 0–200 kg), not the force at the pedal.
- Pick the brake feel. Load cell with springs or elastomers: MOZA, Thrustmaster. Two-stage with a hard wall: Asetek Forte. A spring, then rubbers that firm up: Heusinkveld Sprint. Real hydraulic pressure: Asetek Invicta. Hydraulic damping: Heusinkveld Ultimate+. Feel set in software: MOZA mBooster.
- Want to feel ABS in your foot? The PHF kit ($39) vibrates SRP2 or CRP2 pedals; the mBooster moves the pedal itself. Nothing else here does this.
- Clutch and layout. Three pedals in the box: Thrustmaster, Sprint 3, Ultimate+ 3. Add a clutch later: MOZA, Asetek S-Series and T.H.O.R.P. II, Heusinkveld. Separate pedal units: Asetek S-Series. Hanging pedals: the CRP2 inversion kit. Upgrade later: the Initium kits.
Where Heusinkveld fits: Set the brake by force; SmartControl saves it on the pedals. Ultimate+ adds hydraulic dampers. PC only.
Hydraulic damping. Hydraulic dampers: a fast press meets more resistance than a slow one, like a real pedal box.
- Hydraulic dampers: a fast press meets more resistance than a slow one, like a real pedal box.
- Up to 140 kg at the pedal.
- Sensor reads force.
- Illustrative shape.
How these features work (1)
Spring, then rubbers. A coil spring for the pad-to-disc gap, then rubbers take the load.
- A coil spring for the pad-to-disc gap, then rubbers take the load.
- Up to 65 kg at the pedal.
- Sensor reads force.
- Illustrative shape.

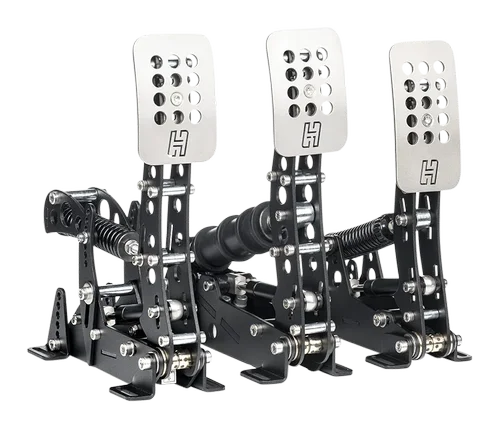

Heusinkveld Ultimate+ 3-Pedal Set (Black)
Load Cell Throttle, Brake & Clutch
$1,584Heusinkveld's top pedal set, built to match the brake forces of GT and formula cars, with a 200 kg load cell and 9 brake resistance settings plus hydraulic damping.
Specs
- Pedals
- Throttle, brake, clutch
- Max brake force
- 140 kg
- Brake settings
- 9 levels
- Sensors
- 200 kg load cell (brake); position (throttle, clutch)
- Dimensions
- 445 × 310 × 91 mm
- Weight
- 6.64 kg
- Platform
- PC (Windows 10+)
What sets it apart
- Hydraulic dampers like a real pedal box: 2-way on the brake, 1-way on the throttle.
- Up to 140 kg brake force from a 200 kg load cell; 9 brake settings; up to 100 mm travel.
- Clutch up to 47.5 kg, with an adjustable concave curve and a 2-way damper.
Good to know: Heusinkveld aims it at fast formula cars (Formula Renault 2.0 and up) and quick GT cars.

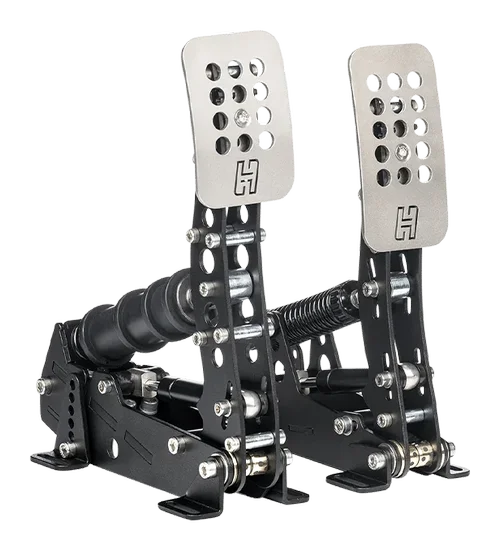

Heusinkveld Ultimate+ 2-Pedal Set (Black)
Load Cell Throttle & Brake
$1,289The Ultimate+ brake and throttle without the clutch, for GT and formula drivers who shift with paddles.
Specs
- Pedals
- Throttle, brake
- Max brake force
- 140 kg
- Platform
- PC (Windows 10+)
What sets it apart
- Hydraulic dampers like a real pedal box: 2-way on the brake, 1-way on the throttle.
- Up to 140 kg brake force from a 200 kg load cell; 9 brake settings; up to 100 mm travel.
- Throttle force 2.25–9.25 kg; SmartControl through a separate USB controller box.
Good to know: Heusinkveld aims it at fast formula cars (Formula Renault 2.0 and up) and quick GT cars.

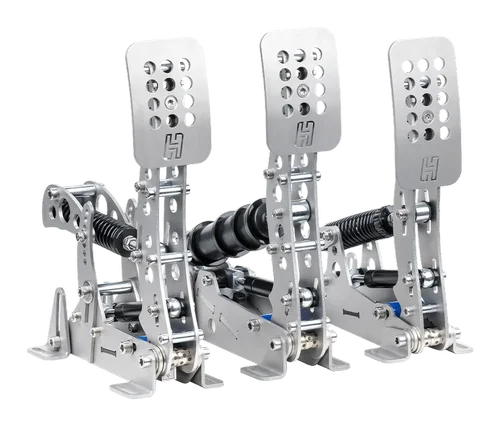

Heusinkveld Ultimate+ 3-Pedal Set (Silver)
Load Cell Throttle, Brake & Clutch
$1,584The Ultimate+ 3-pedal set in the silver finish.
What sets it apart
- Hydraulic dampers like a real pedal box: 2-way on the brake, 1-way on the throttle.
- Up to 140 kg brake force from a 200 kg load cell; 9 brake settings; up to 100 mm travel.
- Clutch up to 47.5 kg, with an adjustable concave curve and a 2-way damper.
Good to know: Heusinkveld aims it at fast formula cars (Formula Renault 2.0 and up) and quick GT cars.

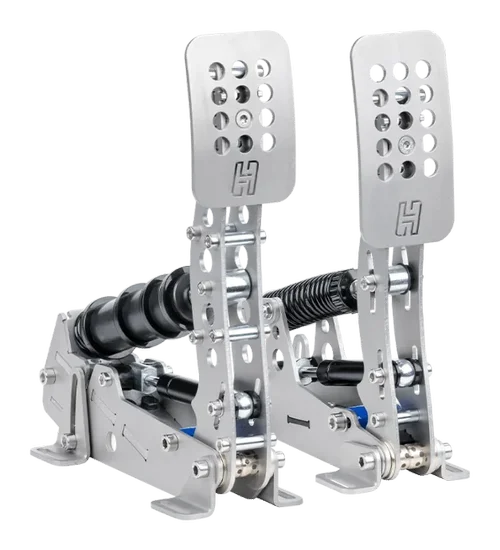

Heusinkveld Ultimate+ 2-Pedal Set (Silver)
Load Cell Throttle & Brake
$1,289The Ultimate+ 2-pedal set in the silver finish.
What sets it apart
- Hydraulic dampers like a real pedal box: 2-way on the brake, 1-way on the throttle.
- Up to 140 kg brake force from a 200 kg load cell; 9 brake settings; up to 100 mm travel.
- Throttle force 2.25–9.25 kg; SmartControl through a separate USB controller box.
Good to know: Heusinkveld aims it at fast formula cars (Formula Renault 2.0 and up) and quick GT cars.

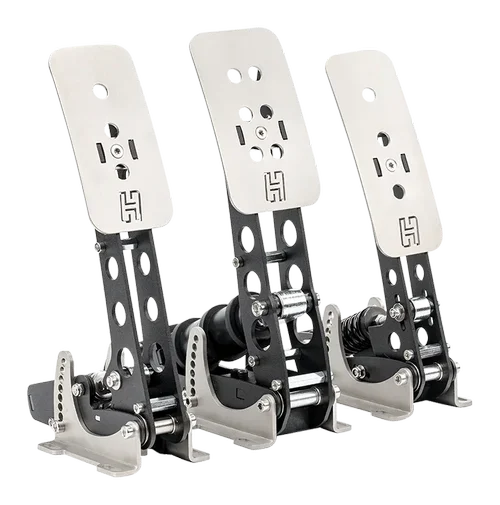

Heusinkveld Sprint 3-Pedal Set
Load Cell Throttle, Brake & Clutch
$709The Sprint load-cell pedal set with the clutch added.
What sets it apart
- SmartControl curves, deadzones and max brake force are stored in the pedals, so they work in any sim without recalibrating; profiles can be shared.
- Two-stage brake: a coil spring for the pad-to-disc gap, then rubbers take the load; 6 stiffness settings, up to 65 kg.
- Clutch included: 5–12 kg force, 98 mm travel.
Good to know: Heusinkveld suggests 65 kg for road cars, junior formula and slower GT cars.

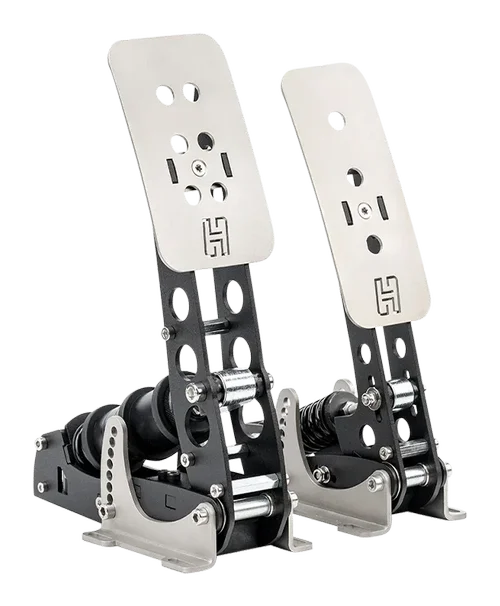

Heusinkveld Sprint 2-Pedal Set
Load Cell Throttle & Brake
$600A compact load-cell pedal set with 65 kg max brake force and full adjustment of stiffness, travel and output curves through SmartControl.
Specs
- Pedals
- Throttle, brake
- Max brake force
- 65 kg
- Sensors
- 120 kg load cell (brake); position-sensitive load cell (throttle)
- Adjustability
- 6 brake settings, preload, angle, travel, height, curves
- Material
- Powder-coated stainless steel
- Weight
- 3.19 kg
- Platform
- PC (Windows 10+)
What sets it apart
- SmartControl curves, deadzones and max brake force are stored in the pedals, so they work in any sim without recalibrating; profiles can be shared.
- Two-stage brake: a coil spring for the pad-to-disc gap, then rubbers take the load; 6 stiffness settings, up to 65 kg.
- Powder-coated stainless steel, 3.19 kg, one USB cable.
Good to know: Heusinkveld suggests 65 kg for road cars, junior formula and slower GT cars.
Shifters & Handbrakes
Magnetic shifters with adjustable shift force and wear-free sensors, plus a load-cell handbrake.
How to choose
How to choose a shifter
- Your cars. H-pattern for road, classic and trucks: the HGP. Sequential for GT and rally: the SGP, MagShift and MagShift Mini. Both: the Asetek Dual Mode and the TH8A.
- Feel. A spring or damper you tune: the SGP damper, TH8A resistance, Asetek throw length. A magnetic click with a set force up to 11 kg: Heusinkveld.
- Console. The TH8A, through the T598 on PlayStation. The rest are PC.
- Space. The MagShift Mini is the compact one, the SGP mounts forward or reversed, and the Asetek fits left- or right-hand drive.
Where Heusinkveld fits: Magnetic shift with a set force and optical sensors. PC only.
How to choose a handbrake
- Force or position. A load cell reads how hard you pull: Asetek, Heusinkveld. The MOZA HBP and the Thrustmaster TSS read how far the lever moves.
- Double duty. The TSS is also a sequential shifter; the Asetek has a digital (button) mode.
- Console. The TSS only, through the T598 on PlayStation.
- Mounting. All four mount vertically or horizontally. Heusinkveld adds 26° of fine tuning; Asetek fits left- or right-hand drive.
Where Heusinkveld fits: Load cell with 26° of fine angle tuning. PC only.
Handbrake: load cell. Reads how hard you pull, not how far the lever moves.
- Reads how hard you pull, not how far the lever moves.
- Up to 22 kg at the lever.
- Sensor: 120 kg load cell.
- Illustrative shape.
Heusinkveld MagShift
GT Sequential Shifter
$436A GT-style sequential shifter that uses magnets to recreate a real gear change, with adjustable shift force and a built-in 3-button box.
Specs
- Shift force
- 4.5–11 kg, adjustable
- Sensors
- Opto-electronic (wear-free)
- Buttons
- 3 integrated
- Dimensions
- 370 × 130 × 72 mm
- Weight
- 2.42 kg
- Platform
- PC (Windows 10+)
What sets it apart
- A magnetic mechanism that Heusinkveld built to feel like a gear clicking into place.
- Shift force 4.5–11 kg, set three ways: overall, upshift and downshift.
- 3 built-in buttons; stainless steel; tested to 1 million cycles.

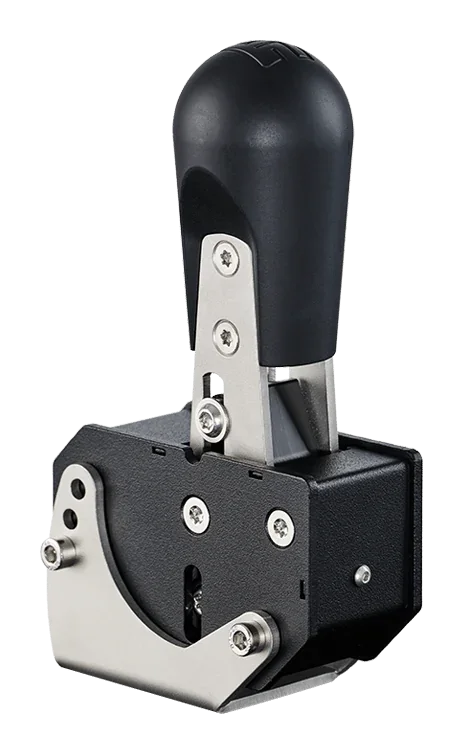

Heusinkveld MagShift Mini
Compact Sequential Shifter
$283A compact magnetic sequential shifter with 4–8 kg of adjustable shift force. Several mounting options are available.
Specs
- Shift force
- 4–8 kg, adjustable
- Sensors
- Opto-electronic
- Dimensions
- 169 × 91.5 × 57.5 mm
- Weight
- 2 kg
- Mounting
- Horizontal bracket included
- Platform
- PC (Windows 10+)
What sets it apart
- Patented magnetic mechanism; 4–8 kg shift force, with upshift and downshift set separately.
- 169 × 91.5 × 57.5 mm; tested to a million cycles.
- Wear-free optical sensors.
Good to know: PC only.

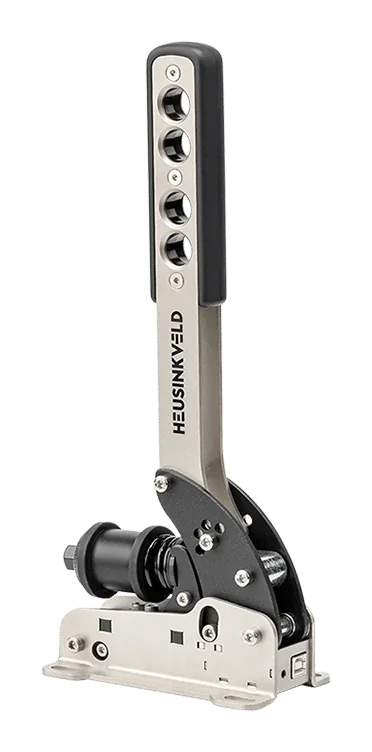

Heusinkveld Handbrake
Load Cell Handbrake
$371A force-sensitive handbrake for rally and drift with a 120 kg load cell and adjustable resistance.
Specs
- Sensor
- 120 kg load cell
- Max force
- Up to 22 kg at lever
- Dimensions
- 317 × 162 × 84 mm
- Weight
- 2.17 kg
- Platform
- PC (Windows 10+)
What sets it apart
- 120 kg load cell; up to 22 kg measured at the lever.
- 2-stage springs plus 3 elastomers and preload adjustment.
- Horizontal or vertical, with up to 26° of fine tuning; SmartControl curves.
Steering Wheels
The Heusinkveld One: a wireless wheel of about 1 kg with 14 buttons, 4 encoders and a 50.8 mm hub (70 mm adapter available).
How to choose
- Your base decides the brand. MOZA on MOZA, Asetek on Asetek, Thrustmaster on Thrustmaster. Cube Controls and the Heusinkveld One use a standard hub: we add the adapter on MOZA or Asetek Racing bases; Cube Controls wheels bolt straight to a VNM x Cube Controls base. They are not offered on Thrustmaster.
- Console? Xbox: the MOZA ESX on a supported MOZA base. PlayStation: a Thrustmaster wheel on the T598; the GT Wheel adds PlayStation buttons and is mapped for you in Gran Turismo. Everything else is PC.
- The cars you drive set the rim shape. Formula, about 270–300 mm: open-wheel. Butterfly or D, 300–325 mm: GT. Round, 320–340 mm: road, rally and drift. The oval Hypercar: Le Mans prototypes. 400 mm: trucks.
- Screen or lights? Screens run from 2.85 in to 5.4 in. LED-only wheels often cost less and pair with a dash such as the MOZA CM2 or an on-screen overlay.
- Clutch and power. For standing starts, pick dual clutch paddles with a bite point. Wheels powered through the quick release never need charging; the wireless ones (Heusinkveld One, Cube F-PRO, F-CORE EVO, GT PRO V2, Mercedes-AMG edition) do.
Where Heusinkveld fits: One wheel, the One: about 1 kg and wireless, on a standard hub for MOZA or Asetek Racing bases. PC only.
Rim shapes to scale. Outlines at true relative size.
- Formula, about 285 mm: open-wheel (this product)
- Butterfly, about 310 mm: GT
- Closed D, about 320 mm: GT, road
- Round, about 330 mm: road, rally, drift
- Dished, about 340 mm: rally, drift
- Oval, about 320 mm: prototypes
- Truck, about 400 mm: trucks
- Car types are SimWerk buying guidance.
How these features work (2)
Quick release and power. A wheel goes on the base family it was made for. Wheels on a standard hub use an adapter we add.
- MOZA quick release: MOZA bases take the 13 MOZA wheels we list.
- Asetek Racing quick release: Asetek Racing bases take the 7 Asetek Racing wheels we list.
- Thrustmaster quick release: Thrustmaster bases take the 5 Thrustmaster wheels we list.
- Cube Controls wheels and the Heusinkveld One: a standard hub with an adapter we add, on MOZA or Asetek Racing bases.
- Power: through the quick release, a USB cable, or wireless with a battery.
- Through the quick release
- USB cable
- Wireless, battery
Dual clutch paddles. Hold one paddle at the bite point, release the other at the start.
- 1: both clutch paddles pulled, clutch fully in.
- 2: one paddle released; the other holds the clutch at the bite point.
- 3: ease the second paddle out to launch.
- This wheel: bite point set per paddle.
- Illustrative.

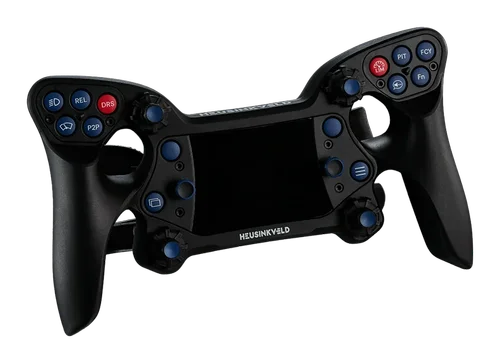

Heusinkveld One
Wireless Steering Wheel
$655An ultra-light wireless wheel of about 1 kg with 14 buttons, 4 rotary encoders, clutch and shift paddles and 9 telemetry LEDs.
Specs
- Weight
- 1,024 g
- Diameter
- ~270 mm
- Controls
- 14 buttons, 4 encoders, 2 × 7-way switches, shift & clutch paddles
- LEDs
- 9 RGB telemetry
- Connection
- Wireless (dongle included)
- Battery
- 2,800 mAh
- Hub
- 50.8 mm (70 mm adapter available)
What sets it apart
- 1,024 g: Heusinkveld built it light so more force-feedback detail reaches your hands.
- Wireless on Heusinkveld’s own low-latency link, with a dongle and a 2,800 mAh battery.
- Two-way magnetic paddles (“soft to push, firm to pull”) and dual clutch with the bite point set per paddle.
Good to know: PC only; needs charging. Battery hours are not published.
Quick release and powerDual clutch paddlesRim shapes to scale
Prices in USD, MSRP. Subject to change. Taxes and shipping not included. Ordering is by quote: order any item, or list the item names or SKUs in the contact form.
By quote
Accessories and upgrades.
Order any of these with your rig: list the item names or SKUs in the contact form.
Pedal upgrades
7 items
| Item | SKU | Price |
|---|---|---|
| Sprint Black – clutch only | HE-SPS1CB | $174 |
| Ultimate+ Silver – clutch only | HE-SPU1SC | $414 |
| Ultimate+ Black – clutch only | HE-SPU1SCB | $414 |
| Rest Pedal | HE-RESTPEDAL | $97 |
| Ultimate Upgrade Kit (for classic Ultimate) | HE-SPU-SCU | $239 |
| Add-on for Simucube ActivePedal – Throttle only | HE-SPU1TSCB | $513 |
| Add-on for Simucube ActivePedal – Throttle & clutch | HE-SPU-SCUBE-KIT | $928 |
Baseplates
2 items
| Item | SKU | Price |
|---|---|---|
| Sprint Baseplate Black | HE-SPSBP20 | $136 |
| Ultimate+ Baseplate Black | HE-SPUBP20 | $136 |
Elastomers
2 items
| Item | SKU | Price |
|---|---|---|
| Elastomer Kit – Sprint Pedals (early specs) | HE-ELAST | $38 |
| Elastomer Kit – Ultimate+ Pedals | HE-ULT-ELAST | $49 |
Shifter accessories
4 items
| Item | SKU | Price |
|---|---|---|
| MagShift Mini – Angled Mounts | HE-MAGANGLED | $21 |
| MagShift Mini – Table Clamp | HE-MAGCLAMP | $32 |
| MagShift Mini – Vertical Mount | HE-MAGVERT | $21 |
| MagShift Mini – Extended Lever | HE-MAG-MEDLEV | $43 |
Wheel accessories
1 items
| Item | SKU | Price |
|---|---|---|
| Steering Wheel Adapter (50.8 mm to 70 mm) | HE-SW-ADAPT | $43 |
Returns and warranty
Bought it from SimWerk? Contact us first.
No refunds, exchanges or store credit for a change of mind. If a Heusinkveld product you bought from us has a quality problem, contact us first. We'll repair, replace or refund it as the law or the applicable warranty requires.
Ask us before you order how Heusinkveld's warranty applies to items bought through SimWerk. Quality problems are handled under this policy either way.
Questions
Do Asetek Racing, Heusinkveld, Thrustmaster and Cube Controls parts fit SimWerk rigs?
Yes. MOZA, Asetek Racing, Heusinkveld and Thrustmaster hardware and the Cube Controls wheels fit both the SimWerk Core and the SimWerk Grand. For the VNM x Cube Controls wheelbases and the Cube Controls SP01 Core pedals, we confirm the mounting for your chassis in your quote.
How do I order?
Ordering is by quote. Build your rig in the configurator and send it to us, or send the contact form or email info@simwerkus.com with the items you want. We'll confirm lead time and a final quote. Our Returns & Warranty policy applies to every order.
What is your return policy?
We don't give refunds, exchanges or store credit for a change of mind: once your order is delivered, all sales are final except for quality problems. If anything you buy from us arrives damaged, is defective or doesn't work as it should, or isn't what your quote lists, contact us. We'll repair, replace or refund it as the law or the applicable warranty requires. This covers everything we sell, including hardware from other brands. The full policy is under Returns & Warranty on our Support page.
Spec it on your rig.
Add Heusinkveld gear to a SimWerk build and see the total as you go. Ordering is by quote.
