SimWerk Core
From $7991250 × 830 × 650 mm · L × W × H, upright
- Aluminum-profile chassis with a profile wheel deck
- Side control shelf for shifter and handbrake
- Takes every SimWerk display stand
- Takes MOZA HMA150 motion and the SimWerk 4DOF system
Hardware
Modular by design.
Start with a chassis, the SimWerk Core or the SimWerk Grand, then add seat, display stand, motion and modules. Everything is built on aluminum profile, so your rig grows with you.
- IncludedSeat sliders and side brackets with every SimWerk seat
- ColoredAnodized part by part. SW01 Stealth Black is standard
- Fits bothMOZA incl. HMA150, Asetek Racing, Heusinkveld, Thrustmaster and Cube Controls wheels
- MotionMOZA HMA150 $2,999. SimWerk 4DOF and 7DOF quoted
01 · Chassis
Core or Grand.
SimWerk Grand
From $1,2991400 × 850 × 780 mm · L × W × H, upright
- Flagship chassis with a CNC-machined wheel-deck plate
- Takes every SimWerk display stand
- Takes MOZA HMA150 and SimWerk 4DOF motion
- The only chassis rated for the SimWerk 7DOF full-motion system
Every SimWerk seat ships with sliders and side brackets included. MOZA hardware, including HMA150 motion, Asetek Racing, Heusinkveld, Thrustmaster and Cube Controls wheels all fit both chassis. The Grand 3D model is a close approximation of the real chassis.
02 · Motion
Feel the track.
Motion is what turns a sim into a car. Start with MOZA HMA150 haptic motion, or ask about our own 4DOF and 7DOF systems.
Our pickAuthorized dealer

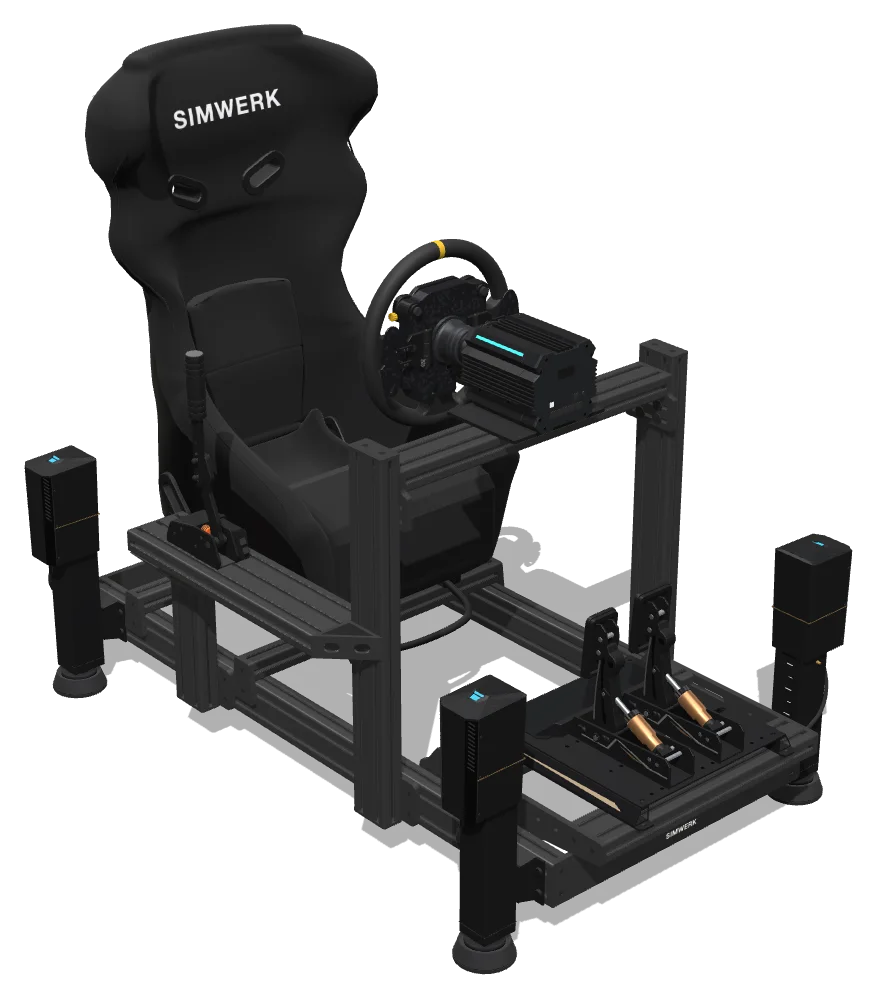

MOZA HMA150
$2,999- Haptic motion with four actuators
- 150 mm stroke
- Vibration up to 200 Hz
- Fits SimWerk Core and SimWerk Grand

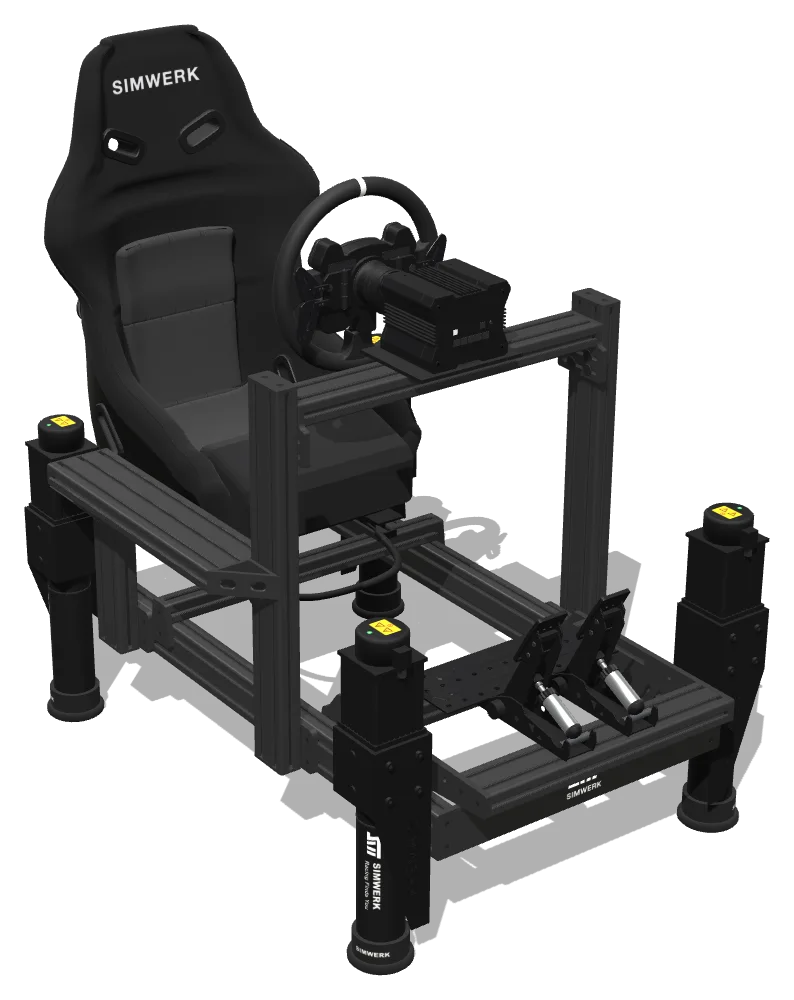

SimWerk 4DOF Motion System
Quoted- Four-axis motion that bolts under the chassis
- Fits the Core and the Grand
Grand only

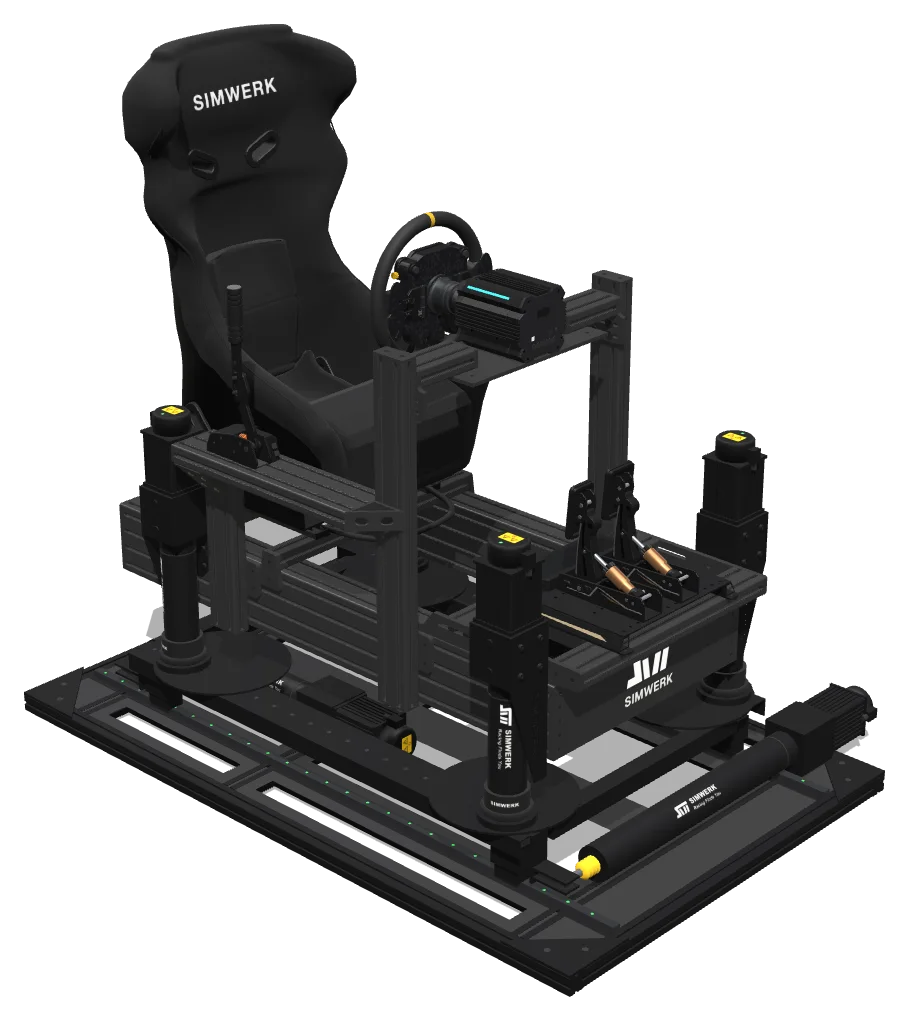

SimWerk 7DOF Motion System
Quoted- Our full-motion flagship
- Exclusive to the Grand chassis
Shown with optional equipment, sold separately.
03 · Seats & modules
Finish the cockpit.
Elsewhere, seat sliders and side brackets are usually sold separately. Every SimWerk seat comes with both, fitted and ready to bolt in.
Sliders & brackets included

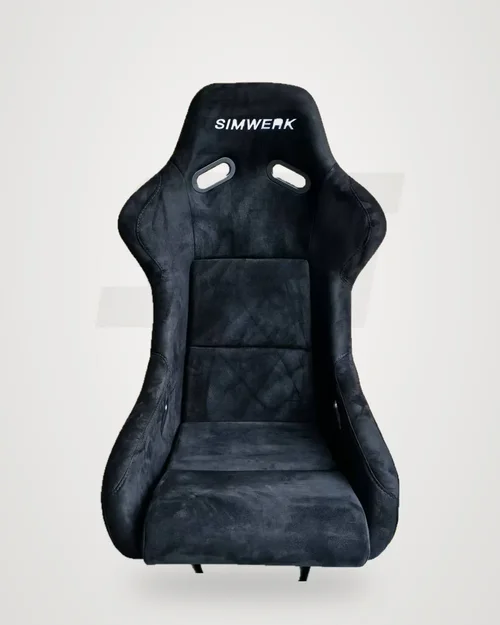

Sport Racing Seat
$329Open profile for quick entry and exit. Sliders & brackets included.
Sliders & brackets included

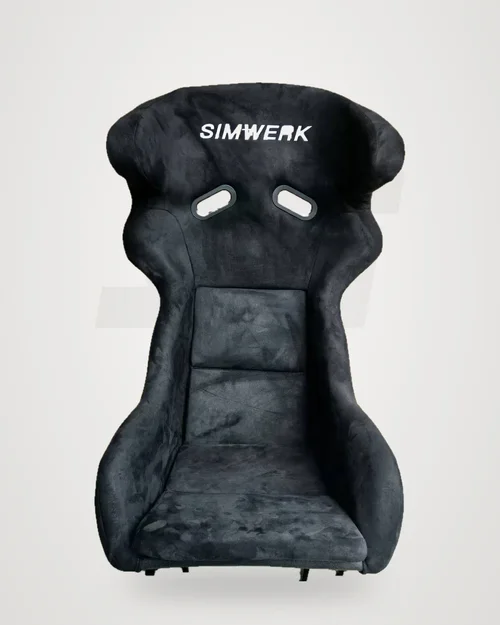

Performance Racing Seat
$379Deep bolsters, recommended with motion. Sliders & brackets included.
Coming soon
SimWerk Seat Studio
Stitching, shell colors and embroidery.
Modules
- PC TrayKeeps your tower PC on the chassis. PC not included.$79.99
- Keyboard TraySide-mounted tray for your keyboard and mouse.$49.99
- Cup HolderIn reach, out of the way.$39.99
04 · Display
See further.
Freestanding or motorized, single or triple. Motorized stands adjust screen height for you. Monitors not included.

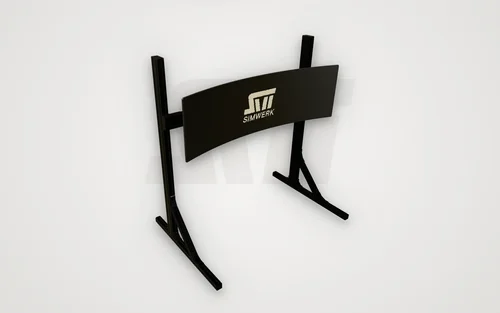

$349Single Monitor Stand

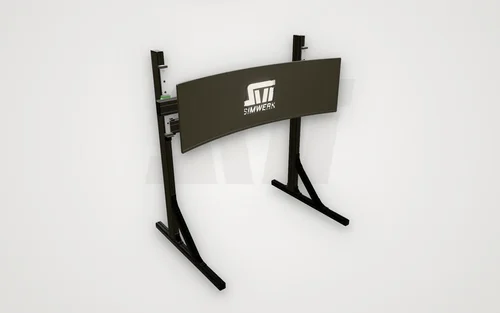

QuotedMotorized Single Display Mount
SimWerk exclusive

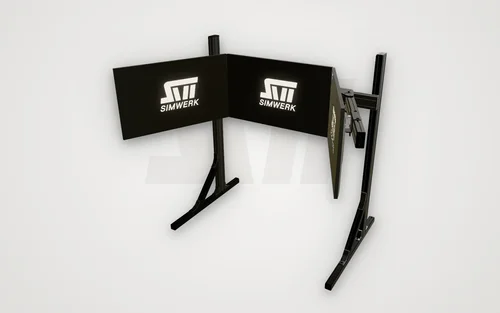

$549Standard Triple Monitor Stand

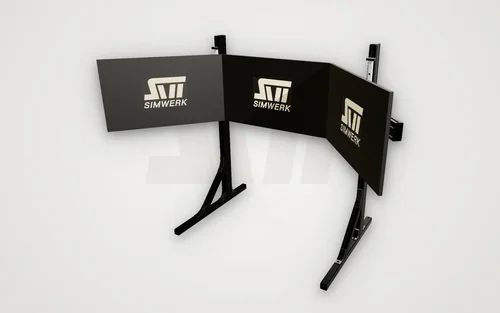

$799.99Motorized Triple Monitor Stand
SimWerk exclusive

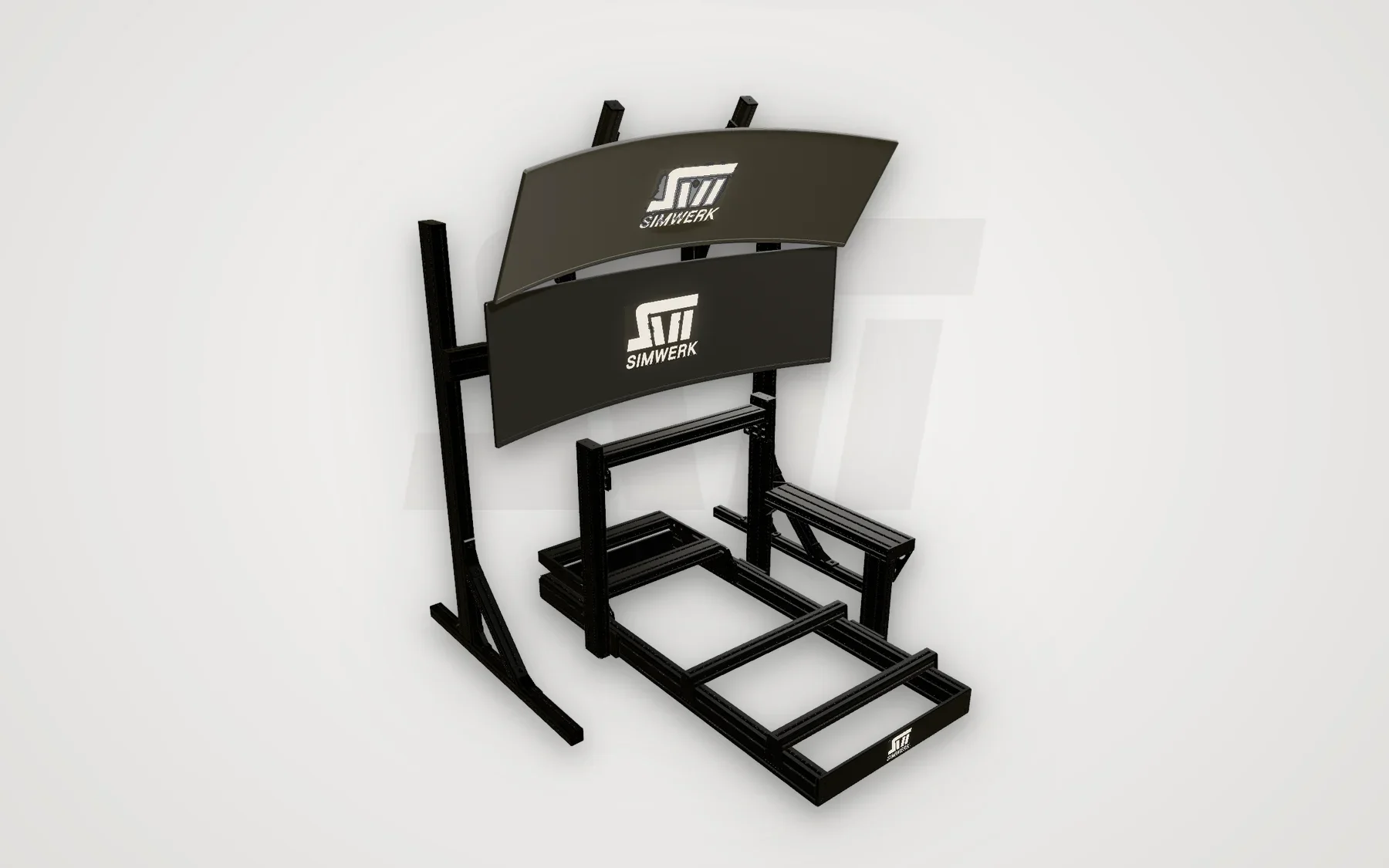

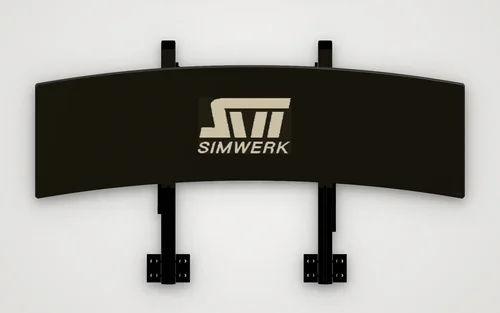

QuotedIntegrated 4th Monitor Stand
Holds an overhead monitor for telemetry, timing or your stream. Monitor not included.

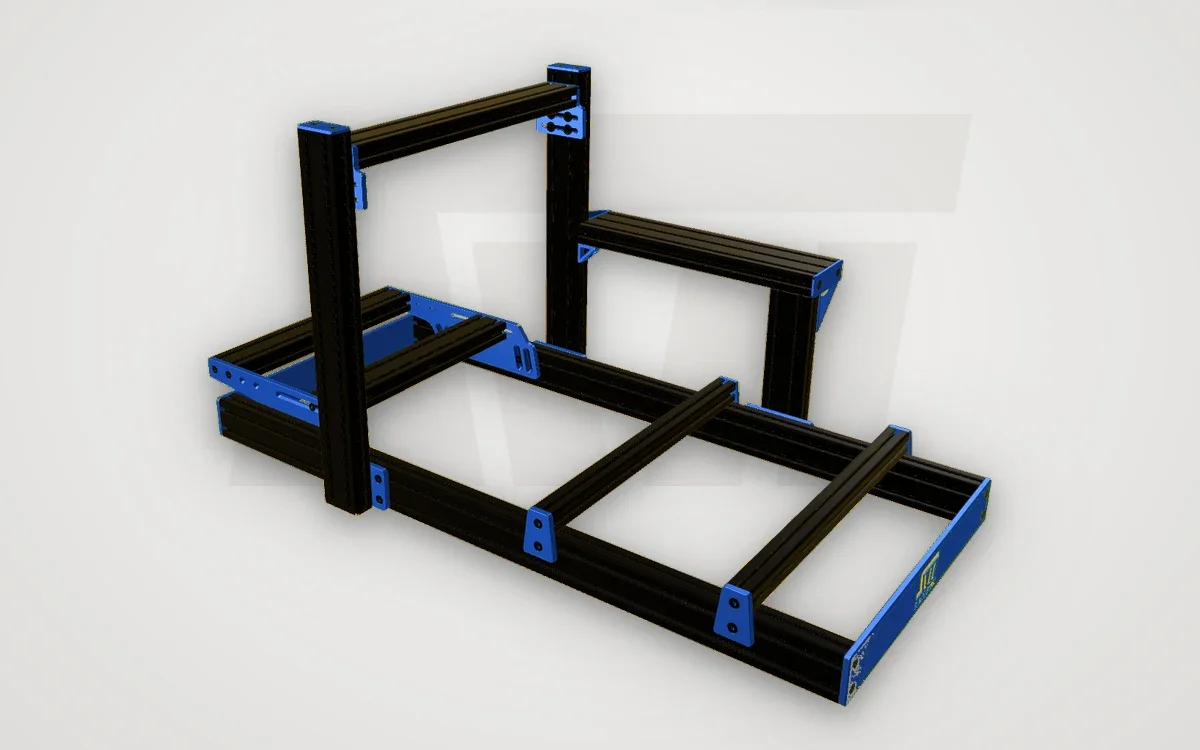

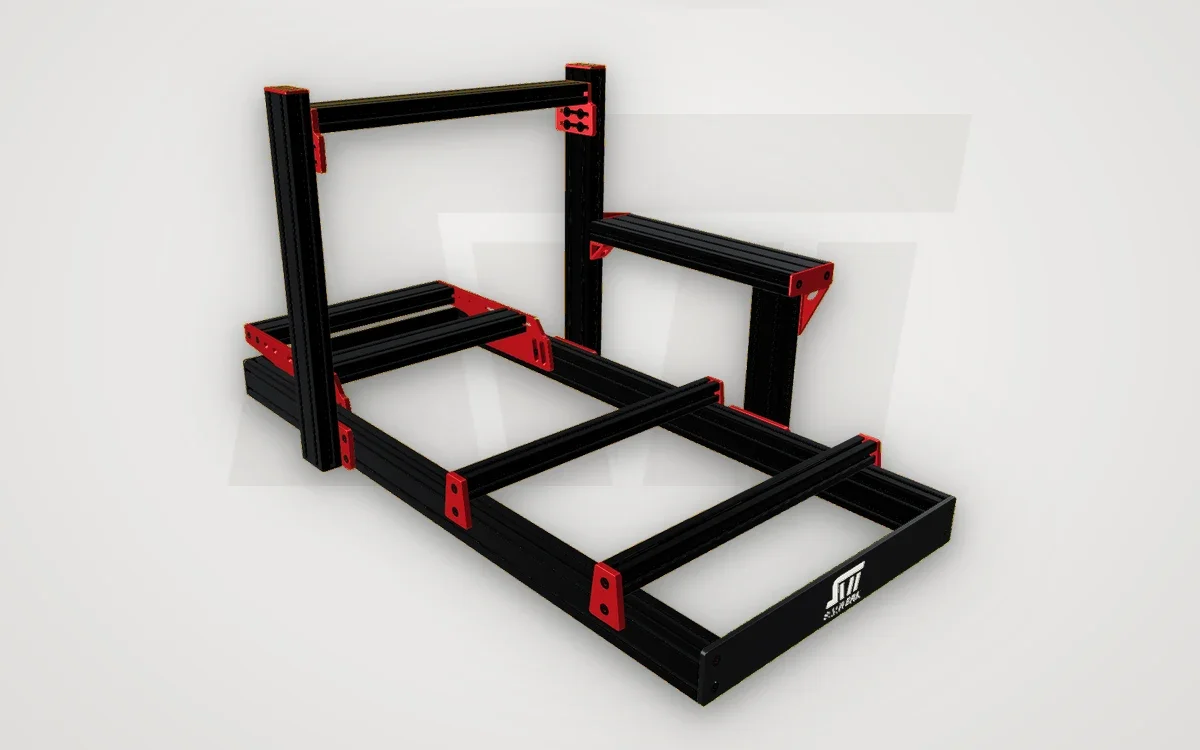

05 · Anodized color
Color it part by part.
The aluminum profiles, every CNC-machined joint plate, cap and bracket, and the front logo plate can each be anodized in their own color. SW01 Stealth Black is standard; any other color is a paid upgrade, priced in your quote.
- SW01 Stealth Black · standard
- SW02 Gunmetal
- SW03 Titanium
- SW04 Raw Silver
- SW05 Werk Orange
- SW06 Signal Red
- SW07 Race Gold
- SW08 Racing Blue
- SW09 Midnight Violet
- SW10 Circuit Green
- SW-XX Your brand
Matte anodized: the color is an oxide layer grown into the aluminum, so it won't chip or peel like paint. The engraved SimWerk logo on the front plate is filled white. True white and pastel tones aren't possible with anodizing. Custom brand colors are matched on a test piece first.
06 · Wheels, pedals & controls
Pick your hardware.
MOZA and Thrustmaster are our authorized lineups, set up on every SimWerk chassis. Asetek Racing, Heusinkveld and Cube Controls are available through SimWerk. Asetek Racing and Heusinkveld gear and the Cube Controls wheels fit both chassis too.
Authorized Dealer
MOZA Racing
SimWerk is an authorized MOZA Racing dealer.
Full MOZA lineup →Partner brandAsetek Racing
Asetek Racing, formerly Asetek SimSports, makes direct-drive wheelbases, steering wheels and hydraulic pedals.
See Asetek Racing →Partner brandHeusinkveld
Heusinkveld builds load-cell pedals, magnetic shifters, a load-cell handbrake and the wireless Heusinkveld One wheel.
See Heusinkveld →Authorized DealerThrustmaster
Thrustmaster makes direct-drive wheelbases, licensed replica wheels, load-cell pedals and shifters, and its T598 base runs on PlayStation.
See Thrustmaster →Official partnerCube Controls
Cube Controls, the Italian sim racing brand, makes formula and GT wheels, among them the Mercedes-AMG GT Edition developed with Mercedes-AMG, and the SP01 Core pedals.
See Cube Controls →07 · Choose by part
How the brands differ.
One line per brand on what it does differently, part by part. Each brand page has the full lineup, what sets each product apart and how to choose.
Wheelbases
Platform first. PlayStation: the T598 is the only base here that runs on it. Xbox: a MOZA R12 V2, R16 Ultra or R25 Ultra with the ESX wheel. PC: any of them.
- MOZA Racing →Five bases, one wheel family; Xbox with the ESX wheel.
- Asetek Racing →PC only; published slew rate and a torque-off box on Forte and Invicta.
- Thrustmaster →PlayStation with the T598; Ferrari licensed wheels.
- Cube Controls →VNM x Cube Controls bases, 18 to 32 N·m max; Cube wheels bolt straight on.
Steering wheels
Your base decides the brand. MOZA on MOZA, Asetek on Asetek, Thrustmaster on Thrustmaster. Cube Controls and the Heusinkveld One use a standard hub: we add the adapter on MOZA or Asetek Racing bases; Cube Controls wheels bolt straight to a VNM x Cube Controls base. They are not offered on Thrustmaster.
- MOZA Racing →13 wheels on one quick release, from the Xbox ESX to licensed replicas.
- Asetek Racing →Modular: one button box, swappable rims or handles. PC only.
- Heusinkveld →One light, wireless wheel for MOZA or Asetek bases. PC only.
- Thrustmaster →Ferrari licensed SF-25 and 488 GT3, the Gran Turismo wheel, the oval Hypercar.
- Cube Controls →Formula and GT wheels on a standard 70 mm hub; we add the adapter. Quoted.
Pedals
What do you play on? PlayStation: the Raceline Pedals III LC through the T598. Xbox: MOZA CRP2 through a MOZA base, depending on the game. PC: all of them; Asetek, Heusinkveld, the mBooster and the Cube Controls SP01 Core are PC only.
- MOZA Racing →From the $149 SRP2 to the mBooster active pedal.
- Asetek Racing →Two-stage load cell or real hydraulics. PC only.
- Heusinkveld →Set the brake by force; saved on the pedals. Ultimate+ adds dampers.
- Thrustmaster →Metal three-pedal load-cell set; PlayStation through the T598.
- Cube Controls →The SP01 Core: a 200 kg load cell, electronics built in. Quoted.
Shifters & handbrakes
Your cars. H-pattern for road, classic and trucks: the HGP. Sequential for GT and rally: the SGP, MagShift and MagShift Mini. Both: the Asetek Dual Mode and the TH8A.
- MOZA Racing →Shifter: Lowest prices; the HGP blips the throttle on downshifts.Handbrake: Light, spring-tuned; reads lever position.
- Asetek Racing →Shifter: One unit for H-pattern and sequential.Handbrake: 200 kg load cell; analog or button mode.
- Heusinkveld →Shifter: Magnetic shift with a set force; optical sensors. PC only.Handbrake: Load cell with 26° of fine angle tuning. PC only.
- Thrustmaster →Shifter: H and sequential plates in one box; PlayStation through the T598.Handbrake: Handbrake or sequential shifter in one.
Motion
Published price or quote. The HMA150 is $2,999. SimWerk 4DOF and 7DOF are quoted and installed by us.
- MOZA Racing →Haptic motion at a published price; runs from a Windows PC.
- SimWerk motion →Our own 4DOF and 7DOF, quoted and installed by us.
08 · Compatibility
What fits what.
Both chassis take the same seats, display stands and modules, and the same MOZA, Asetek Racing, Heusinkveld and Thrustmaster gear and Cube Controls wheels. The one difference in motion: the SimWerk 7DOF system is exclusive to the Grand.
Prices are in USD: MSRP, except MOZA Racing and Thrustmaster products at each brand's current US store price. Tax, shipping and installation are quoted separately.
| Component | Core | Grand |
|---|---|---|
| MOZA bases | Fits | Fits |
| MOZA HMA150 | Fits | Fits |
| Asetek | Fits | Fits |
| Heusinkveld | Fits | Fits |
| Thrustmaster | Fits | Fits |
| Cube Controls wheels | Fits | Fits |
| SimWerk 4DOF | Fits | Fits |
| SimWerk 7DOF | Does not fit | Fits |
| Motorized single / triple display | Fits | Fits |
| Freestanding single / triple display | Fits | Fits |
| Integrated 4th monitor stand | Fits | Fits |
| Sport & Performance seats | Fits | Fits |
| Modules (PC tray, keyboard tray, cup holder) | Fits | Fits |

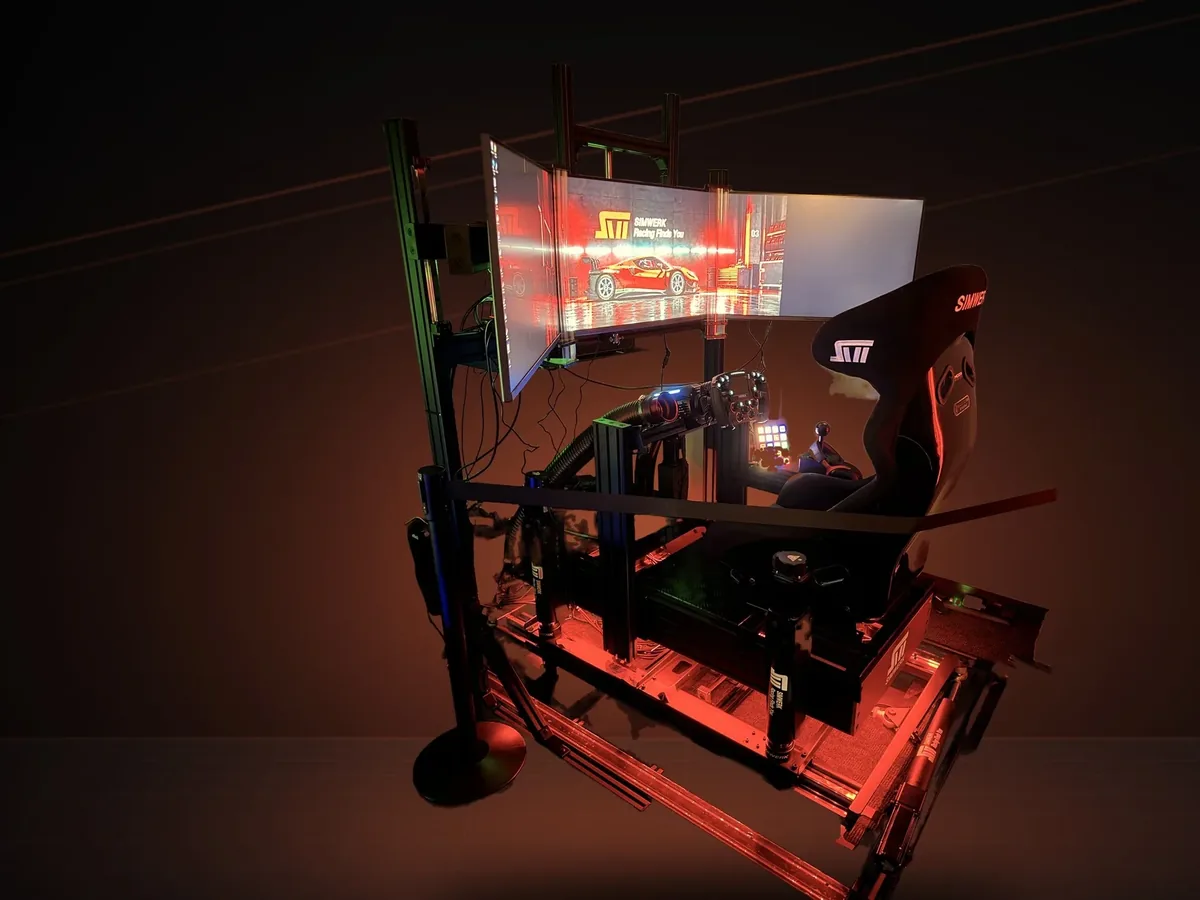

Pro Shop 01 · Laguna Hills
Sit in it before you buy it.
Pro Shop 01, SimWerk's test lab, runs fixed, 4DOF and 7DOF rigs on the same chassis we sell, with MOZA wheels, bases and pedals in stock. Your first 6 laps are free: 3 coached, 3 on your own.
Pro Shop demo rig. Monitors, PC and accessories shown are not included with a rig purchase unless listed in your quote.
Questions
Are seat sliders and brackets included?
Yes. Every SimWerk seat comes with seat sliders and side brackets, fitted and ready to bolt in.
Which motion system fits which chassis?
MOZA HMA150 and the SimWerk 4DOF system fit both the SimWerk Core and the SimWerk Grand. The SimWerk 7DOF system is exclusive to the Grand.
Can I choose my own colors?
Yes. The aluminum profiles, CNC-machined plates, caps and brackets, and the front logo plate can each be anodized in their own color. SW01 Stealth Black is standard; other colors are a paid upgrade, priced in your quote. Custom brand colors are matched on a test piece first; true white and pastel tones aren't possible with anodizing.
Are monitors or a PC included?
No. Display stands are sold without monitors, and a PC isn't included unless it's listed in your quote. The 3D views, renders and photos may show them for illustration. Your quote lists everything included in your order.
Do Asetek Racing, Heusinkveld, Thrustmaster and Cube Controls parts fit SimWerk rigs?
Yes. MOZA, Asetek Racing, Heusinkveld and Thrustmaster hardware and the Cube Controls wheels fit both the SimWerk Core and the SimWerk Grand. For the VNM x Cube Controls wheelbases and the Cube Controls SP01 Core pedals, we confirm the mounting for your chassis in your quote.
Can I race on PlayStation with a SimWerk rig?
Yes, with the Thrustmaster T598 Servo Base and a Thrustmaster wheel. Thrustmaster pedals plug into the base, and a Thrustmaster shifter or handbrake into its add-on port (a shifter and a handbrake together connect through the TM Sim Hub, which the configurator adds to your build). The MOZA, Asetek Racing, Heusinkveld and Cube Controls gear in our configurator runs on PC (some MOZA gear also on Xbox with the ESX wheel; the configurator tells you which), not on PlayStation. Thrustmaster firmware updates for the base, wheels and pedals install from a Windows PC (Thrustmaster's My Thrustmaster Panel software), so you need one for updates. Game support varies by title.
How do I order?
Ordering is by quote. Build your rig in the configurator and send it to us, or send the contact form or email info@simwerkus.com with the items you want. We'll confirm lead time and a final quote. Our Returns & Warranty policy applies to every order.
Do prices include tax, shipping and installation?
No. Prices are in USD: MSRP, except MOZA Racing and Thrustmaster products at each brand's current US store price. Tax, shipping and installation are quoted separately.
What is your return policy?
We don't give refunds, exchanges or store credit for a change of mind: once your order is delivered, all sales are final except for quality problems. If anything you buy from us arrives damaged, is defective or doesn't work as it should, or isn't what your quote lists, contact us. We'll repair, replace or refund it as the law or the applicable warranty requires. This covers everything we sell, including hardware from other brands. The full policy is under Returns & Warranty on our Support page.
Can I change or cancel my order?
Tell us as soon as you can. What can still be changed, and what's refunded if you cancel, depends on whether we've started producing or ordering your items; your quote states it. If we can't deliver within the lead time in your quote, you can agree to a new date or cancel for a full refund of what you've paid.
What if my order arrives damaged?
Check your order when it arrives and tell us right away: email info@simwerkus.com with photos of the damage and the packaging, and keep the packaging. We'll repair, replace or refund it as the law or the applicable warranty requires, and we'll handle the claim with the carrier.
Can I return a rig with custom colors?
Custom anodized colors and custom builds are made to order for you, so they can't be returned for a change of mind. Quality problems are still covered. Colors on screen are previews; anodize samples are at the Pro Shop.
What do “Ferrari licensed” and “Mercedes-AMG edition” mean on a wheel?
They describe the product. A Ferrari licensed wheel is officially licensed by Ferrari, as its maker Thrustmaster states. The Cube Controls Mercedes-AMG GT Edition was developed in collaboration with Mercedes-AMG and carries a genuine Mercedes-Benz badge. Our 3D models show those marks where the real wheel has them. SimWerk itself isn't licensed by Ferrari or Mercedes-Benz.
Put it all together.
Spec your rig piece by piece and see the total as you go.
