MOZA, set up right.

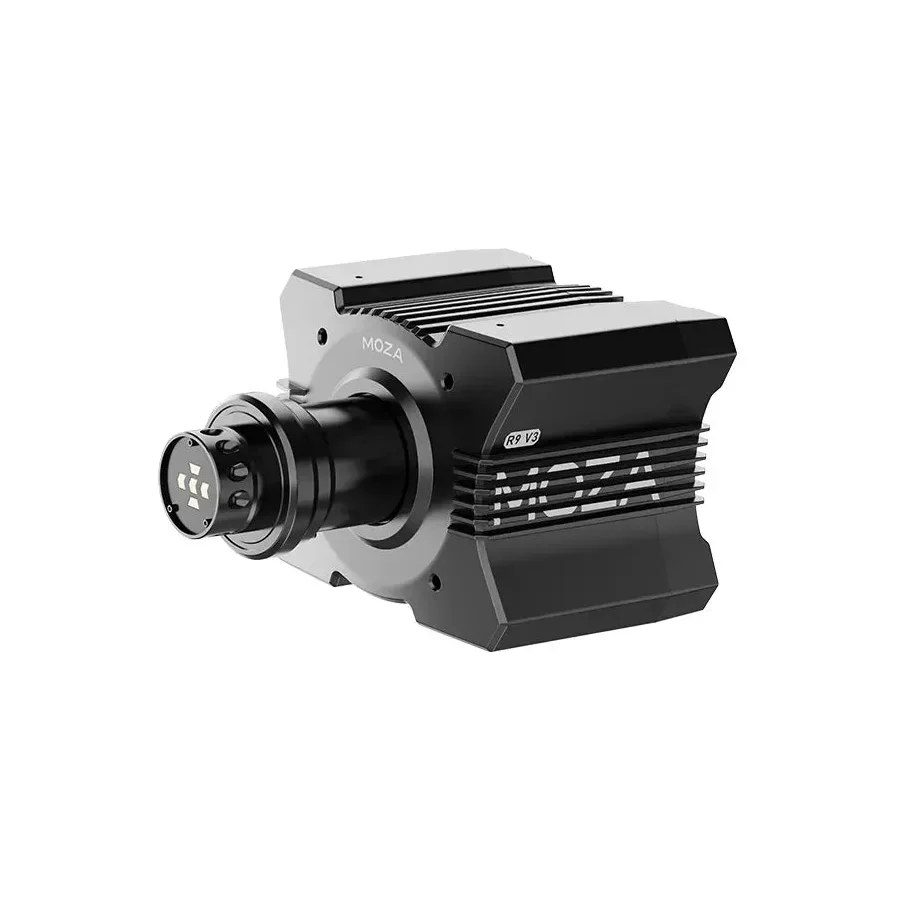

• 9 N·m peak for $299.
• Same 21-bit encoder (2,097,152 steps per turn) and 1000 Hz USB as the R25 Ultra.
• Pedals, shifter, handbrake, dash and E-stop plug into the base.
• Takes every MOZA wheel, so your wheel comes with you when you move up the MOZA range.

Good to know: Rated at peak only; MOZA publishes no sustained figure.

How torque is ratedQuick release and powerStopping the force

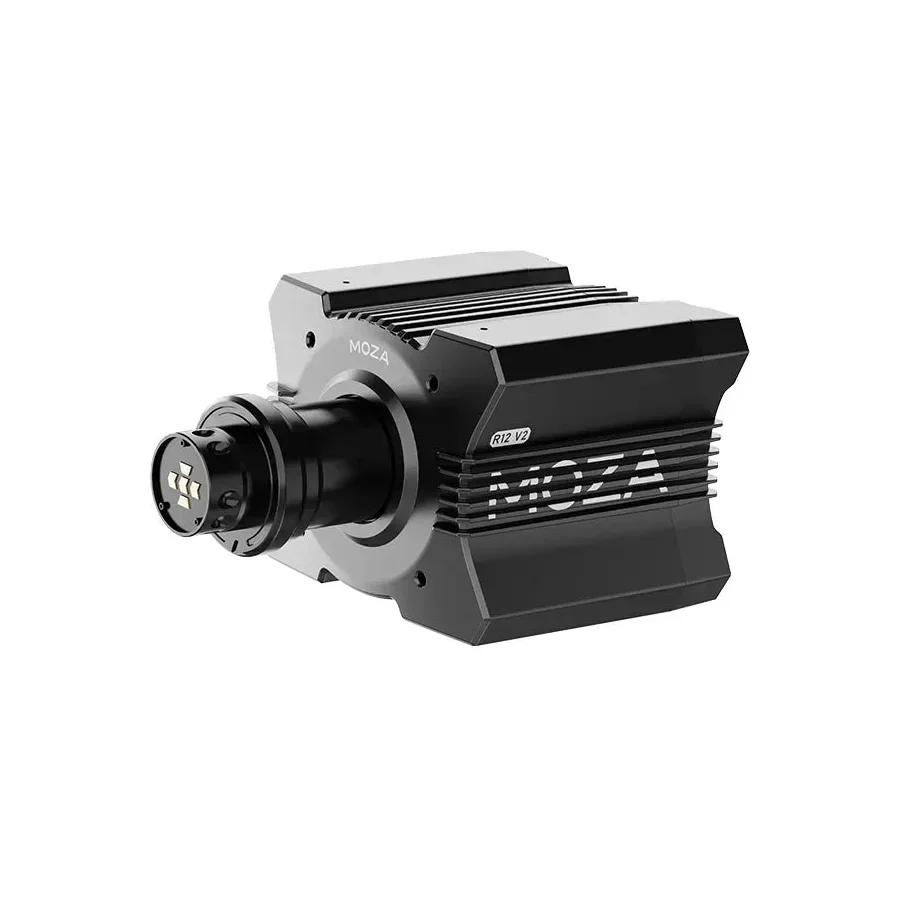

• Slanted-pole servo: a three-section skewed rotor that MOZA says reduces cogging, torque ripple and vibration.
• Officially supported on Xbox Series X|S and Xbox One with the MOZA ESX wheel.
• 12 N·m peak, 21-bit encoder, 1000 Hz.
• V2 adds front mounting holes next to the 4-hole bottom mount.

How torque is ratedQuick release and powerStopping the force

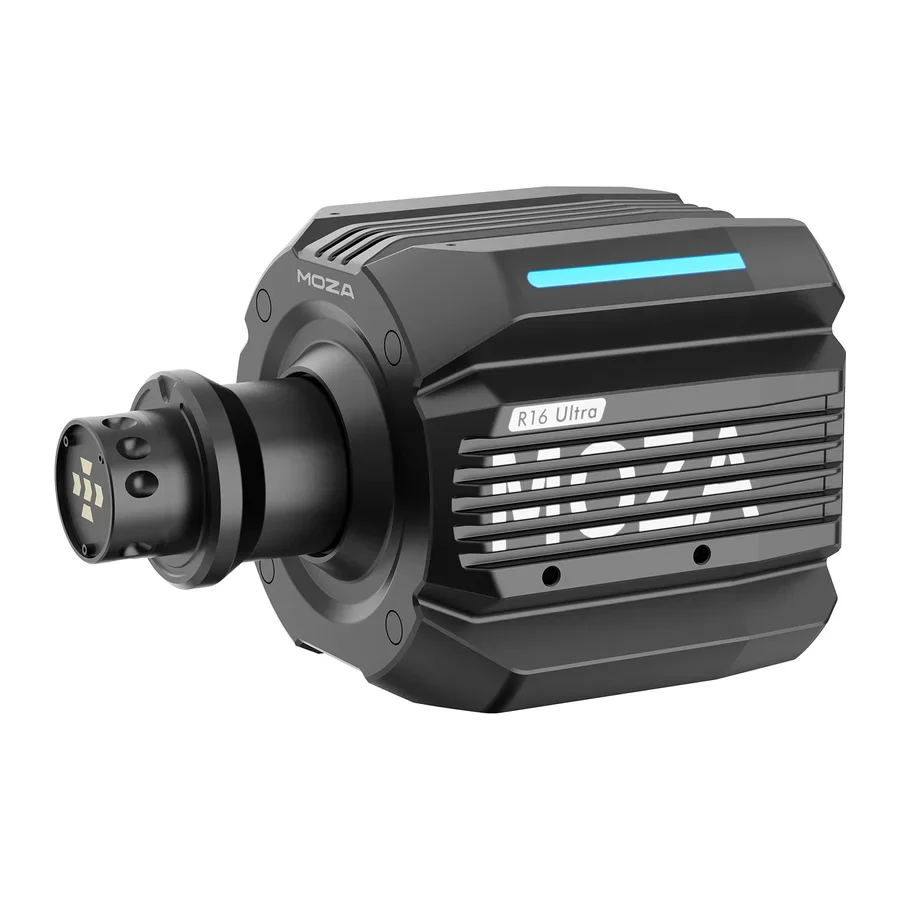

• 16 N·m sustained for $529: the force it keeps up, not a brief peak.
• Hands-Off Protection: MOZA says it detects when you let go of the wheel and quickly damps unwanted oscillation.
• Two RGB strips on the base show ABS, traction control, shift and flag telemetry.
• 206 × 140 × 135 mm; mounts from the bottom, front or side.

How torque is ratedTelemetry on the baseStopping the forceQuick release and power

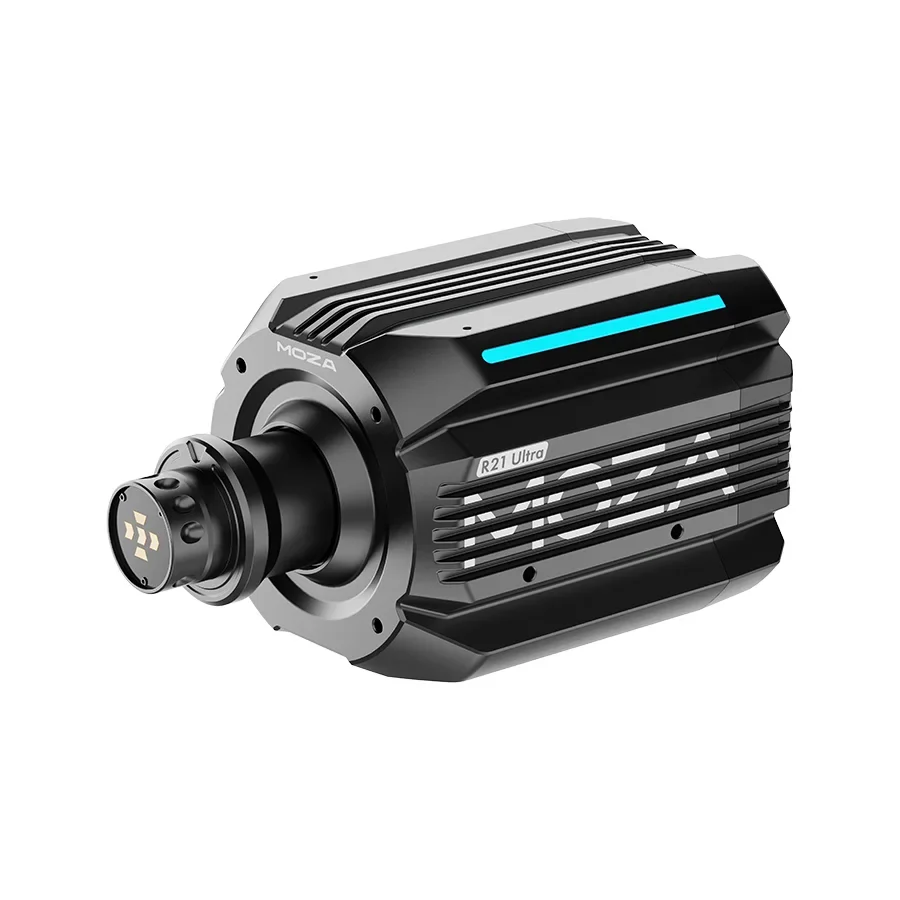

• 21 N·m sustained, with peak equal to sustained.
• Same 248.8 × 140 × 135 mm housing as the R25 Ultra; mounts from the bottom, front or side.
• Telemetry lighting set up in Pit House, plus an E-stop port.
• Hands-Off Protection: MOZA says it centers and stabilizes the wheel if your hands leave it.

Good to know: PC. Xbox is not confirmed by MOZA for this base.

How torque is ratedTelemetry on the baseStopping the forceQuick release and power

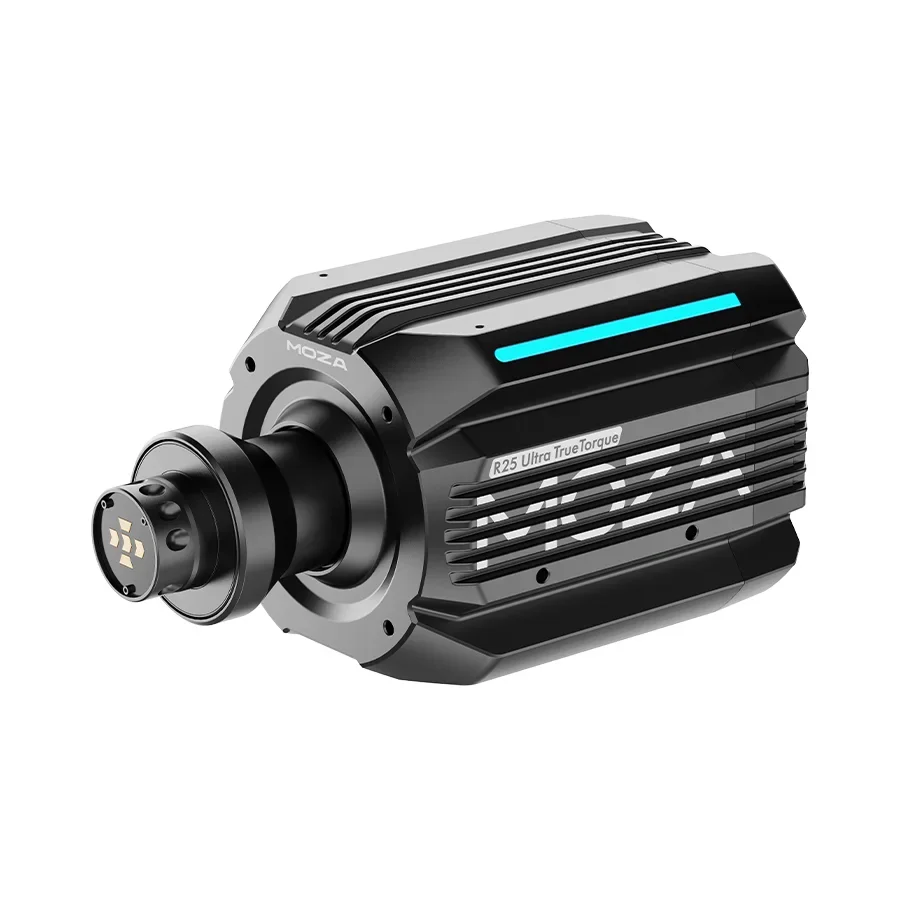

• True Torque: a built-in sensor measures output torque 2,000 times a second at 0.1% accuracy, so the base works from measured torque, not an estimate from motor current.
• 25 N·m sustained, the highest sustained rating we carry.
• Xbox with the ESX wheel; same footprint as the R21 Ultra.

How torque is ratedTelemetry on the baseStopping the forceQuick release and power

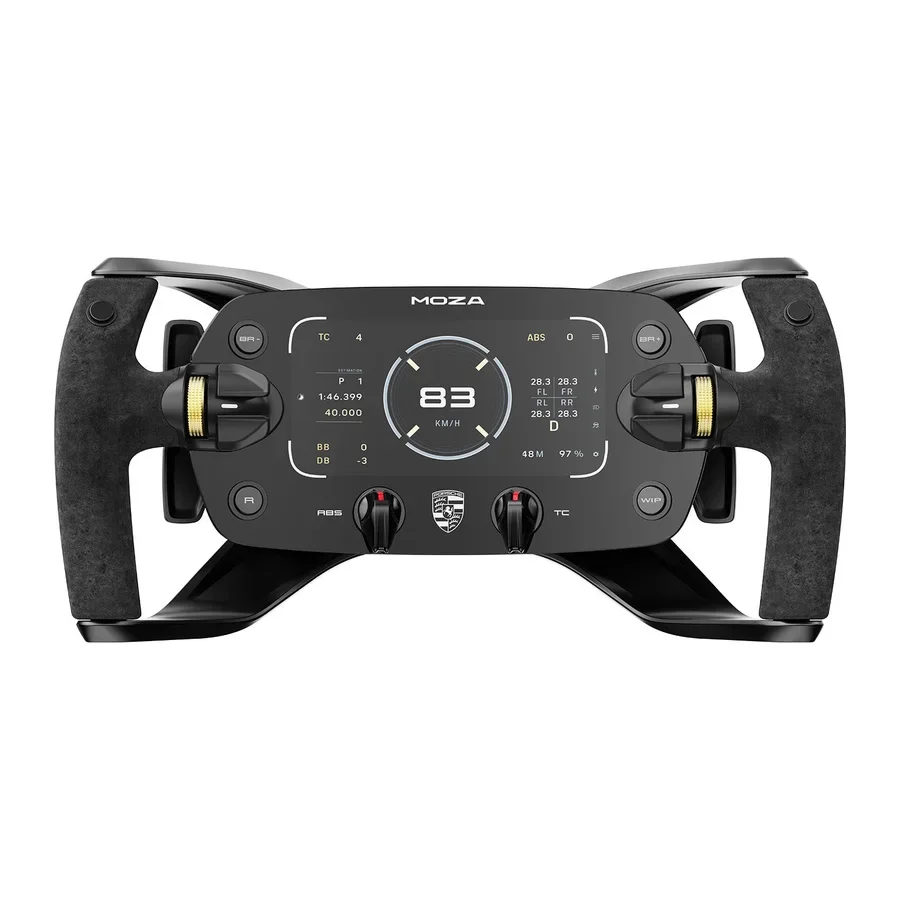

• Officially licensed by Porsche and recreated from the Mission R’s original CAD data.
• 5.4 in flexible OLED (720p) under curved tempered glass.
• Aluminum magnetic shift paddles plus Hall-effect dual clutch; 320 mm, faux suede grips.

Screens and lights to scaleDual clutch paddlesRim shapes to scale

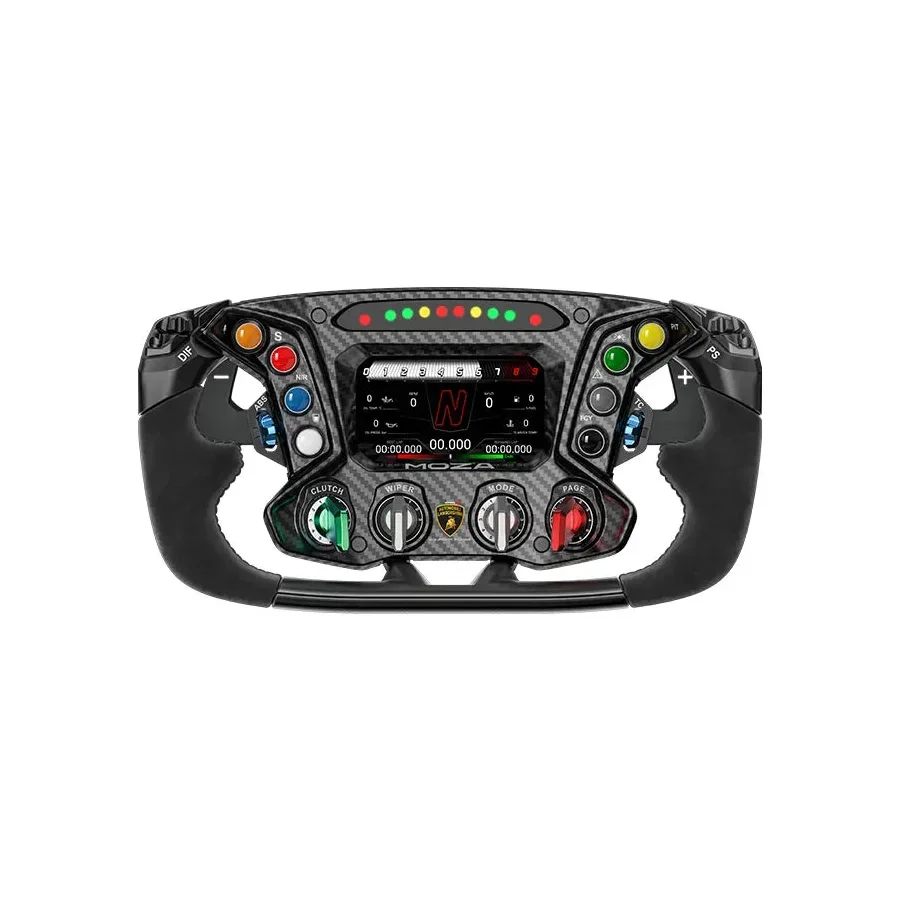

• Officially licensed by Automobili Lamborghini Squadra Corse: a replica of the track-only hypercar’s wheel.
• 4.3 in 800 × 480 touchscreen, 72 inputs, 4 twelve-position rotaries.
• Aluminum paddles tested for over a million shifts; CNC-anodized knobs.

Good to know: Weighs 1,950 g.

Screens and lights to scaleRim shapes to scaleQuick release and power

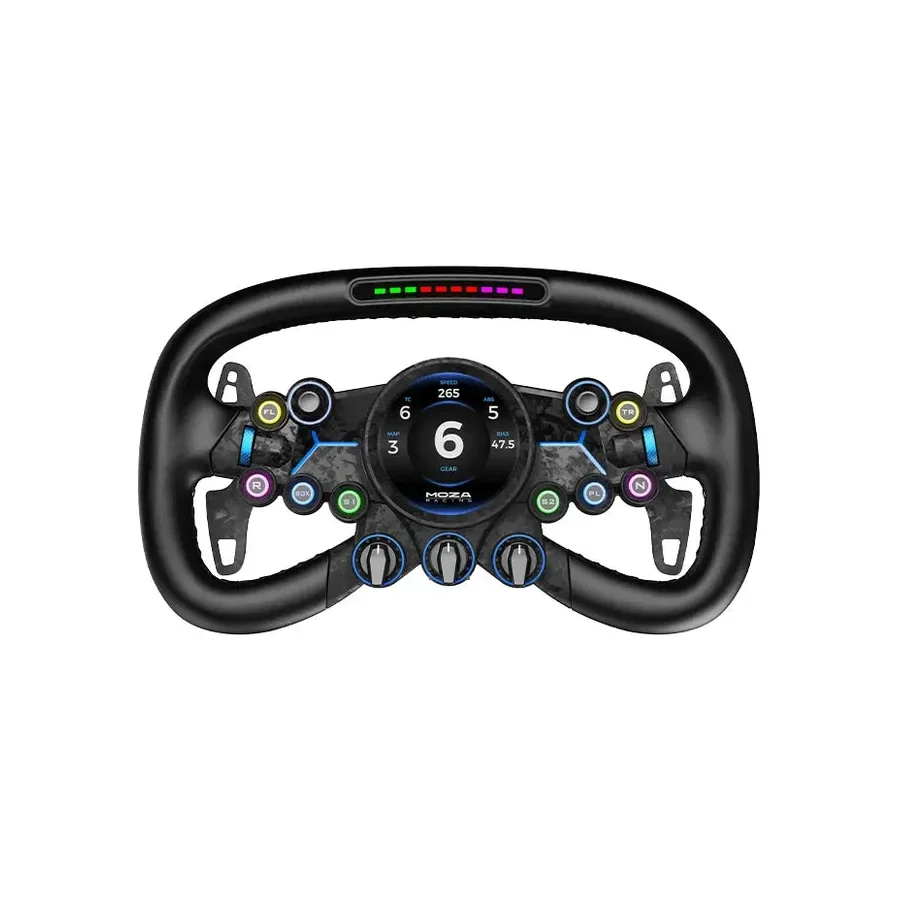

• 2.85 in round touchscreen; a built-in gyroscope keeps the view horizontal as the wheel turns.
• 10 preset layouts, and layouts can be shared.
• 72 programmable inputs; Hall-effect magnetic dual clutch; 310 mm.

Screens and lights to scaleDual clutch paddlesRim shapes to scale

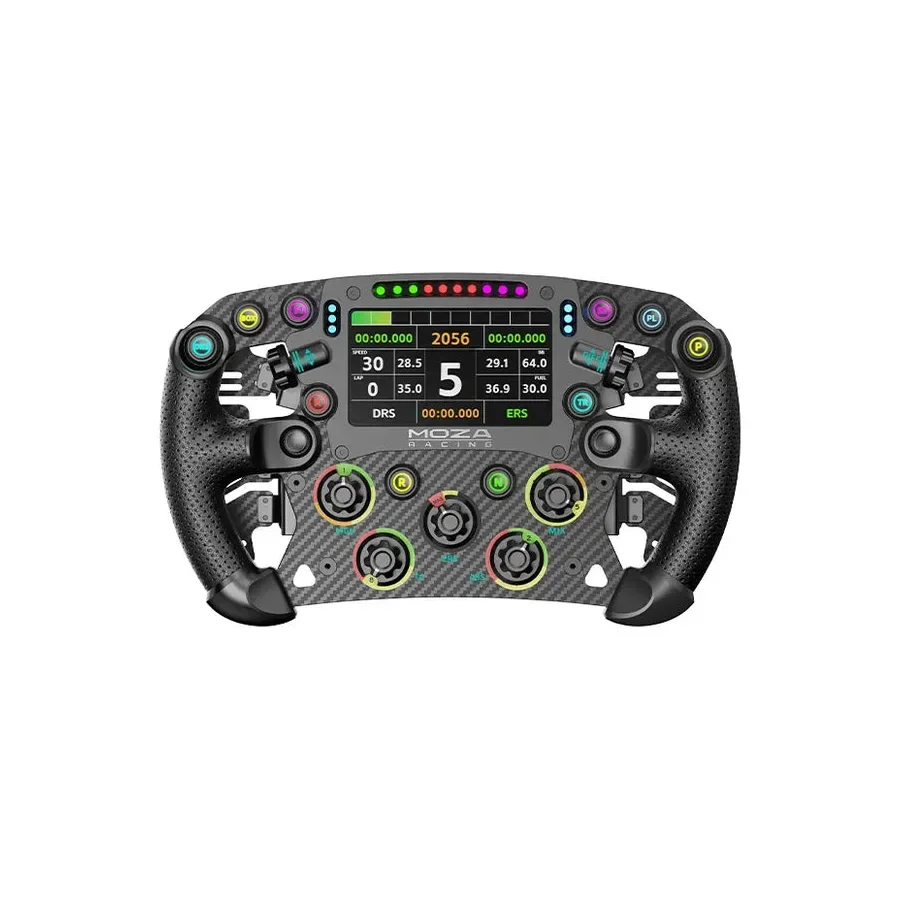

• 4.3 in touchscreen (480p, 60 Hz, swipe gestures) driven by a 1.3 GHz quad-core.
• 5 mm 3K carbon face; Hall-effect magnetic carbon paddles plus dual clutch.
• 280 mm formula shape; 10 shift and 6 signal lights.

Screens and lights to scaleDual clutch paddlesRim shapes to scale

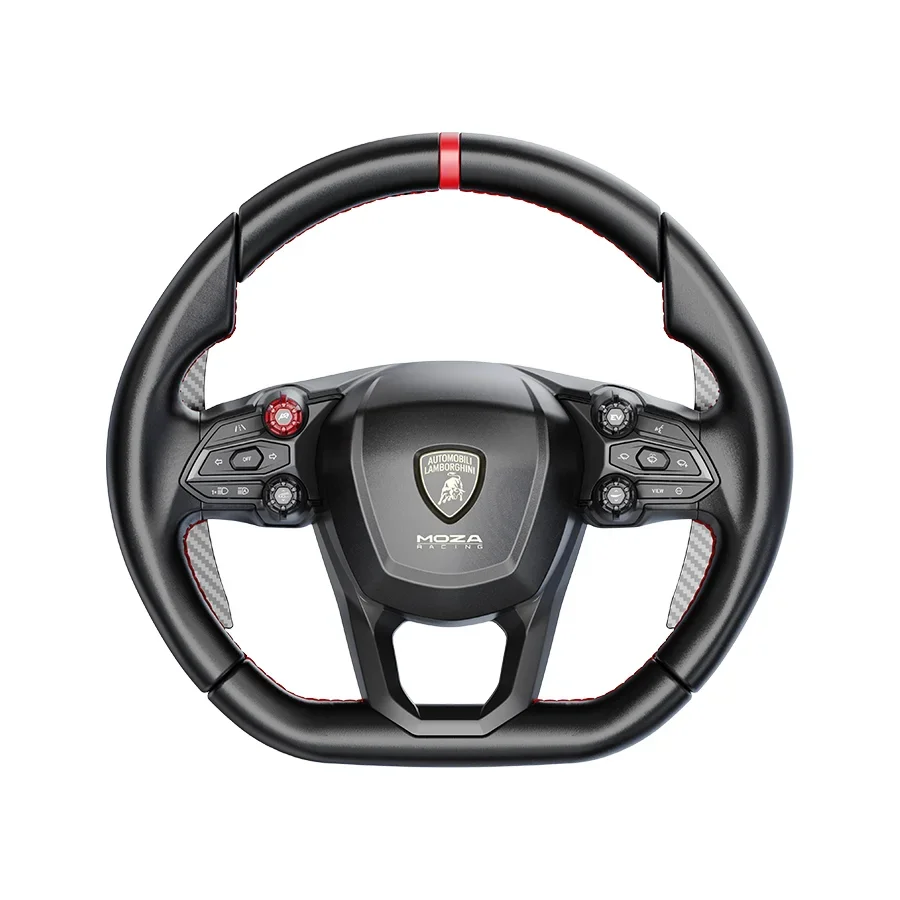

• Officially licensed and built from Lamborghini’s original CAD data, with the Revuelto’s control layout.
• 16 front and 10 rear buttons plus 4 self-centering rotaries.
• Die-cast aluminum frame; Hall-effect shift and dual clutch paddles; 340 mm, no screen.

Rim shapes to scaleDual clutch paddlesQuick release and power

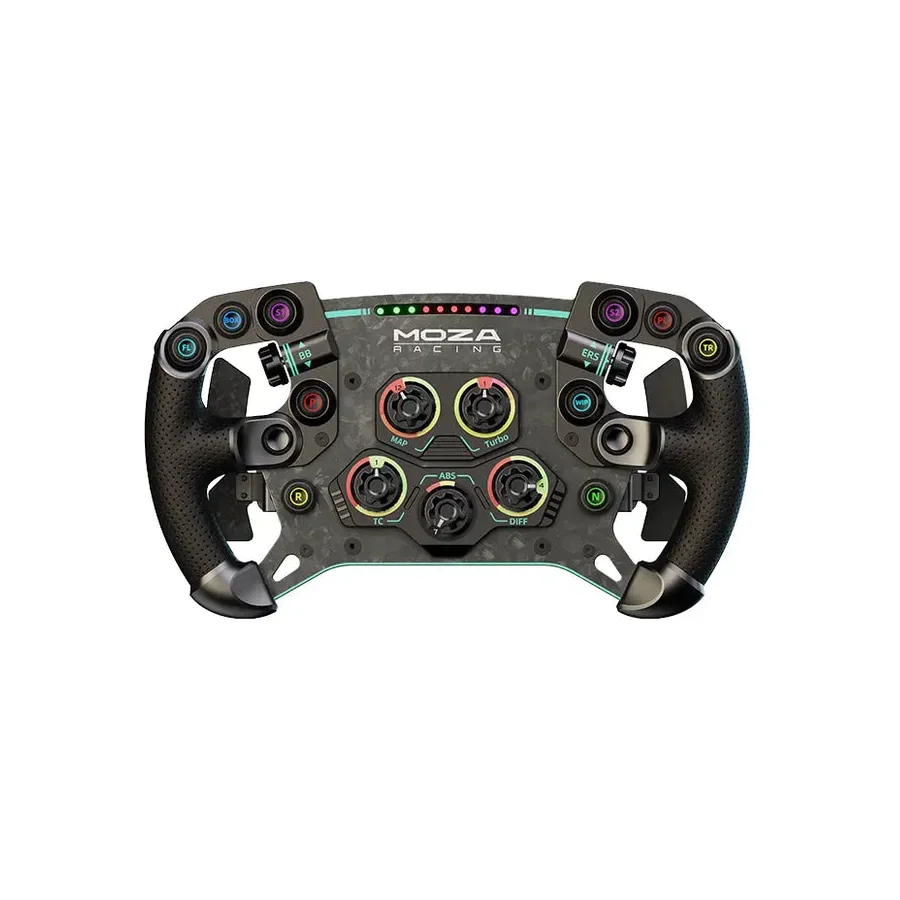

• 5 mm forged-carbon rim and face, 3 mm forged-carbon Hall-effect paddles.
• Single or dual clutch mode.
• 10 RGB buttons, 5 rotary and 2 thumb encoders, 2 joysticks; perforated microfiber leather.

Dual clutch paddlesRim shapes to scaleQuick release and power

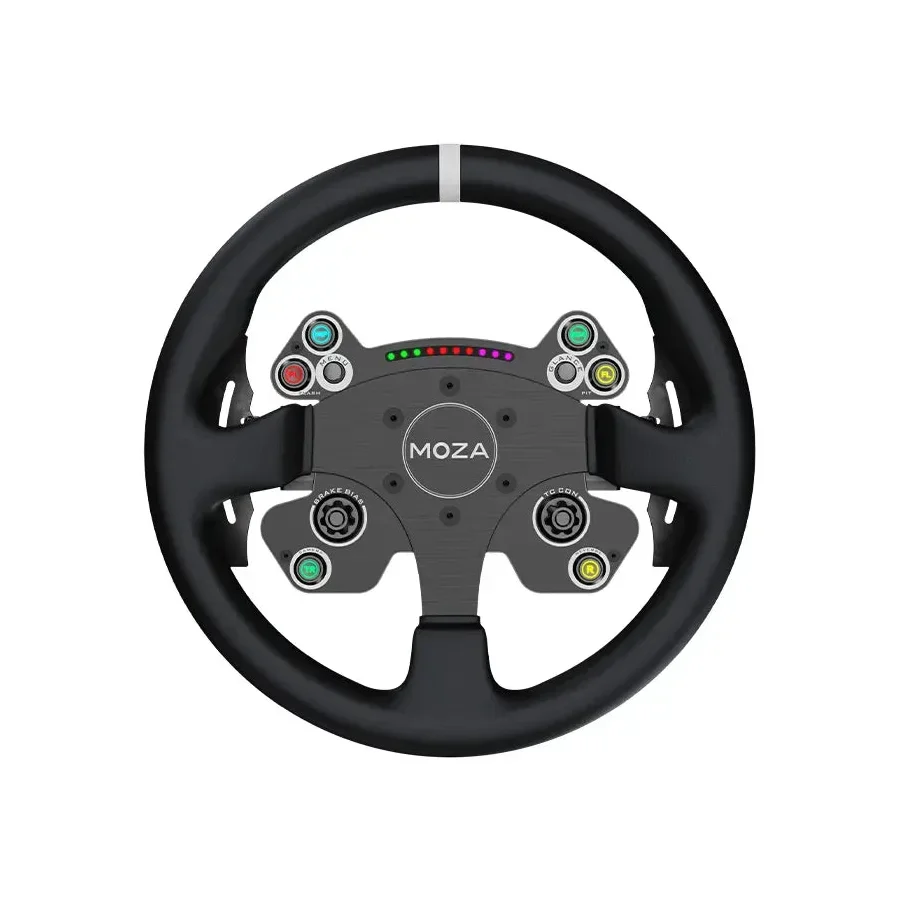

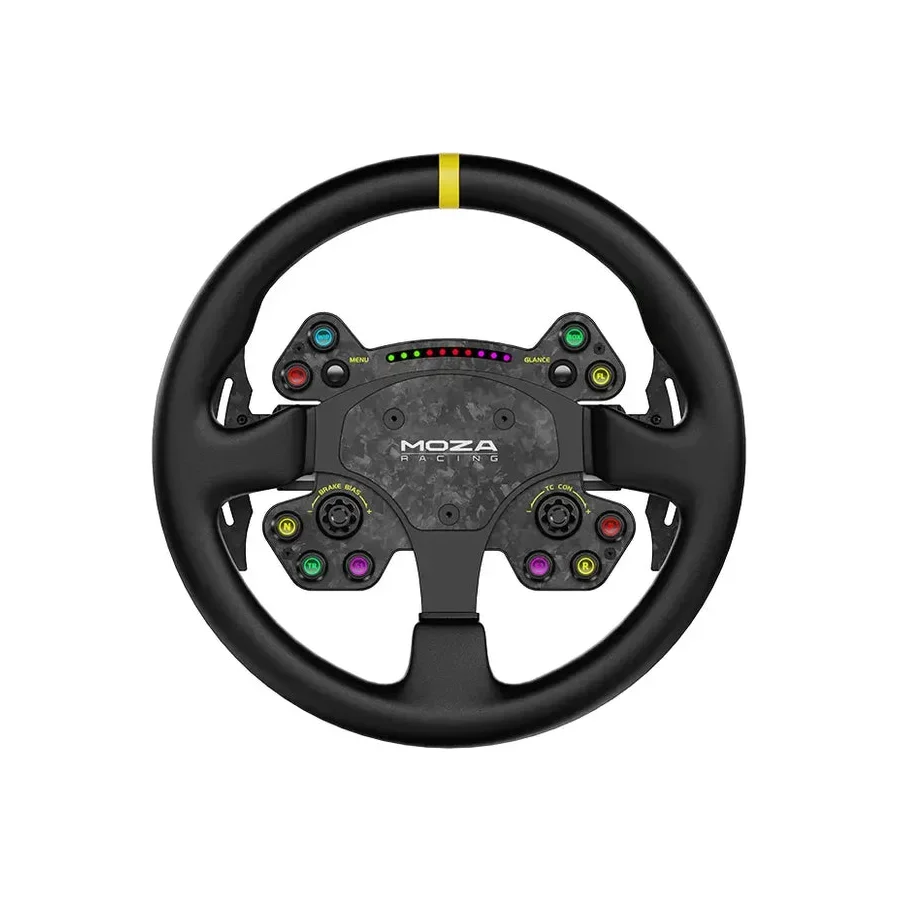

• 13 in (330 mm) round rim in genuine leather.
• Photoelectric magnetic paddles, switchable between single and dual clutch.
• Forged-carbon face, aluminum back, 10-LED sequential rev lights.

Rim shapes to scaleDual clutch paddlesQuick release and power

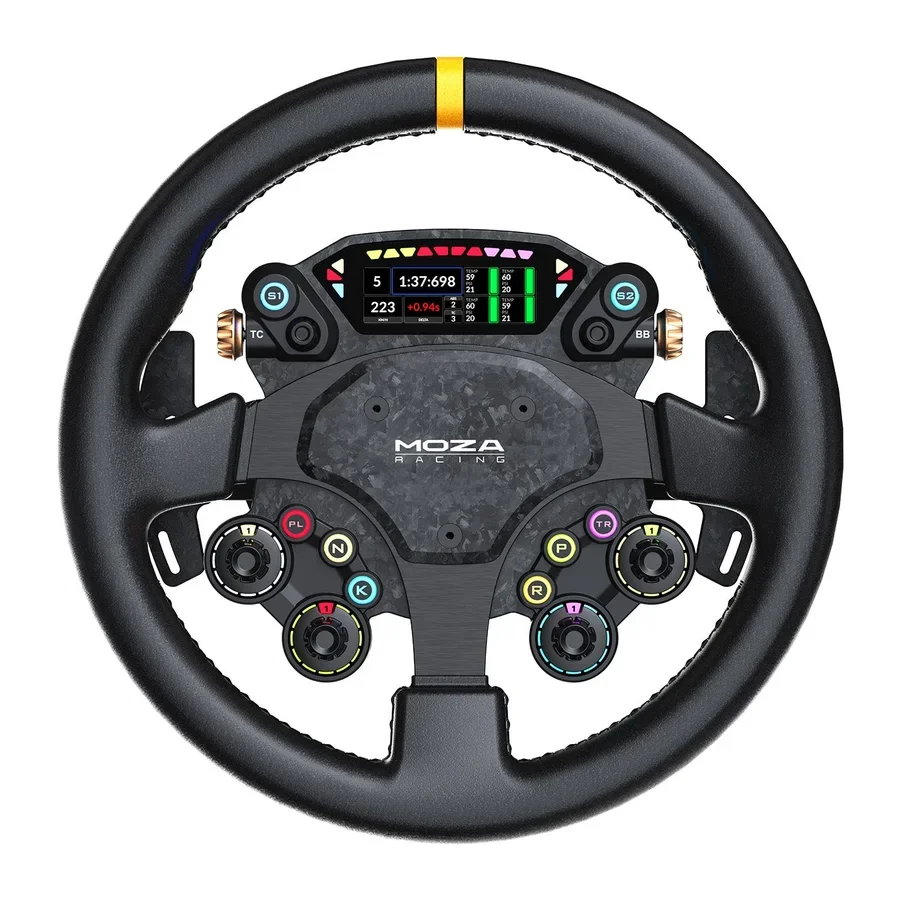

• 2.99 in screen and 6 flag lights.
• Magnetic forged-carbon Hall-effect paddles with dual clutch, expandable to 6 paddles.

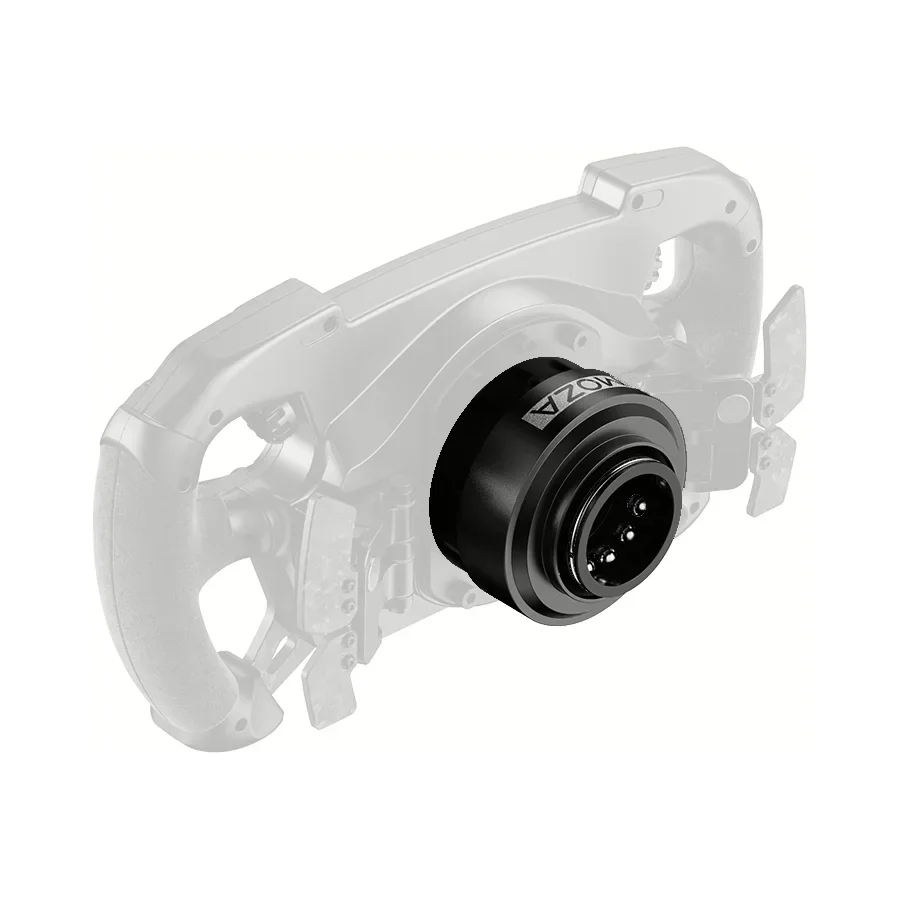

• Standard 6 × 70 mm bolt pattern, so most third-party rims fit.

Screens and lights to scaleDual clutch paddlesRim shapes to scale

• 2.99 in screen, 12 rev lights and 6 flag lights.
• 5 rotary encoders for in-race adjustments.
• Hall-effect magnetic forged-carbon paddles with dual clutch; 300 mm butterfly rim.

Screens and lights to scaleDual clutch paddlesRim shapes to scale

• 13 in round rim for “rally and touring-style racing”, in MOZA’s words.
• Contactless photoelectric magnetic shifters; aluminum face and back plates.
• 10 RGB lights, 2 rotary encoders, 2 pressable joysticks.

Good to know: No clutch paddles.

Rim shapes to scaleQuick release and power

• Hall-effect magnetic shift paddles plus dual clutch paddles, with several clutch modes.
• 70 programmable inputs; buttons with 0.25 mm travel.
• 300 mm butterfly rim in carbon-reinforced composite with TPE grips.

Dual clutch paddlesRim shapes to scaleQuick release and power

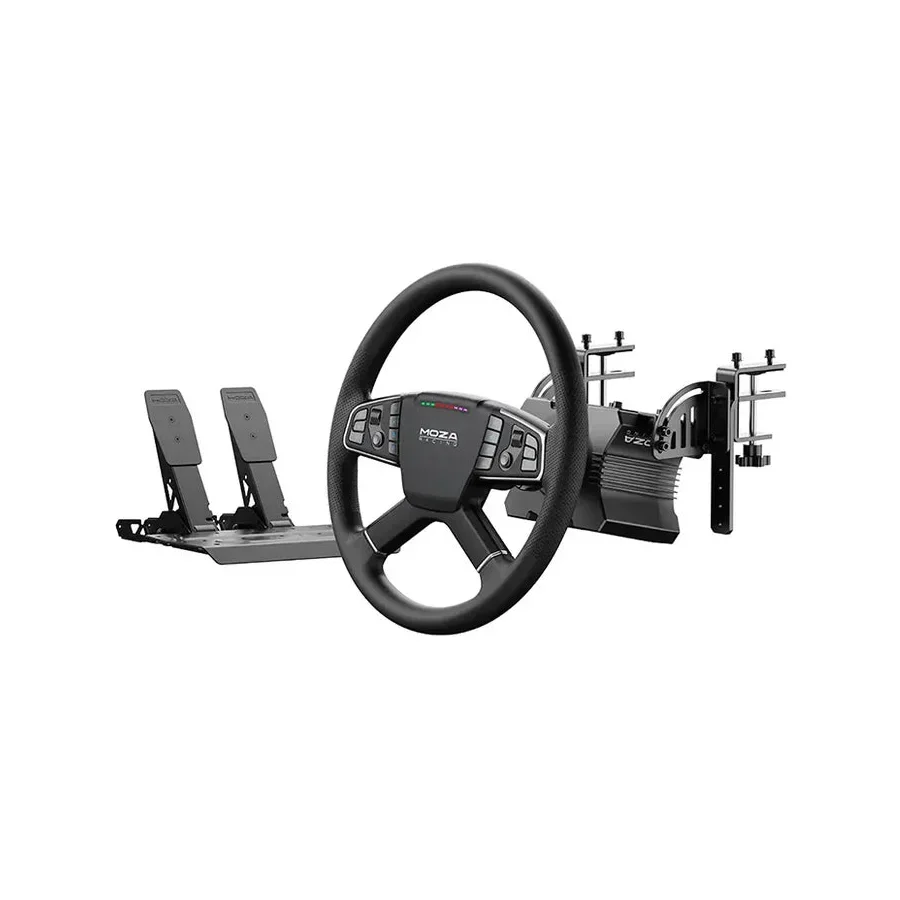

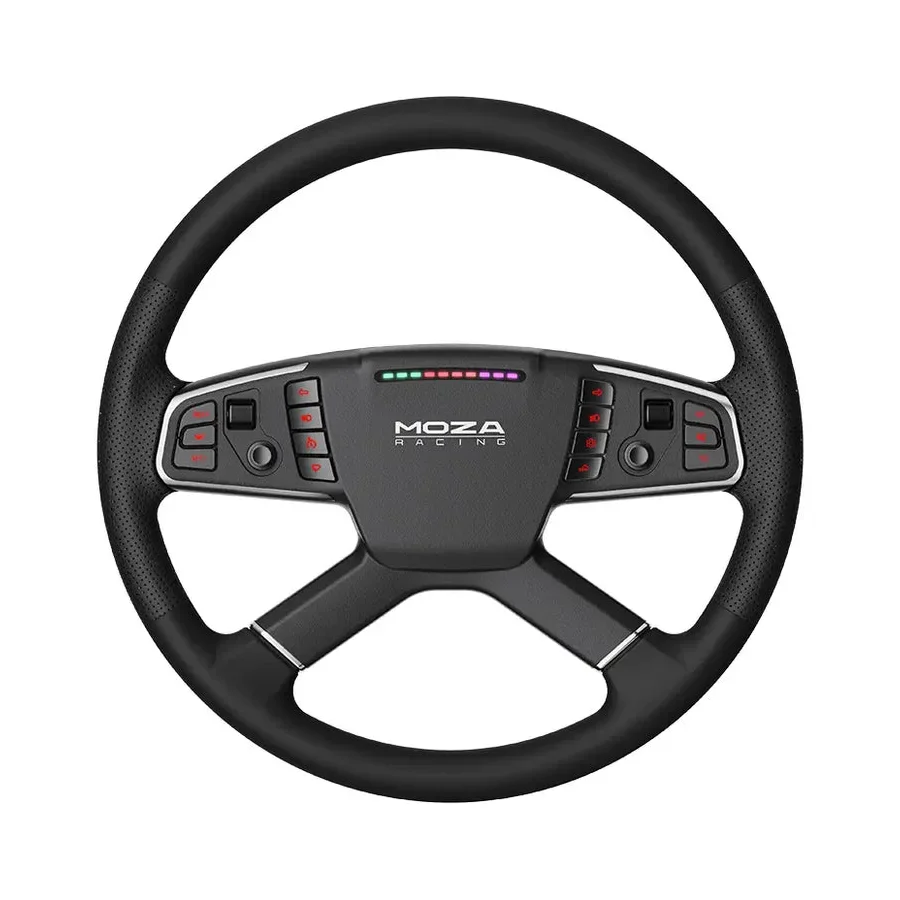

• Built for truck sims: a 400 mm four-spoke rim.
• 14 backlit buttons, 2 aluminum thumbwheels, 2 joysticks, 10 RGB lights.
• 4 mm aluminum frame, microfiber leather.

Rim shapes to scaleQuick release and power

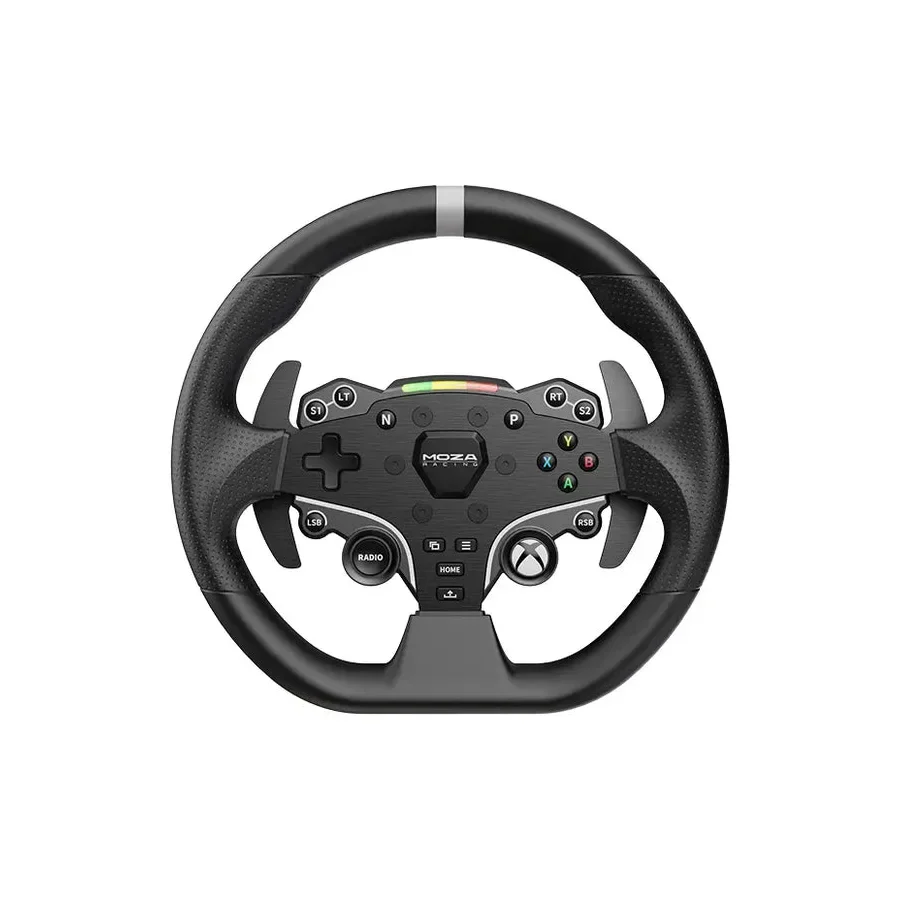

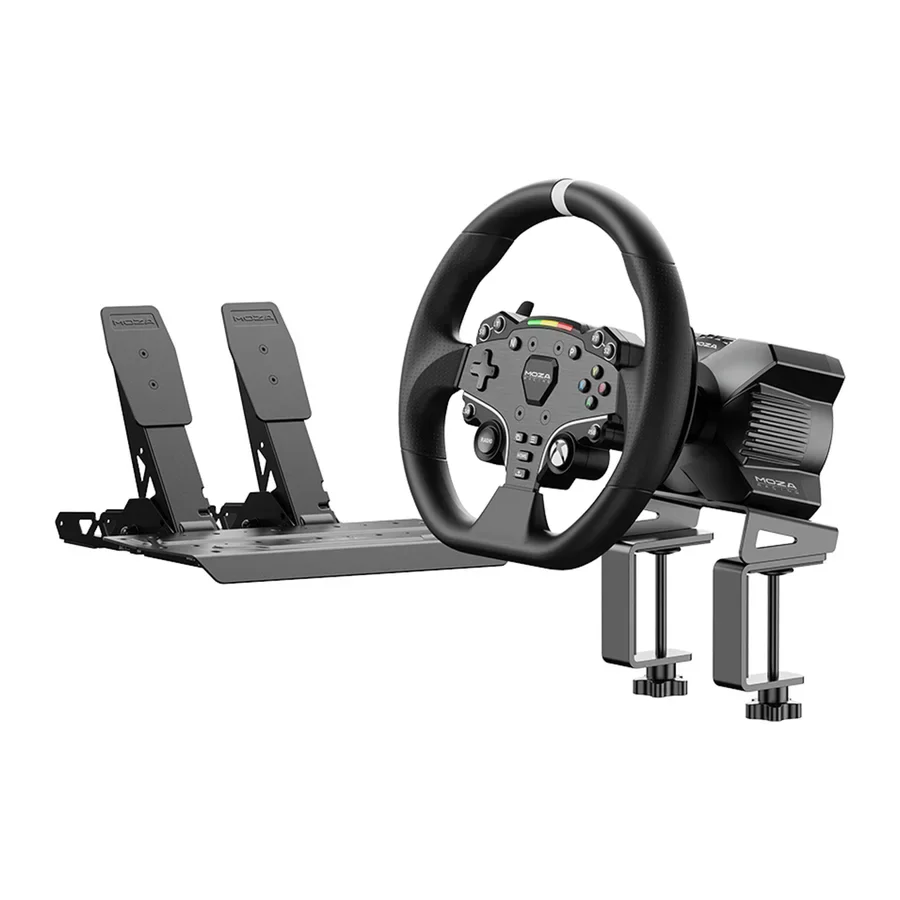

• MOZA’s Xbox license chip is built into the ESX, so a supported MOZA base runs on Xbox with it.
• The lowest-priced wheel we carry, with a solid aluminum rim and face plate.
• 280 mm, 22 inputs including 2 joysticks, 10 RGB rev lights.

Rim shapes to scaleScreens and lights to scaleQuick release and power

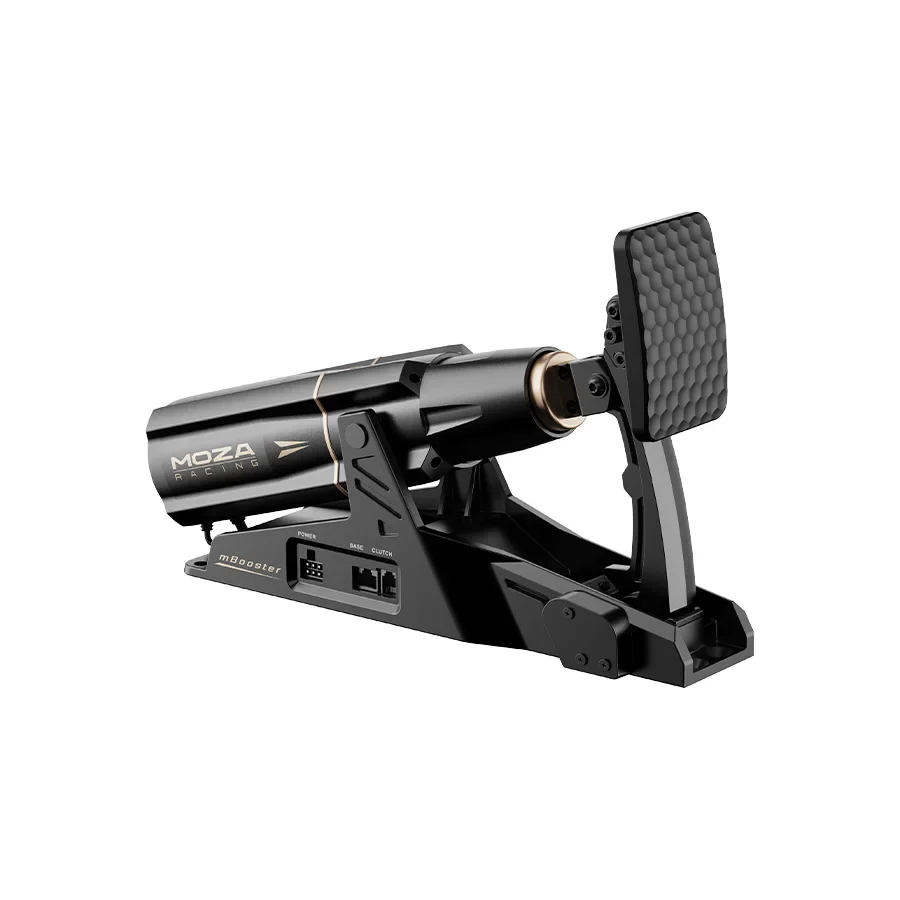

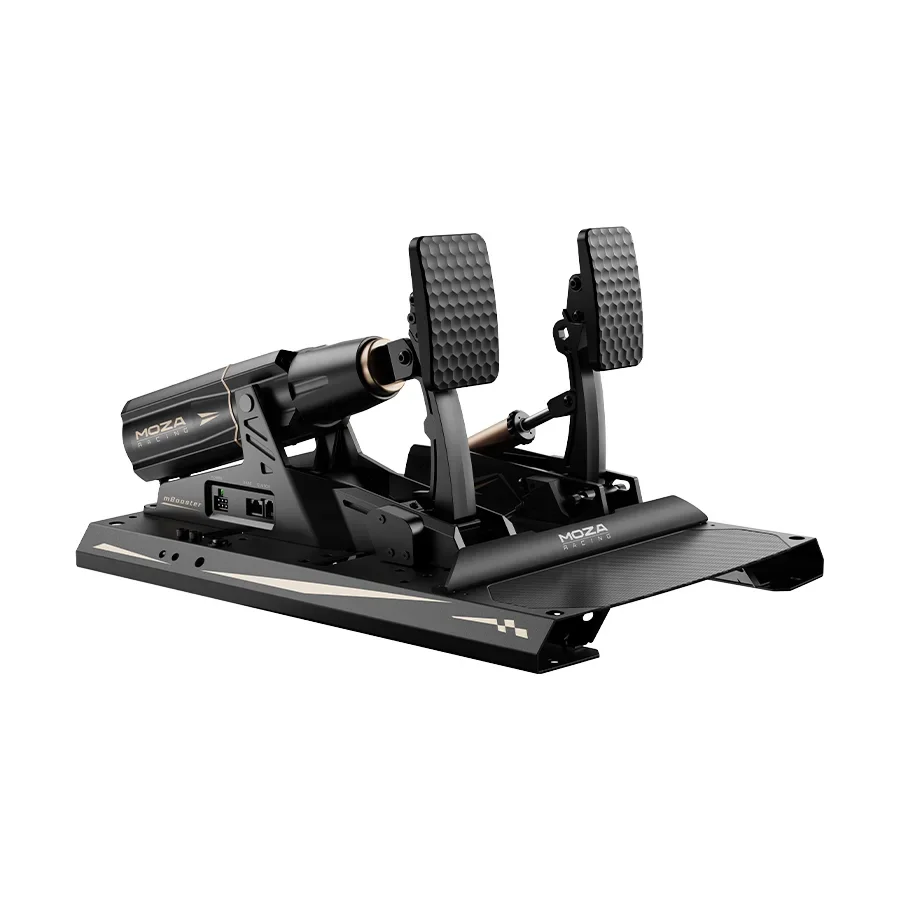

• A servo with a ball screw drives the pedal and plays telemetry through it: ABS, wheel lock-up, traction control, engine vibration, G-force and gear-shift kicks.
• Set the feel in software: one-click Pit House presets from a road car’s throttle to an F1 brake; brake travel adjustable from 17.6 to 49.7 mm.
• Threshold cue: the pedal vibrates once your pressure passes a level you set (MOZA’s example is 58% for an F4 car).
• Dual 200 kg load cells with 15-bit angle sensors, plus a 21-bit magnetic encoder; comes with a CRP2 throttle and the power supply.

Good to know: PC only. Effects work in games that send telemetry to Pit House, such as AC, ACC, F1, iRacing and rFactor 2.

Feel ABS in your footAngle sensor plus load cell

• A servo with a ball screw drives the pedal and plays telemetry through it: ABS, wheel lock-up, traction control, engine vibration, G-force and gear-shift kicks.
• Set the feel in software: one-click Pit House presets from a road car’s throttle to an F1 brake; brake travel adjustable from 17.6 to 49.7 mm.
• Threshold cue: the pedal vibrates once your pressure passes a level you set (MOZA’s example is 58% for an F4 car).

Good to know: Needs CRP2 pedals and the $35 extension plate.

Feel ABS in your foot

• 0–200 kg load cell plus a 15-bit magnetic angle sensor.
• 115 brake-feel setups, 1,764 with the brake kit; each pedal is tested past 1,000,000 presses.
• Takes all four MOZA add-ons: clutch, PHF vibration, inverted mounting and the mBooster active brake.

Angle sensor plus load cellFeel ABS in your foot

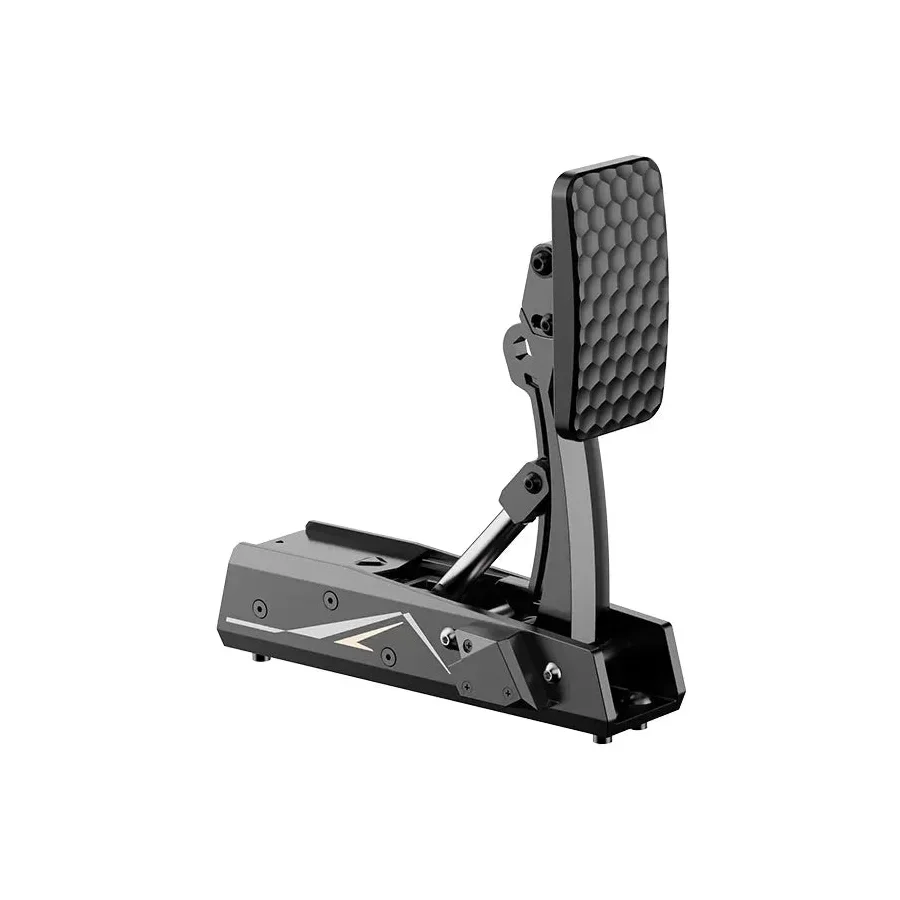

• Three-stage tunable feel with dual springs.
• Set the bite point without tools for road, touring or open-wheel cars.

Clutch feel

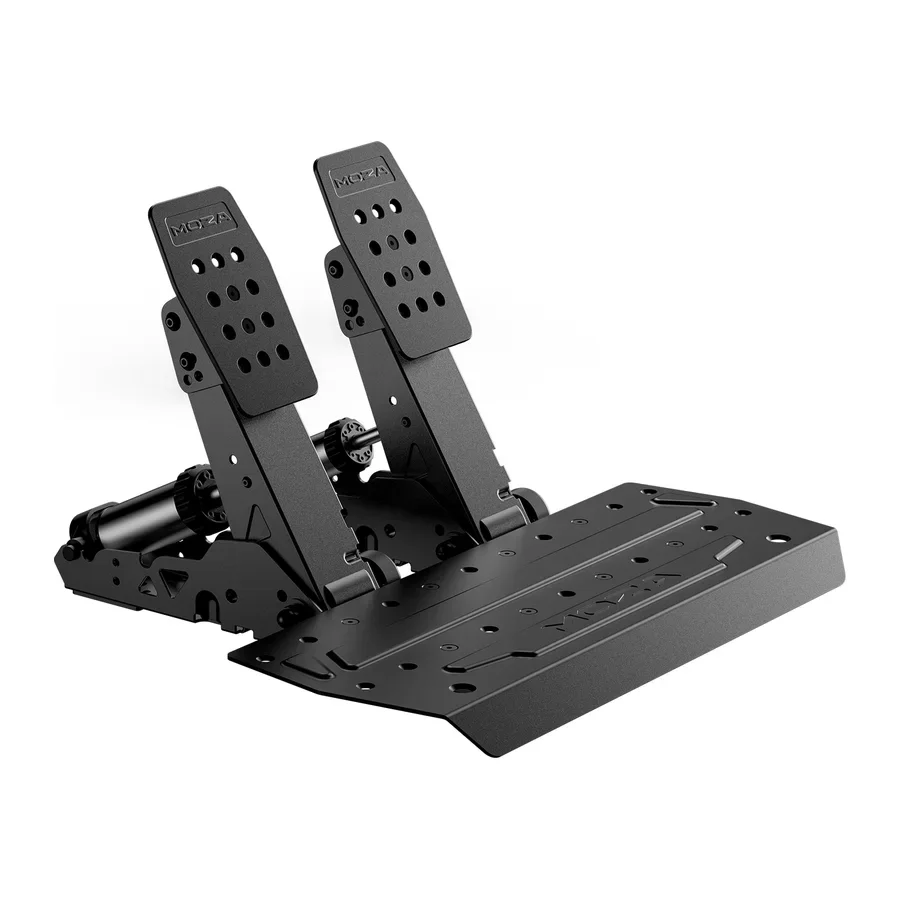

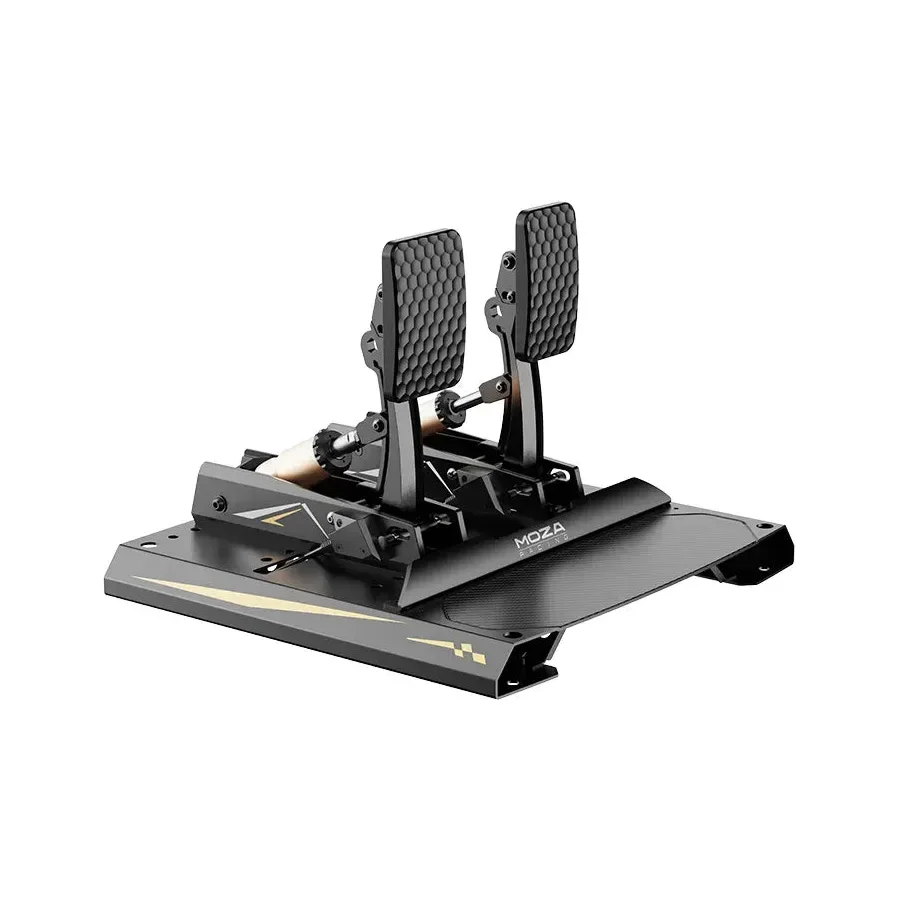

• Sensor fusion: a 15-bit angle sensor reads the start of the stroke and a 0–100 kg load cell the rest.
• The lowest-priced set here with a load-cell brake; USB to a PC with any brand of base.
• 25 brake-feel setups with the included elastomers, 1,000+ with the brake kit; the PHF vibration kit and a clutch fit.

Angle sensor plus load cellFeel ABS in your foot

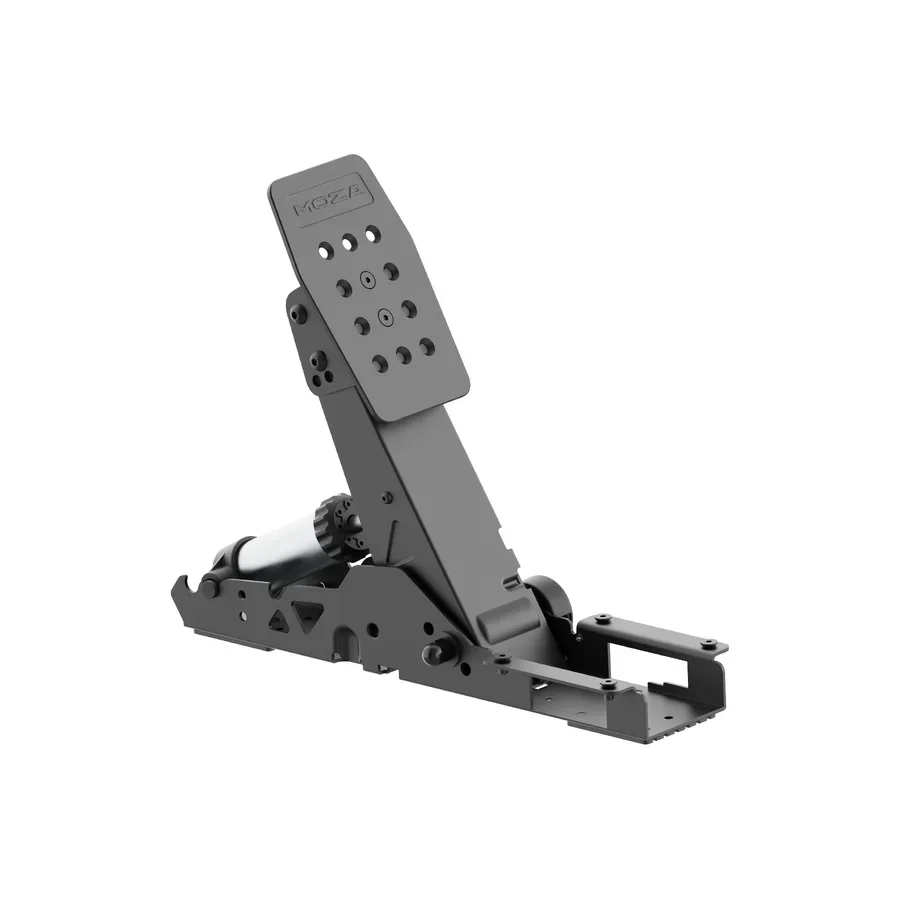

• Adds a clutch to SRP2 for $45.90.
• Height, angle and two-stage preload adjust.

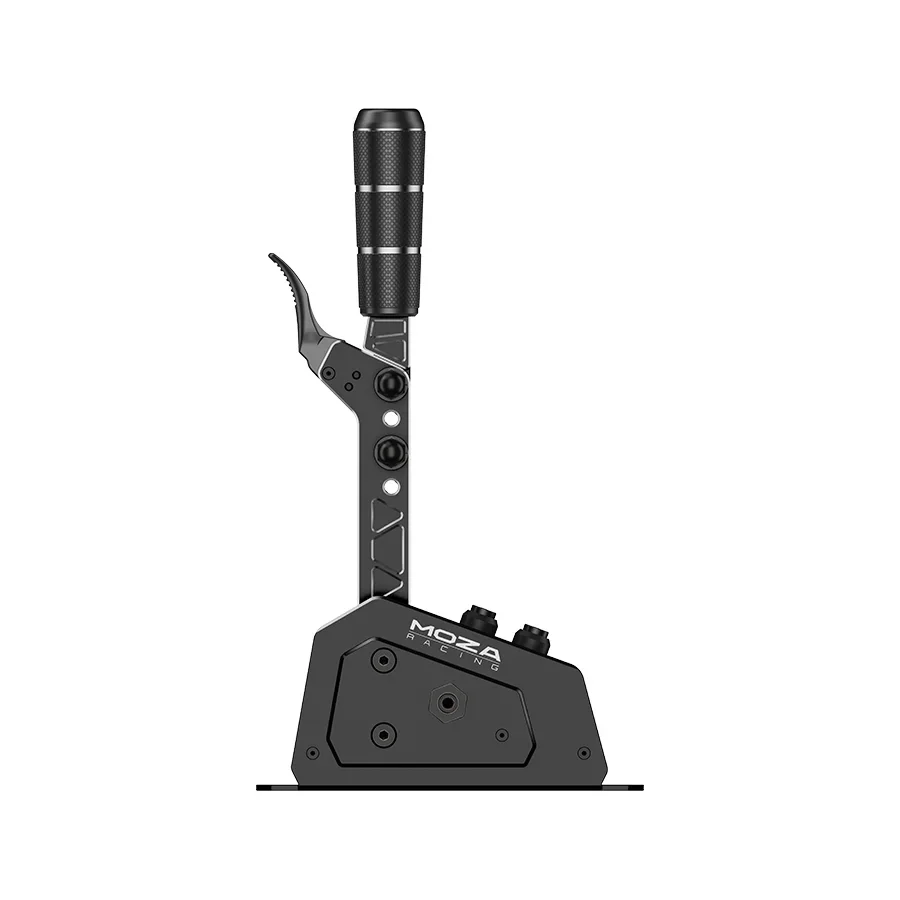

• MOZA’s patented downshift system blips the throttle for you; switch it on or off, or tune it, in Pit House.
• CNC anodized aluminum; takes standard aftermarket knobs.
• 15-bit contactless angle sensor; USB, or RJ11 to a MOZA base.

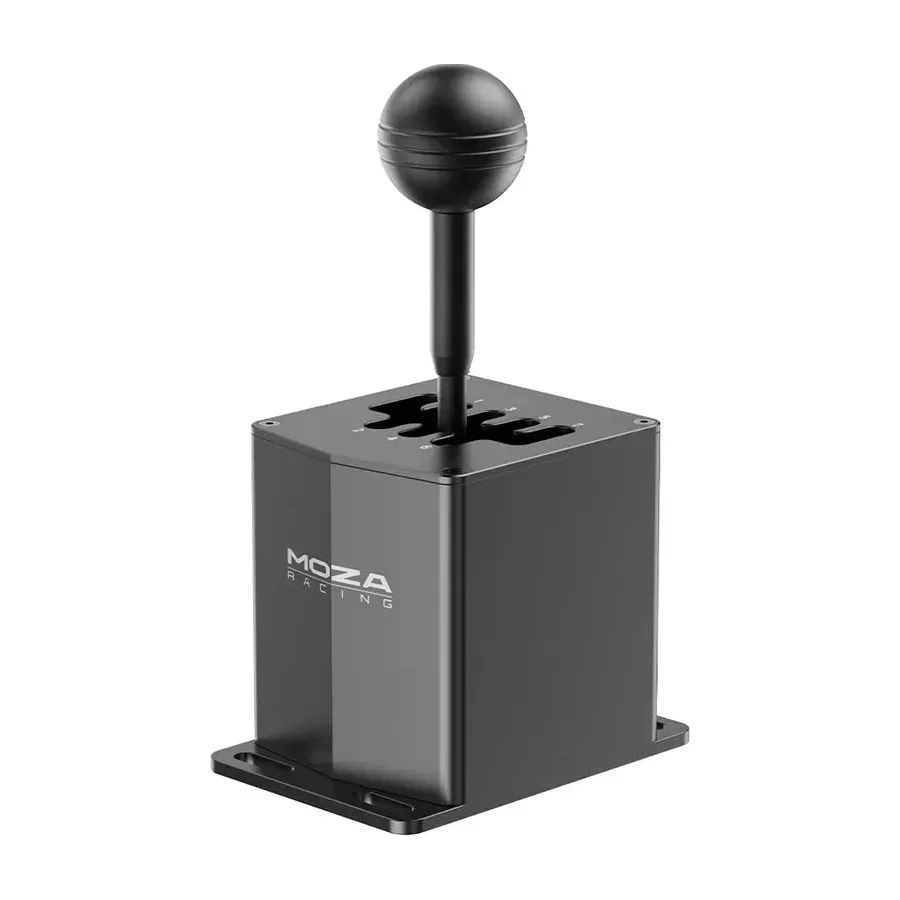

• All-metal (aluminum and steel), with an adjustable damper to tune the throw.
• Mounts forward or reversed, with 64 mm of height adjustment; 2 backlit buttons.

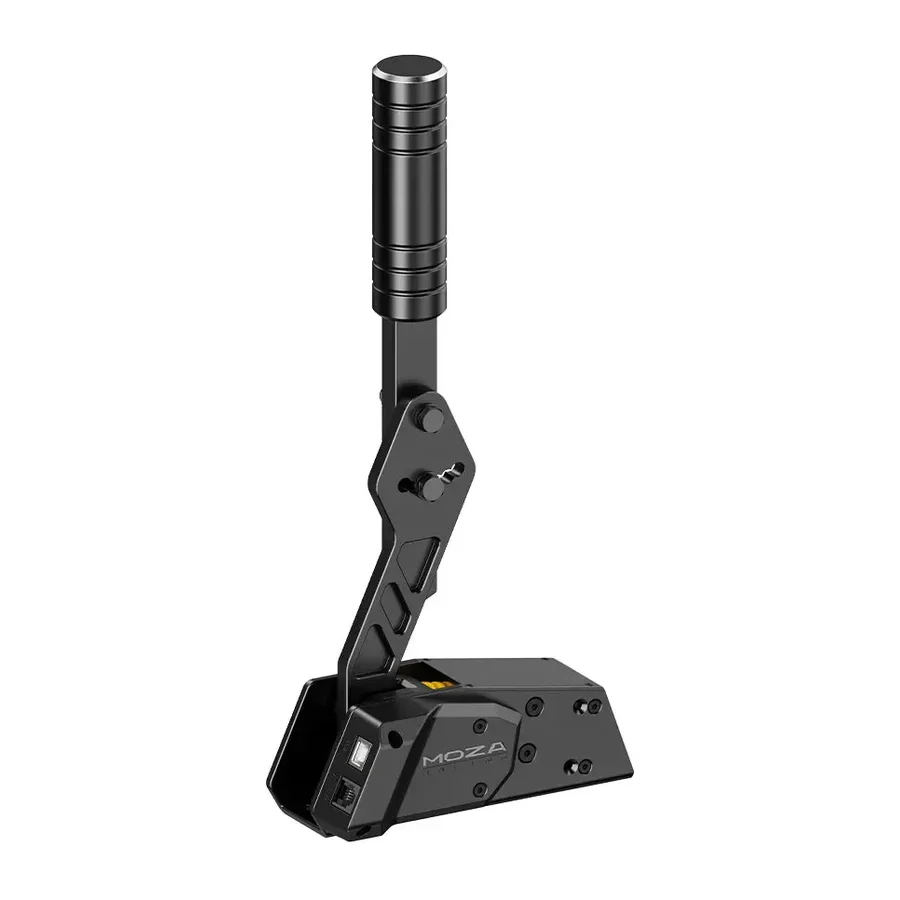

• Contactless Hall-effect sensor; USB to a PC or RJ11 to a MOZA base.

• 0.7 kg CNC aluminum; swap springs to change travel and rebound.
• Mounts horizontally or vertically.
• A 15-bit contactless sensor that reads lever position.

Handbrake: position sensor

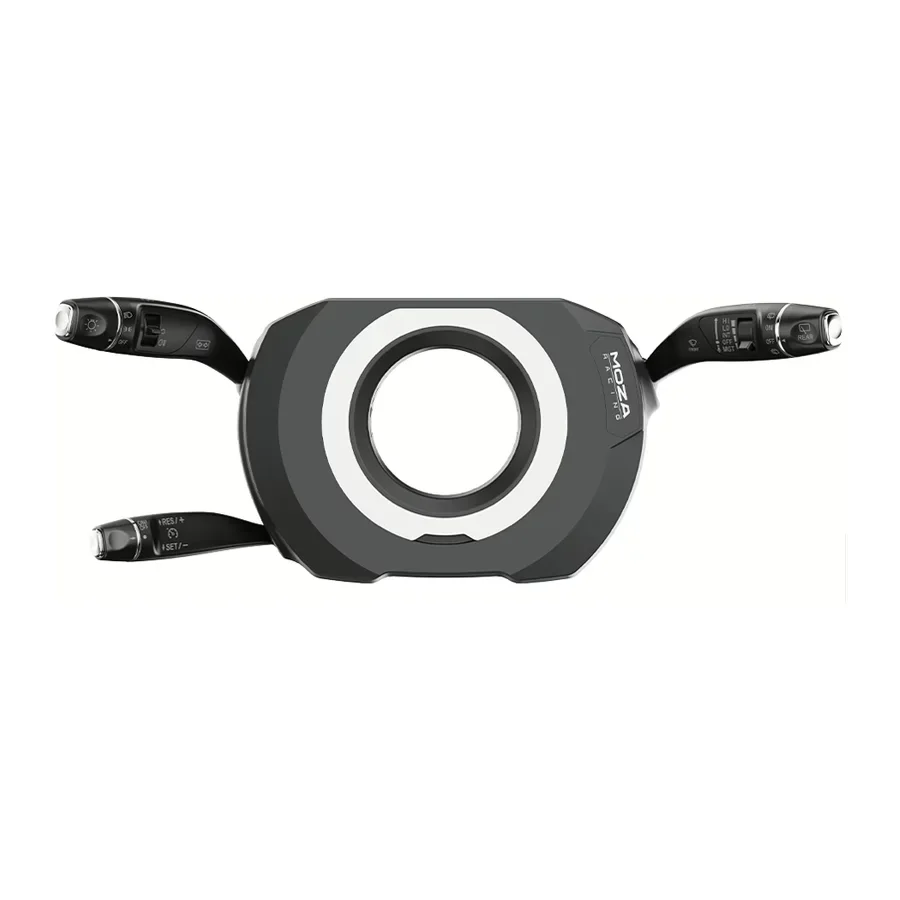

• Auto-canceling turn signals plus wiper, headlight and cruise-control stalks; 28 programmable switches.
• Standard or inverted mounting on MOZA bases with front mounting holes.

Good to know: Older R16 and R21 bases without front holes don’t fit.

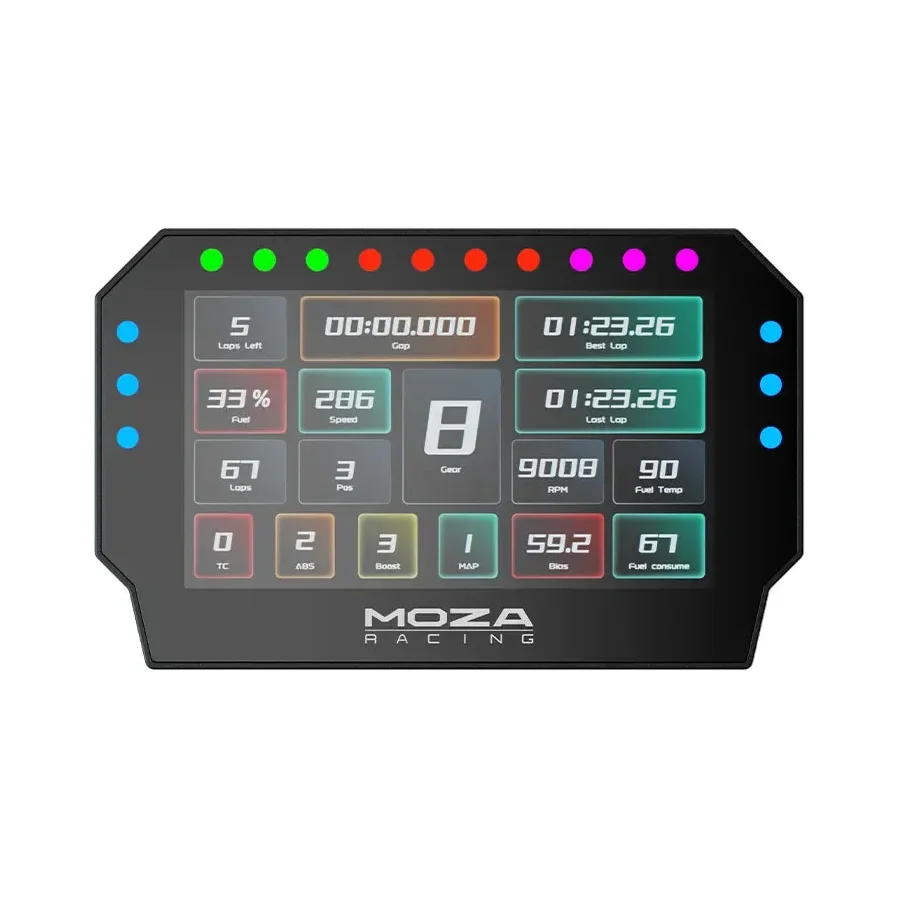

• 5 in 1280 × 720, 60 Hz touchscreen; 10 shift and 6 flag lights.
• Preset layouts, or your own made in Pit House.
• RJ11 to a MOZA base, or USB straight to a PC, so it also works with other brands’ setups.

Screens and lights to scale

• 4 ball-screw actuators move the rig in pitch, roll and heave, with vibration up to 200 Hz on top.
• AI Motion gives motion in supported games without native telemetry.
• Built-in E-stop; on power loss it lowers the platform slowly.
• 150 mm stroke, 300 mm/s; over 1 G at 250 kg, 0.45 G at the full 350 kg.

Good to know: PC only (Windows Motion Manager). MOZA rates it at 55 dB or less at 1 m.

Stopping the force

• Aluminum; 20° adjustable angle; custom pedal spacing.

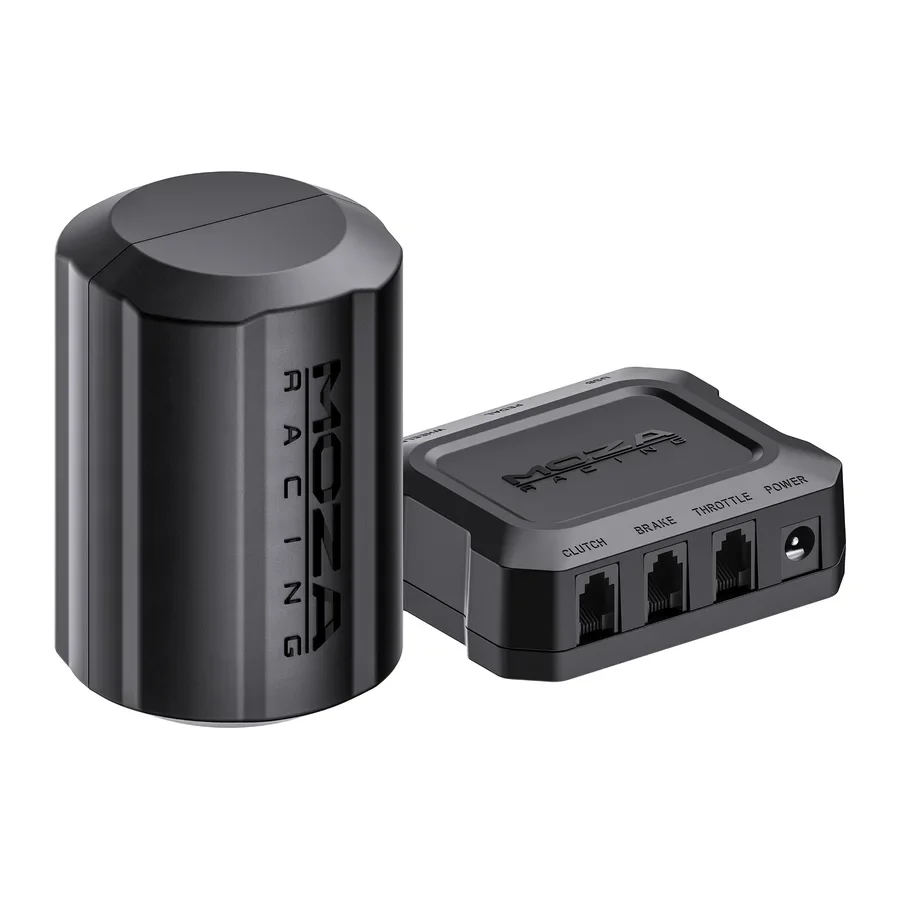

• A bolt-on vibration module for ABS, traction control, RPM, lock-up, wheel slip and gear shifts.
• 0–100 Hz frequency and 0–100% intensity.
• Fits SRP2 and CRP2; 98 g.

Good to know: It vibrates the pedal; it doesn’t move it like the mBooster.

Feel ABS in your foot
