Cube Controls Mercedes-AMG GT Edition SIM Wheel
Mercedes-AMG editionGT Wheel Developed with Mercedes-AMG
QuotedAdd to a build →
Official partner · Hardware
Cube Controls
Italian sim racing wheels, from formula wheels to GT wheels with touch screens and the Mercedes-AMG GT Edition SIM Wheel, the SP01 Core pedals and the VNM x Cube Controls bases. Official partner of SimWerk. The wheels fit your SimWerk Core or Grand; for the bases and the SP01 Core we confirm the mounting in your quote.
Official partner
Featured
Where to start.
Cube Controls CSX-3 Color Edition
Formula Wheel with a 4" Touch Screen, Color Edition
QuotedAdd to a build →
Cube Controls GT-X2
GT Wheel with a 5" Touch Screen
QuotedAdd to a build →
Cube Controls Phoenix
GT Wheel with an Absolute Center Dial
QuotedAdd to a build →
Official partner
Cube Controls on your SimWerk.
Cube Controls, the Italian sim racing brand, makes formula and GT wheels, among them the Mercedes-AMG GT Edition developed with Mercedes-AMG, and the SP01 Core pedals. It also sells the VNM x Cube Controls direct drive bases, made by VNM Simulation. SimWerk sells the range by quote.
- Mercedes-AMG GT Edition SIM Wheel: developed with Mercedes-AMG, with a genuine Mercedes-Benz badge and the same paddle shifters as the Mercedes-AMG GT Track Series and GT2 race cars
- Formula wheels: the F-CORE EVO with Formula or GT shifters, the ASTRA, the F-PRO and the CSX-3 Color Editions with its 4-inch touch screen
- GT wheels: the Phoenix, the GT-X2 with a 5-inch touch screen and the GT PRO V2 button box with your choice of nine rims
- VNM x Cube Controls direct drive bases, 18, 25 or 32 N·m, with Cube Controls’ Direct Drive Hub preinstalled, and the SP01 Core load-cell pedals
- Every wheel mounts with a formula-style hub (3 bolts, 70 mm PCD): on MOZA and Asetek Racing bases we add the quick-release adapter; on a VNM x Cube Controls base it bolts straight on
- For PC: the buttons connect with the wheel’s own cable, and by Bluetooth on the wheels that have it
- The wheels fit the Core and the Grand; for the bases and the SP01 Core we confirm the mounting in your quote. Ordering is by quote
12 products
The lineup.
Mercedes-AMG
The GT Edition SIM Wheel, developed in collaboration with Mercedes-AMG: the grip shape and the paddle shifters of the Mercedes-AMG GT Track Series and GT2 race cars, with a genuine Mercedes-Benz badge.
How to choose
- Your base decides the brand. MOZA on MOZA, Asetek on Asetek, Thrustmaster on Thrustmaster. Cube Controls and the Heusinkveld One use a standard hub: we add the adapter on MOZA or Asetek Racing bases; Cube Controls wheels bolt straight to a VNM x Cube Controls base. They are not offered on Thrustmaster.
- Console? Xbox: the MOZA ESX on a supported MOZA base. PlayStation: a Thrustmaster wheel on the T598; the GT Wheel adds PlayStation buttons and is mapped for you in Gran Turismo. Everything else is PC.
- The cars you drive set the rim shape. Formula, about 270–300 mm: open-wheel. Butterfly or D, 300–325 mm: GT. Round, 320–340 mm: road, rally and drift. The oval Hypercar: Le Mans prototypes. 400 mm: trucks.
- Screen or lights? Screens run from 2.85 in to 5.4 in. LED-only wheels often cost less and pair with a dash such as the MOZA CM2 or an on-screen overlay.
- Clutch and power. For standing starts, pick dual clutch paddles with a bite point. Wheels powered through the quick release never need charging; the wireless ones (Heusinkveld One, Cube F-PRO, F-CORE EVO, GT PRO V2, Mercedes-AMG edition) do.
Where Cube Controls fits: Formula and GT wheels on a standard 70 mm hub, wired or wireless; we add the adapter on MOZA or Asetek Racing bases, none on a VNM x Cube Controls base. PC only.
Rim shapes to scale. Outlines at true relative size.
- Formula, about 285 mm: open-wheel (this product)
- Butterfly, about 310 mm: GT (this product)
- Closed D, about 320 mm: GT, road (this product)
- Round, about 330 mm: road, rally, drift (this product)
- Dished, about 340 mm: rally, drift
- Oval, about 320 mm: prototypes
- Truck, about 400 mm: trucks
- Car types are SimWerk buying guidance.
How these features work (1)
Quick release and power. A wheel goes on the base family it was made for. Wheels on a standard hub use an adapter we add.
- MOZA quick release: MOZA bases take the 13 MOZA wheels we list.
- Asetek Racing quick release: Asetek Racing bases take the 7 Asetek Racing wheels we list.
- Thrustmaster quick release: Thrustmaster bases take the 5 Thrustmaster wheels we list.
- Cube Controls wheels and the Heusinkveld One: a standard hub with an adapter we add, on MOZA or Asetek Racing bases.
- Power: through the quick release, a USB cable, or wireless with a battery.
- Through the quick release
- USB cable
- Wireless, battery

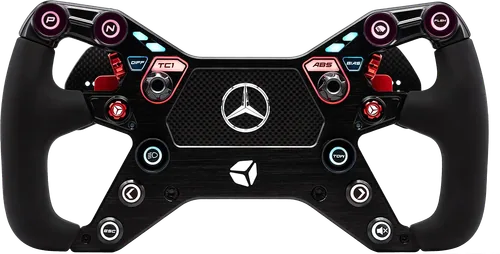

Cube Controls Mercedes-AMG GT Edition SIM Wheel
Mercedes-AMG editionGT Wheel Developed with Mercedes-AMG
QuotedThe Cube Controls x Mercedes-AMG GT wheel: the grip shape and paddle shifters of the real Mercedes-AMG GT Track Series and GT2 cars, a carbon badge with a genuine Mercedes-Benz logo, and USB and Bluetooth. Listed with the red hub.
Specs
- Size
- 320 mm grip to grip; grips up to 43 mm thick
- Controls
- 10 backlit buttons, 2 front and 2 thumb RGB encoders, 2 multi-directional joysticks with encoders
- Paddles
- The same paddle shifters as the Mercedes-AMG GT Track Series and GT2 race cars
- Badge
- Carbon badge with a genuine Mercedes-Benz logo, as on the GT2 car
- Build
- Die-cast back enclosure and main frame; silicone rubber grips
- Connection
- USB and Bluetooth, Q-CONN magnetic cable
- Battery
- 2000 mAh, up to 3 hours
- Hub
- Red Cube Controls hub for formula-style quick releases (3 bolts, 1 in, 70 mm PCD); the wheel is also sold without a hub
- Weight
- 1300 g
- Platforms
- PC
What sets it apart
- Paddles “exactly the same as used on the real Mercedes-AMG Track Series and GT2 cars”, with the same grip shape.
- A carbon badge with a genuine Mercedes-Benz logo; developed in collaboration with Mercedes.
- USB or Bluetooth; Cube Controls quotes up to 3 hours per charge from 2,000 mAh.
Formula wheels
Open and closed formula wheels with carbon-fiber plates, magnetic shifters and clutches. The F-CORE EVO comes with Formula or GT shifters; the CSX-3 adds a 4-inch touch screen.
How these features work (2)
Dual clutch paddles. Hold one paddle at the bite point, release the other at the start.
- 1: both clutch paddles pulled, clutch fully in.
- 2: one paddle released; the other holds the clutch at the bite point.
- 3: ease the second paddle out to launch.
- This wheel: launch control.
- Illustrative.
Screens and lights to scale. Each screen at its true diagonal. LED-only wheels often cost less and pair with a dash or an on-screen overlay.
- 2.85 in round touch
- 2.99 in
- 4 in touch (this product)
- 4.3 in
- 5 in touch (this product)
- 5.4 in OLED

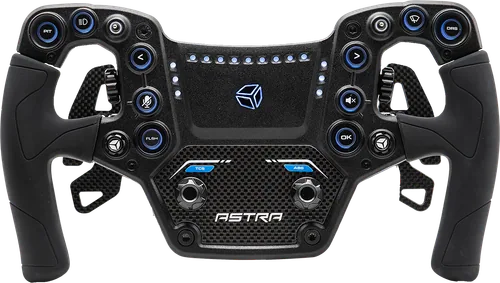

Cube Controls ASTRA
Formula Wheel, 10 RGB Buttons, 2 Clutches
QuotedA formula wheel with an aluminum body and a carbon-fiber plate, silenced short-travel shifters and two clutches.
Specs
- Size
- 29.5 cm grip to grip; grips up to 41 mm
- Controls
- 10 RGB buttons, 2 toggles, 2 front and 2 thumb encoders, 2 multi-directional joysticks with encoders
- Paddles
- CNC-machined shifters with carbon-fiber paddles, 2 clutches, launch control
- Build
- Die-cast aluminum body, 4 mm carbon-fiber plate
- Connection
- USB, Q-CONN magnetic cable
- Hub
- Included with ASTRA Premium; sold separately with the Base
- Weight
- 1150 g with the hub
- Platforms
- PC
What sets it apart
- CNC shifters that Cube Controls calls “silenced”, with short travel.
- 2 clutches with launch control; custom spring options.
- 1,150 g including hub; SimHub support.
Good to know: The hub is included only with the Premium version.

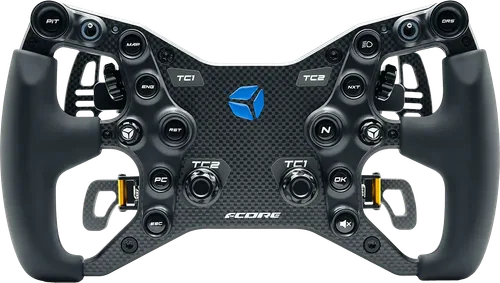

Cube Controls F-CORE EVO
Formula Wheel, Formula or GT Shifters
QuotedA closed formula wheel with new full-metal encoders, USB and Bluetooth, and your choice of shifters: the Formula version with the CSX-3’s R-Spec shifters (black or blue), the GT version with Cube Controls’ motorsport shifters (red or black). Quoted with its hub.
Specs
- Size
- 29 cm grip to grip; grips up to 43 mm
- Controls
- 12 buttons, 2 toggles with status LED, 2 front and 2 thumb encoders (full metal), joystick with encoder
- Shifters
- Formula: R-Spec, as on the CSX-3. GT: Cube Controls’ motorsport shifters
- Versions
- Formula Black, Formula Blue, GT Red, GT Black; with or without clutches
- Clutches
- Optional, with launch control
- Faceplate
- 4 mm carbon fiber on a die-cast aluminum body
- Connection
- USB and Bluetooth, Q-CONN magnetic cable
- Battery
- 2000 mAh
- Hub
- Sold separately: for formula-style quick releases (3 bolts, 1 in, 70 mm PCD); we quote the wheel with it
- Platforms
- PC
What sets it apart
- New full-metal encoders, which Cube Controls says improve feel and precision.
- Two shifters to choose from: the Formula version has the CSX-3’s R-Spec shifters, the GT version Cube Controls’ motorsport shifters.
- USB and Bluetooth dual mode with a 2,000 mAh battery; a 4 mm carbon-fiber plate on a die-cast aluminum body.
- 29 cm grip to grip, 43 mm grips. The hub for 70 mm quick releases is sold separately; we quote the wheel with it.
Rim shapes to scaleQuick release and powerDual clutch paddles

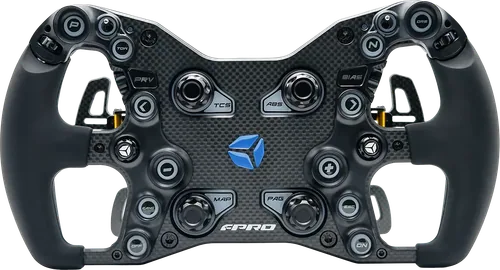

Cube Controls F-PRO Color Edition
Formula Wheel, USB and Bluetooth, Color Edition
QuotedA formula wheel with a pure carbon-fiber plate, backlit buttons, 10 encoders and dual-mode USB and Bluetooth. The 2025 Color Edition comes in black, red or blue; the Classic F-PRO is also available.
Specs
- Size
- 28.2 cm grip to grip; grips up to 45 mm
- Controls
- 12 backlit buttons, 2 toggles, 4 front encoders, 2 thumb encoders and 2 in the grips, 2 joysticks
- Paddles
- Magnetic switchless shifter paddles with adjustable stops, clutches, launch control
- Faceplate
- Carbon fiber on a die-cast aluminum body
- Connection
- USB and Bluetooth, Q-CONN magnetic cable
- Battery
- 2000 mAh
- Hub
- For formula-style quick releases (3 bolts, 1 in, 70 mm PCD)
- Weight
- 1100 g
- Platforms
- PC
- Versions
- Color Edition (2025): black, red or blue, new soft-touch grips, revised R-Spec shifters. Classic also available
What sets it apart
- Magnetic, switchless, zero-play short-throw paddles.
- USB or Bluetooth, 2,000 mAh: Cube Controls’ specs say up to 4 hours; its FAQ says 20–50 hours, depending on LED brightness.
- 10 encoders, 12 RGB buttons, 2 clutches with launch control; 1,100 g.
- 2025 Color Edition: black, red or blue, with new soft-touch grips and revised R-Spec shifters. The Classic F-PRO is also available.
Quick release and powerDual clutch paddlesRim shapes to scale

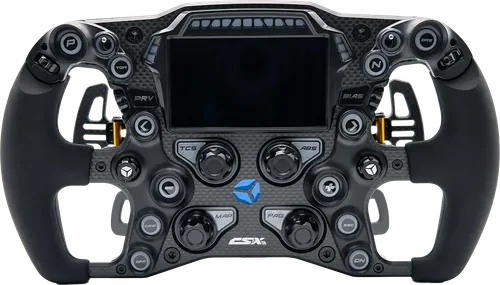

Cube Controls CSX-3 Color Edition
Formula Wheel with a 4" Touch Screen, Color Edition
QuotedThe F-PRO’s formula layout with a full-color 4-inch touch screen and 17 RGB LEDs, with SimHub support. 4 or 6 paddles. The 2025 Color Edition comes in black, red or blue; the Classic CSX-3 is also available.
Specs
- Display
- 4 in touch screen, 800 × 480
- LEDs
- 17 RGB
- Size
- 28.2 cm grip to grip; grips up to 45 mm
- Controls
- 12 backlit buttons, 2 toggles, 4 front encoders, 2 thumb encoders and 2 in the grips, 2 joysticks
- Paddles
- Magnetic switchless shifter paddles and clutches; 4 or 6 paddles
- Faceplate
- Pure carbon fiber on a die-cast aluminum body
- Connection
- USB, Q-CONN magnetic cable; native SimHub support
- Hub
- For formula-style quick releases (3 bolts, 1 in, 70 mm PCD)
- Weight
- 1143 g
- Platforms
- PC
- Versions
- Color Edition (2025): black, red or blue, new grips, revised R-Spec shifters. Classic also available
What sets it apart
- 4 in 800 × 480 touchscreen with native SimHub dashboards.
- 4 or 6 paddles, launch control; 17 RGB lights, 12 buttons.
- 1,143 g; USB (Q-CONN).
- 2025 Color Edition: black, red or blue, with new grips and revised R-Spec shifters. The Classic CSX-3 is also available.
Screens and lights to scaleDual clutch paddlesQuick release and power
GT wheels
GT wheels, from the Phoenix to the GT-X2 with its 5-inch touch screen, and the GT PRO V2 button box with nine rims to choose from.

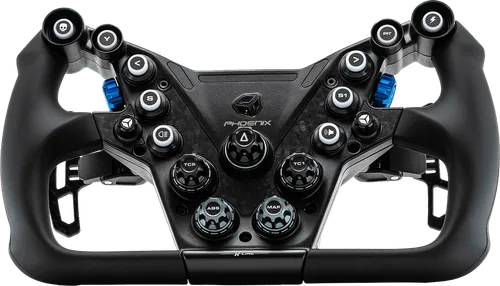

Cube Controls Phoenix
GT Wheel with an Absolute Center Dial
QuotedA die-cast wheel with CNC-machined grip frames, 10 RGB buttons, an absolute center dial and carbon-fiber shift paddles. Listed in the Base version.
Specs
- Size
- 30 cm grip to grip; grips up to 46 mm
- Controls
- 10 RGB buttons, 4 front encoders, 1 absolute dial, 2 thumb encoders, 2 joysticks with encoders
- Paddles
- CNC-machined shifters with carbon-fiber paddles
- Versions
- Base: classic hub, no clutch; Premium: 5-axis CNC aluminum hub, 1 clutch; Extreme: 3D-printed titanium hub, 2 clutches
- Build
- Die-cast aluminum body, CNC-machined aluminum grip frames
- Connection
- USB, Q-CONN magnetic cable; USB-C pass-through; 1000 Hz polling
- Weight
- 1266.8 g (Base), 1308.4 g (Premium), 1432.4 g (Extreme)
- Platforms
- PC
What sets it apart
- CNC-machined shifter with carbon paddles. Base has no clutch, Premium has 1, Extreme has 2.
- The Extreme version has a 3D-printed titanium hub made with generative design.
- 46 mm grips; 1000 Hz polling.
Dual clutch paddlesRim shapes to scaleQuick release and power

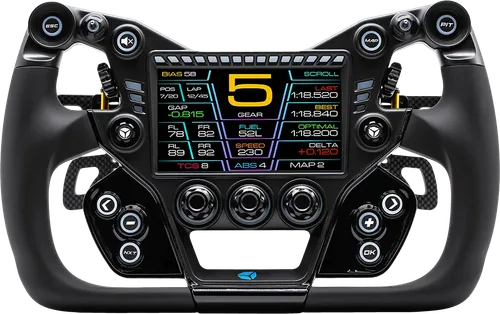

Cube Controls GT-X2
GT Wheel with a 5" Touch Screen
QuotedA GT wheel with a 5-inch touch screen, 15 RPM LEDs, Hall-sensor paddles with aluminum shifters and clutches, and a choice of 30 or 32 cm grips.
Specs
- Display
- 5 in touch screen, 854 × 480
- LEDs
- 15 RGB RPM LEDs, 3 + 3 flag LEDs
- Rim
- 300 or 320 mm
- Controls
- 10 RGB buttons, 2 front and 2 back toggles, 2 front and 2 thumb encoders, 2 joysticks
- Paddles
- Hall-sensor paddles: 2 aluminum shifters, 2 clutches
- Build
- Carbon-reinforced nylon front plate (black, white, green or red), die-cast aluminum body
- Connection
- USB, Q-CONN magnetic cable; SimHub
- In the box
- Wheel, hub, cable
- Weight
- 1408 g
- Platforms
- PC
What sets it apart
- 5 in 854 × 480 touchscreen, the largest LCD on a wheel here.
- Hall-effect aluminum shifters plus 2 aluminum clutches.
- Choice of 300 or 320 mm grips.
Screens and lights to scaleDual clutch paddlesRim shapes to scaleQuick release and power

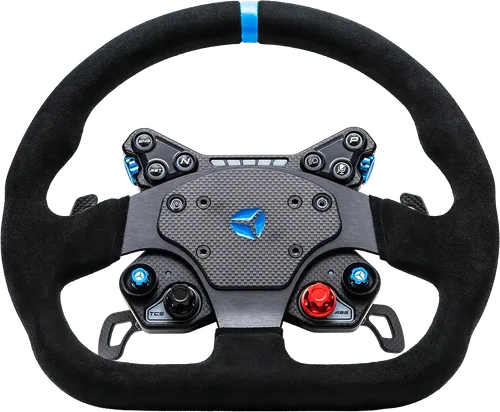

Cube Controls GT PRO V2
GT Button Box with Your Choice of Nine Rims
QuotedThe GT PRO V2 button box with Cube Controls’ machined R-Spec shifters, with Bluetooth or cable, on the rim you pick: the 320 mm GT-Cube Pro as standard, the GT-Cube Sport, the flat-top GT-Zero and GT Zero Rubber, or a Reparto Corse rim.
Specs
- Rims
- GT-Cube Pro (320 mm D, standard), GT-Cube Sport (320 mm D), GT-Zero (298 mm flat top, suede), GT Zero Rubber (298 mm flat top, TPU rubber)
- Reparto Corse rims
- Suede (298 mm D), Perforated (320 mm D), Zero Suede and Zero Leather (298 mm flat top), Round Suede (320 mm round)
- Controls
- 6 backlit buttons, 2 toggles, 2 front RGB and 2 thumb encoders, 2 joysticks
- Paddles
- Magnetic switchless shifter paddles; 2 or 4 paddles (with clutch levers)
- Build
- Carbon-fiber plate, die-cast aluminum body
- Connection
- Bluetooth or USB, Q-CONN cable
- Battery
- 1500 mAh
- In the box
- Button box, rim, hub, cable
- Platforms
- PC
What sets it apart
- Pick one of nine rims: D-shaped, round or flat-top Zero, in suede, leather or rubber. The 320 mm GT-Cube Pro is the standard one.
- The Reparto Corse Zero Suede and Round Suede rims are hand-crafted in suede by Italian artisans, in Cube Controls’ words.
- Machined aluminum R-Spec magnetic shifters; 2 or 4 paddles.
- Bluetooth or USB (Q-CONN cable), 1,500 mAh battery.
Wheel bases

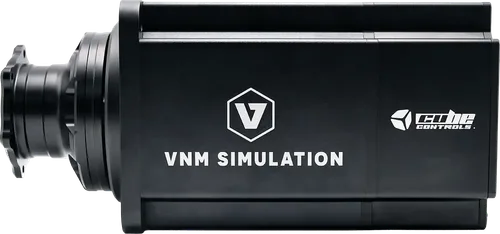

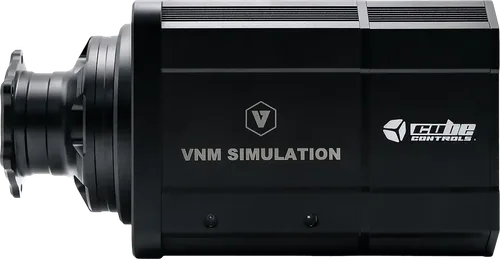

VNM x Cube Controls Direct Drives, made by VNM Simulation and sold by Cube Controls: 18, 25 or 32 N·m max, with Cube Controls’ Direct Drive Hub preinstalled, so Cube Controls wheels bolt straight on. We confirm the mounting on your Core or Grand in your quote.
How to choose
- Platform first. PlayStation: the T598 is the only base here that runs on it. Xbox: a MOZA R12 V2, R16 Ultra or R25 Ultra with the ESX wheel. PC: any of them.
- The wheel you want picks the brand. MOZA wheels need a MOZA base; Asetek wheels an Asetek base (the RaceView display wheels a Forte or Invicta); Thrustmaster wheels, including the Ferrari licensed SF-25 and 488 GT3, a Thrustmaster base. Cube Controls wheels and the Heusinkveld One go on a MOZA or Asetek Racing base with an adapter we add; Cube Controls wheels bolt straight to a VNM x Cube Controls base.
- Compare torque like with like. MOZA R9 and R12 are rated at peak, the Ultras sustained, Thrustmaster constant, Asetek Forte and Invicta at a level held for up to 40 s, and the Initium and the VNM x Cube Controls bases at max. 12 N·m peak is not 10 N·m constant, and more torque is headroom, not a setting you must run.
- Budget the path, not just the base. The five MOZA bases, from $299 to $899, share one wheel family. The Initium steps up to 8 N·m with the $89 Boost Kit.
- For shared rigs, check the stop. Asetek’s Torque OFF box, the T818’s force-feedback button, or MOZA’s E-stop port; hands-off protection on the R12 V2, R16 Ultra and R21 Ultra. Thrustmaster rates the T818 for home use, 21 and up.
Where Cube Controls fits: The VNM x Cube Controls bases, made by VNM Simulation: 18, 25 or 32 N·m max with Cube Controls’ Direct Drive Hub preinstalled, so Cube Controls wheels bolt straight on. PC only.
How torque is rated. 12 N·m peak is not the same as 10 N·m constant. More torque is headroom, not a setting you must run.
- MOZA R9 V3: 9 N·m peak
- MOZA R12 V2: 12 N·m peak
- MOZA R16 Ultra: 16 N·m sustained
- MOZA R21 Ultra: 21 N·m sustained
- MOZA R25 Ultra: 25 N·m sustained, measures its own output torque
- Asetek Initium Wheelbase (US): 5.5 N·m max, 8 N·m with the Boost Kit
- Asetek Forte Wheelbase: 18 N·m peak/holding, held for up to 40 s
- Asetek Invicta Wheelbase: 27 N·m peak/holding, held for up to 40 s
- Thrustmaster T598 Servo Base: 5 N·m constant, short peaks to 10 N·m
- Thrustmaster T818 Black Edition: 10 N·m constant
- VNM x Cube Controls Direct Drive Elite: 18 N·m max
- VNM x Cube Controls Direct Drive Supreme: 25 N·m max
- VNM x Cube Controls Direct Drive Xtreme: 32 N·m max
How these features work (1)
Stopping the force. How each product cuts the force, for shared rigs and first-time drivers.
- Torque OFF box in the box: Asetek Forte and Invicta.
- Force-feedback off button on the base: Thrustmaster T818.
- Start/Stop torque button on the wheel: Asetek Initium wheel.
- E-stop port on every MOZA base, for the MOZA E-Stop switch.
- MOZA E-Stop: cuts the force while pressed (USB or DASH port), or all power (E-STOP port).
- Hands-Off Protection on the R12 V2, R16 Ultra and R21 Ultra: centers the wheel and damps oscillation when you let go.
- MOZA HMA150: built-in E-stop; it lowers slowly on power loss.
- EMC stop button in the box: VNM x Cube Controls bases.
VNM x Cube Controls Direct Drive Elite
18 N·m Direct Drive Wheelbase by VNM Simulation
QuotedVNM Simulation’s Elite, sold by Cube Controls with its Direct Drive Hub preinstalled: 18 N·m max, a 23-bit absolute encoder and telemetry force feedback (experimental). Fit on the Core and Grand is confirmed in your quote.
Specs
- Torque
- 18 N·m max
- Motor
- Customized industrial servo, 5 pole pairs
- Encoder
- Absolute, 23-bit (8,388,608 CPR)
- Controller
- Integrated, single-core 480 MHz MCU
- Force feedback
- Strength for 11 game effects and 4 user effects; telemetry force feedback for AC, ACC, iRacing, rFactor 2 and Le Mans Ultimate (experimental)
- Hub
- Cube Controls Direct Drive Hub, preinstalled: 70 mm, in purple, black, red or blue
- Mounting
- Front, side or bottom, M8 bolts (VNM’s manual)
- Weight
- 13.3 kg (VNM’s manual)
- Power supply
- 360 W power supply (VNM’s manual); US power cord confirmed in your quote
- In the box
- Base, power adapter, USB A-to-B and A-to-C cables, EMC stop button, Direct Drive Hub
- Platforms
- PC
What sets it apart
- 18 N·m max from an industrial servo, with a 23-bit absolute encoder (8,388,608 counts per turn).
- Cube Controls’ Direct Drive Hub comes installed: any wheel with a 70 mm hub bolts on, Cube Controls wheels with no adapter.
- Telemetry force feedback for AC, ACC, iRacing, rFactor 2 and Le Mans Ultimate, labeled experimental by Cube Controls.
- An EMC stop button in the box; strength adjustable for 11 game effects and 4 user effects.
Good to know: Made by VNM Simulation; PC only. VNM’s manual: intended for adults; keep children under 15 away, and never let them use high-torque mode.
VNM x Cube Controls Direct Drive Supreme
25 N·m Direct Drive Wheelbase by VNM Simulation
QuotedVNM Simulation’s Supreme, sold by Cube Controls with its Direct Drive Hub preinstalled: 25 N·m max, a 23-bit absolute encoder and telemetry force feedback (experimental). VNM designs it for professional use only, for adults. Fit on the Core and Grand is confirmed in your quote.
Specs
- Torque
- 25 N·m max
- Motor
- Customized industrial servo, 5 pole pairs
- Encoder
- Absolute, 23-bit (8,388,608 CPR)
- Controller
- Integrated, single-core 480 MHz MCU
- Force feedback
- Strength for 11 game effects and 4 user effects; telemetry force feedback for AC, ACC, iRacing, rFactor 2 and Le Mans Ultimate (experimental)
- Hub
- Cube Controls Direct Drive Hub, preinstalled: 70 mm, in purple, black, red or blue
- Mounting
- Front, side or bottom, M8 bolts (VNM’s manual)
- Weight
- 15.7 kg (VNM’s manual)
- Power supply
- 480 W power supply (VNM’s manual); US power cord confirmed in your quote
- In the box
- Base, power adapter, USB A-to-B and A-to-C cables, EMC stop button, Direct Drive Hub
- Platforms
- PC
What sets it apart
- 25 N·m max from an industrial servo, with a 23-bit absolute encoder (8,388,608 counts per turn).
- Cube Controls’ Direct Drive Hub comes installed: any wheel with a 70 mm hub bolts on, Cube Controls wheels with no adapter.
- Telemetry force feedback for AC, ACC, iRacing, rFactor 2 and Le Mans Ultimate, labeled experimental by Cube Controls.
- An EMC stop button in the box; strength adjustable for 11 game effects and 4 user effects.
Good to know: Made by VNM Simulation; PC only. VNM: professional use only, for adults; no use by children under 15.
VNM x Cube Controls Direct Drive Xtreme
32 N·m Direct Drive Wheelbase by VNM Simulation
QuotedVNM Simulation’s Xtreme, sold by Cube Controls with its Direct Drive Hub preinstalled: 32 N·m max, a 23-bit absolute encoder and telemetry force feedback (experimental). VNM designs it for professional use only, for adults. It mounts from the front only: we confirm the bracket for your Core or Grand in your quote.
Specs
- Torque
- 32 N·m max
- Motor
- Customized industrial servo, 5 pole pairs
- Encoder
- Absolute, 23-bit (8,388,608 CPR)
- Controller
- Integrated, single-core 480 MHz MCU
- Force feedback
- Strength for 11 game effects and 4 user effects; telemetry force feedback for AC, ACC, iRacing, rFactor 2 and Le Mans Ultimate (experimental)
- Hub
- Cube Controls Direct Drive Hub, preinstalled: 70 mm, in purple, black, red or blue
- Mounting
- Front only: 4 × M8 on a 145 mm circle (VNM’s manual); we confirm the bracket for your chassis
- Weight
- 16 kg (VNM’s manual)
- Power supply
- 480 W power supply (VNM’s manual); US power cord confirmed in your quote
- In the box
- Base, power adapter, USB A-to-B and A-to-C cables, EMC stop button, Direct Drive Hub
- Platforms
- PC
What sets it apart
- 32 N·m max: the highest torque of any wheelbase we list.
- Industrial servo with a 23-bit absolute encoder (8,388,608 counts per turn).
- Cube Controls’ Direct Drive Hub comes installed: any wheel with a 70 mm hub bolts on, Cube Controls wheels with no adapter.
- Telemetry force feedback for AC, ACC, iRacing, rFactor 2 and Le Mans Ultimate, labeled experimental by Cube Controls.
Good to know: Front mount only (4 × M8): we confirm the bracket in your quote. VNM: professional use only, for adults; no use by children under 15.
Pedals
The SP01 Core: a 200 kg load-cell brake and a Hall-effect throttle with the electronics built into the pedals. We confirm the mounting on your Core or Grand in your quote.
How to choose
- What do you play on? PlayStation: the Raceline Pedals III LC through the T598. Xbox: MOZA CRP2 through a MOZA base, depending on the game. PC: all of them; Asetek, Heusinkveld, the mBooster and the Cube Controls SP01 Core are PC only.
- Compare brake force at the pedal, not the load-cell size. Heusinkveld Sprint: up to 65 kg (120 kg cell). Heusinkveld Ultimate+: up to 140 kg (200 kg cell). Thrustmaster: 25–100 kg. Asetek Forte and Invicta: up to about 180 kg. MOZA states the cell range (SRP2 0–100 kg, CRP2 0–200 kg), not the force at the pedal.
- Pick the brake feel. Load cell with springs or elastomers: MOZA, Thrustmaster. Two-stage with a hard wall: Asetek Forte. A spring, then rubbers that firm up: Heusinkveld Sprint. Real hydraulic pressure: Asetek Invicta. Hydraulic damping: Heusinkveld Ultimate+. Feel set in software: MOZA mBooster.
- Want to feel ABS in your foot? The PHF kit ($39) vibrates SRP2 or CRP2 pedals; the mBooster moves the pedal itself. Nothing else here does this.
- Clutch and layout. Three pedals in the box: Thrustmaster, Sprint 3, Ultimate+ 3. Add a clutch later: MOZA, Asetek S-Series and T.H.O.R.P. II, Heusinkveld. Separate pedal units: Asetek S-Series. Hanging pedals: the CRP2 inversion kit. Upgrade later: the Initium kits.
Where Cube Controls fits: The SP01 Core: a 200 kg load-cell brake and a Hall-effect throttle, electronics built in. Two pedals, PC only; we confirm the mounting in your quote.
Force and travel. A position sensor reads how far the pedal moves; a load cell reads how hard you press. Your leg repeats a pressure far better than a position.
- Reads how hard you press. Your leg repeats a pressure far better than a position.
- Sensor: 200 kg load cell.
- Illustrative shape.
Cube Controls SP01 Core
Load Cell Pedals (Throttle + Brake)
QuotedThrottle and brake machined from single blocks of aluminum, with a 200 kg load cell on the brake, a 16-bit Hall-effect throttle and the electronics built in: one USB-C cable to the PC. We confirm the mounting on your Core or Grand in your quote.
Specs
- Pedals
- Throttle and brake (no clutch)
- Brake
- 200 kg precision load cell, 16-bit; springs and elastomers, adjustable preload
- Throttle
- 16-bit Hall-effect sensor; throw and spring preload adjustable
- Structure
- CNC-machined aluminum main structure from a single block; press-fit ball bearings
- Adjustment
- Pedal body angle in 5° steps with the brackets
- Electronics
- Built in; one USB-C cable to the PC
- Software
- Cube Pedal UI: calibration and curves per pedal
- Mounting
- M8 bolts and nuts in the box; T-nuts or a pedal plate for your chassis confirmed in your quote
- Platforms
- PC
What sets it apart
- A 200 kg precision load cell on the brake, 16-bit; a 16-bit Hall-effect sensor on the throttle.
- Main structure CNC-machined from a single block of aluminum, with press-fit ball bearings.
- Electronics built into the pedals: one USB-C cable to the PC, no control box.
- Pedal angle in 5° steps; brake feel set with springs and elastomers, with more options in the SP01 Performance Kit.
Good to know: Two pedals, no clutch, PC only. We confirm the mounting on your Core or Grand (T-nuts or a plate) in your quote.
Cube Controls products, including the VNM x Cube Controls bases and bundles, are priced in your quote: we confirm the US price, the version and the lead time with your build. Taxes and shipping not included. Ordering is by quote: order any item, or list the item names in the contact form.
By quote
VNM x Cube Controls bundles.
Cube Controls sells each VNM x Cube Controls base with one of its wheels: the base and the wheel, the base, the wheel and the QRX quick release, or the base, the wheel, the QRX and the SP01 Core pedals. Pick a wheel and build it on the base you want; we price the bundle in your quote.
Pick a wheel
- Cube Controls Mercedes-AMG GT Edition SIM WheelBuild it →
- Cube Controls CSX-3 Color EditionBuild it →
- Cube Controls F-PRO Color EditionBuild it →
- Cube Controls GT-X2Build it →
- Cube Controls GT PRO V2Build it →
Pick a kit
- Base and wheel
- + QRX quick release
- + QRX and SP01 Core pedals
Every base (Elite, Supreme or Xtreme) and every hub color. The F-PRO and CSX-3 bundles also come with the Classic versions: ask in your quote notes.
QuotedBy quote
Accessories and upgrades.
Order any of these with your rig: add them in the configurator or list the item names in the contact form.
For the wheels
1 item
| Item | Price |
|---|---|
| Universal Main Hub (black, red or blue), for a wheel bought without its hub | Quoted |
For the VNM x Cube Controls bases
1 item
| Item | Price |
|---|---|
| QRX Full Set quick release with a USB connector: Magnetic, as in Cube Controls’ bundles (Classic on request, confirmed in your quote) | Quoted |
For the SP01 Core
1 item
| Item | Price |
|---|---|
| SP01 Performance Kit: springs, elastomers, washers, tuned cups | Quoted |
Returns and warranty
Bought it from SimWerk? Contact us first.
No refunds, exchanges or store credit for a change of mind. If a Cube Controls product you bought from us has a quality problem, contact us first. We'll repair, replace or refund it as the law or the applicable warranty requires.
Ask us before you order how Cube Controls' warranty applies to items bought through SimWerk. Quality problems are handled under this policy either way.
Questions
Do Asetek Racing, Heusinkveld, Thrustmaster and Cube Controls parts fit SimWerk rigs?
Yes. MOZA, Asetek Racing, Heusinkveld and Thrustmaster hardware and the Cube Controls wheels fit both the SimWerk Core and the SimWerk Grand. For the VNM x Cube Controls wheelbases and the Cube Controls SP01 Core pedals, we confirm the mounting for your chassis in your quote.
How do I order?
Ordering is by quote. Build your rig in the configurator and send it to us, or send the contact form or email info@simwerkus.com with the items you want. We'll confirm lead time and a final quote. Our Returns & Warranty policy applies to every order.
What is your return policy?
We don't give refunds, exchanges or store credit for a change of mind: once your order is delivered, all sales are final except for quality problems. If anything you buy from us arrives damaged, is defective or doesn't work as it should, or isn't what your quote lists, contact us. We'll repair, replace or refund it as the law or the applicable warranty requires. This covers everything we sell, including hardware from other brands. The full policy is under Returns & Warranty on our Support page.
Which wheelbases do Cube Controls wheels fit?
In our configurator, MOZA and Asetek Racing bases and the VNM x Cube Controls bases. Cube Controls wheels bolt to a formula-style quick release (3 bolts, 70 mm PCD): on MOZA and Asetek Racing bases we add the MOZA 70 mm QR Adapter or the Asetek Universal QR Adapter to your build; on a VNM x Cube Controls base they bolt straight to its preinstalled Direct Drive Hub. They aren't offered on Thrustmaster bases. Their buttons connect to your PC with the wheel's own cable, or by Bluetooth on the wheels that have it, so they're for PC. We confirm the hub version and bolt fit in your quote.
What are the VNM x Cube Controls wheelbases?
Direct drive wheelbases made by VNM Simulation and sold by Cube Controls with its Direct Drive Hub preinstalled: the Elite (18 N·m), the Supreme (25 N·m) and the Xtreme (32 N·m), all maximum torque. Cube Controls wheels bolt straight to the hub. They run on PC. We price them in your quote, alone or as Cube Controls' bundles with a wheel, the QRX quick release and the SP01 Core pedals, and confirm the mounting on your Core or Grand; the Xtreme mounts from the front only.
What if a Cube Controls product I bought from SimWerk has a problem?
Contact us first: email info@simwerkus.com or use the contact form. We'll repair, replace or refund it as the law or the applicable warranty requires. Ask us before you order how Cube Controls' warranty applies to items bought through SimWerk. As with everything we sell, we don't take returns for a change of mind.
What do “Ferrari licensed” and “Mercedes-AMG edition” mean on a wheel?
They describe the product. A Ferrari licensed wheel is officially licensed by Ferrari, as its maker Thrustmaster states. The Cube Controls Mercedes-AMG GT Edition was developed in collaboration with Mercedes-AMG and carries a genuine Mercedes-Benz badge. Our 3D models show those marks where the real wheel has them. SimWerk itself isn't licensed by Ferrari or Mercedes-Benz.
Spec it on your rig.
Put a Cube Controls wheel on a SimWerk build in 3D. Ordering is by quote.
